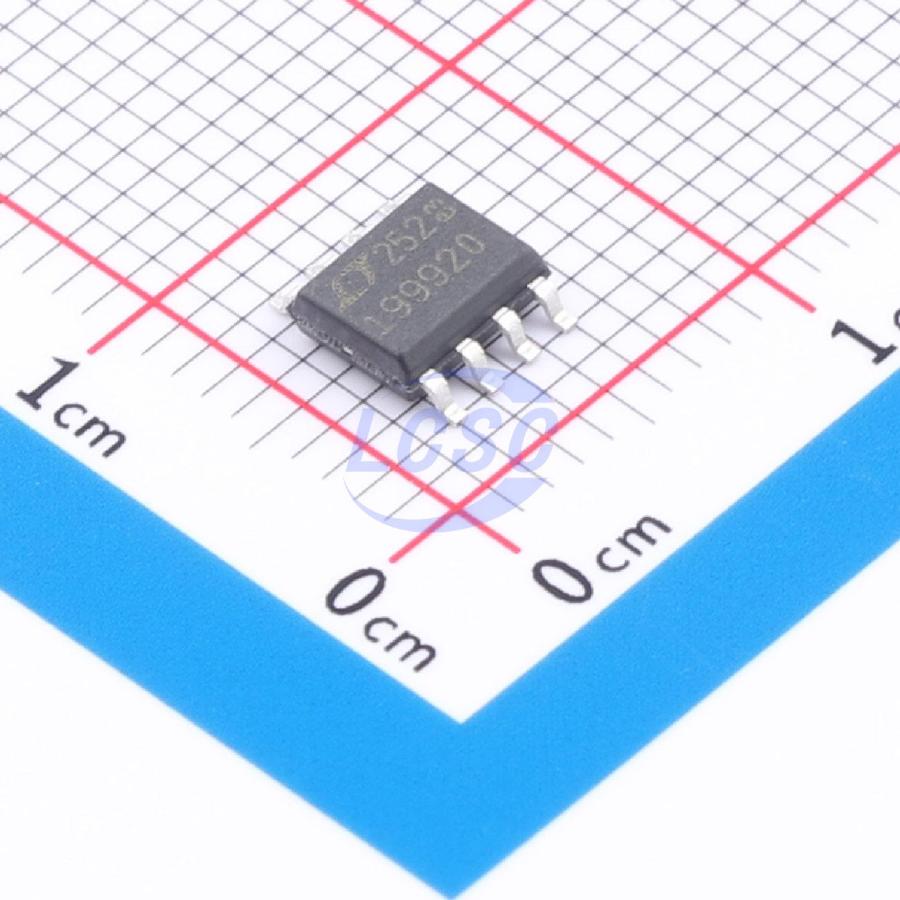

LT1999HS8-20#PBF ADI

LT1999HS8-20#PBF

31mA 1 1.5mV -5V~80V 3V/us 105dB 137.5uA 1.55mA 20V/V SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

Manufacturer: ADI
Manufacturer part #: LT1999HS8-20#PBF
Store part #: C665989
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

14 in stock

#C665989

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
1+	₹1,041.07	₹1,041.07
10+	₹1,016.74	₹10,167.40
30+	₹1,000.44	₹30,013.20
100+	₹984.14	₹98,414.00

Quantity (min 1)

1 × ₹1,041.07

₹1,041.07

excl. GST

₹1,228.46 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 100 per tube

LT1999HS8-20#PBF

₹1,041.07 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 31mA
Number of Channels: 1
Vos - Input Offset Voltage: 1.5mV
Vcm - Common Mode Voltage: -5V~80V
Slew Rate: 3V/us
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 105dB
Ib - Input Bias Current: 137.5uA
Input Offset Voltage Drift(Vos TC): 5uV/℃
-3dB Bandwidth: 2MHz
Quiescent Current: 1.55mA
Gain: 20V/V
Features: Enable/shutdown function;External shunt;Analog output interface;Bidirectional detection
Input Voltage Noise Density: 97nV/√Hz@10kHz
Single Supply: 4.5V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 100 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.04 g
