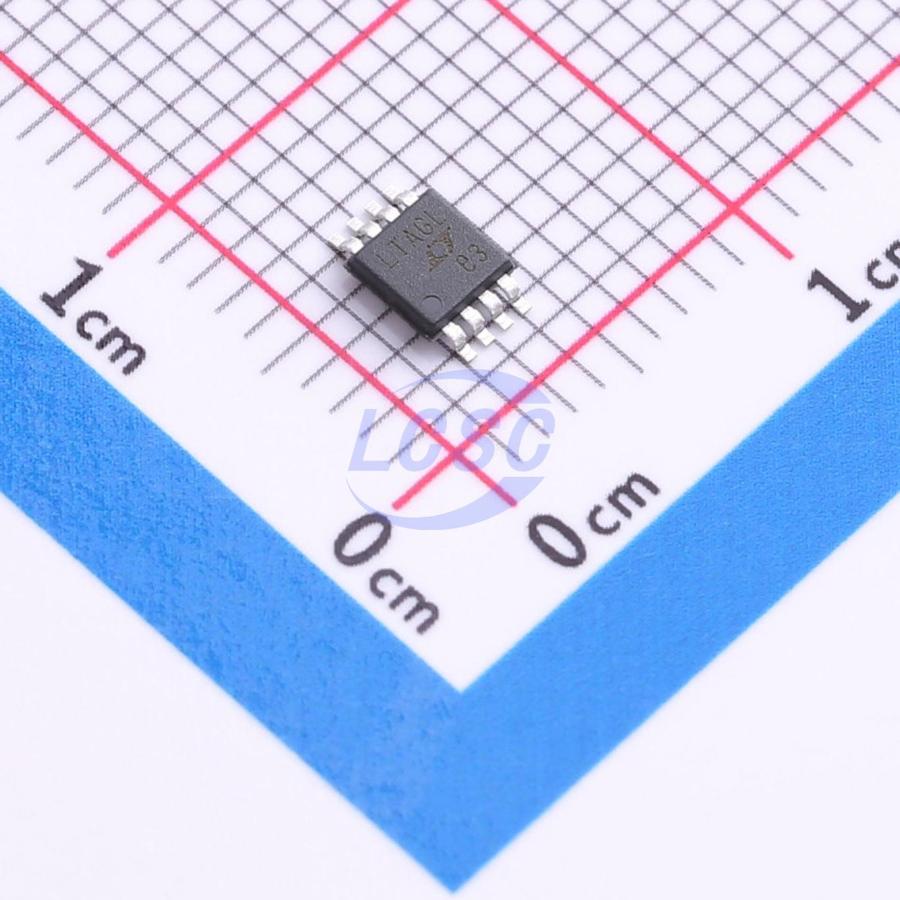

LT3020EMS8#TRPBF

The LT3020 is a very low dropout voltage (VLDOTM) linear regulator that operates from input supplies down to 0.9V. This device supplies 100mA of output current with a typical dropout voltage of 150mV. The LT3020 is ideal for low input voltage to low output voltage applications, providing comparable electrical efficiency to that of a switching regulator. The LT3020 regulator optimizes stability and transient response with low ESR, ceramic output capacitors as small as 2.2μF. Other LT3020 features include 0% typical line regulation and 0.2% typical load regulation. In shutdown, quiescent current drops to 3μA. Internal protection circuitry includes reverse-battery protection, current limiting, thermal limiting with hysteresis, and reverse-current protection. The LT3020 is available as an adjustable output device with an output range down to the 200mV reference. Three fixed output voltages, 1.2V, 1.5V and 1.8V, are also available. The LT3020 regulator is available in the low profile (0.75mm) 8-lead (3mm×3mm) DFN package with Exposed Pad and the 8-lead MSOP package.

Applications

• Low Current Regulators
• Battery-Powered Systems
• Cellular Phones
• Pagers
• Wireless Modems

Key features

• VIN Range: 0.9V to 10V
• Minimum Input Voltage: 0.9V
• Dropout Voltage: 150mV Typical
• Output Current: 100mA
• Adjustable Output (VREF = VOUT(MIN) = 200mV)
• Fixed Output Voltages: 1.2V, 1.5V, 1.8V
• Stable with Low ESR, Ceramic Output Capacitors (2.2μF Minimum)
• 0.2% Load Regulation from 1mA to 100mA
• Quiescent Current: 120μA (Typ)
• 3μA Typical Quiescent Current in Shutdown
• Current Limit Protection
• Reverse-Battery Protection
• No Reverse Current
• Thermal Limiting with Hysteresis
• 8-Lead DFN (3mm×3mm) and MSOP Packages
