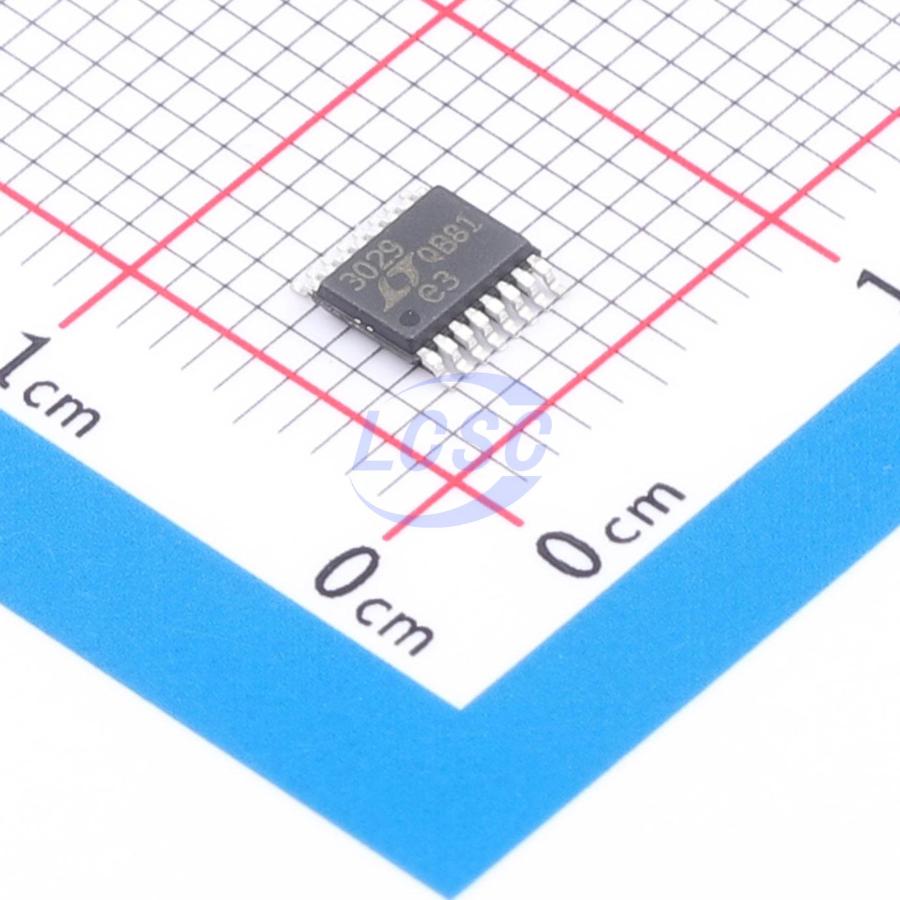

LT3029HMSE#PBF

The LT3029 is a dual, micropower, low noise, low dropout linear regulator. The device operates either with a common input supply or independent input supplies for each channel, over an input voltage range of 1.8V to 20V. Each output supplies up to 500mA of output current with a typical dropout voltage of 300mV. Quiescent current is well controlled in dropout. With an external 10nF bypass capacitor, output noise is only 20μV RMS over a 10Hz to 100kHz bandwidth. Designed for use in battery-powered systems, the low 55μA quiescent current per channel makes it an ideal choice. In shutdown, quiescent current drops to less than 1μA. Shutdown control is independent for each channel, allowing for flexible power management. The LT3029 optimizes stability and transient response with low ESR ceramic output capacitors, requiring a minimum of only 3.3μF. The regulator does not require the addition of ESR, as is common with other regulators. Internal circuitry provides reverse-battery protection, reverse-current protection, current limiting with foldback and thermal shutdown. The device is available as an adjustable output voltage device with a 1.215V reference voltage. The LT3029 is offered in the thermally enhanced 16-lead MSOP and 16-lead, low profile (4mm × 3mm × 0.75mm) DFN packages.

Applications

• General Purpose Linear Regulator
• Battery-Powered Systems
• Microprocessor Core/Logic Supplies
• Post Regulator for Switching Supplies
• Tracking/Sequencing Power Supplies

Key features

• Output Current: 500mA per Channel
• Low Dropout Voltage: 300mV
• Low Noise: 20 μV RMS (10Hz to 100kHz)
• Low Quiescent Current: 55 μA per Channel
• Wide Input Voltage Range: 1.8V to 20V (Common or Independent Input Supply)
• Adjustable Output: 1.215V Reference Voltage
• Very Low Quiescent Current in Shutdown: <1 μA per Channel
• Stable with 3.3 μF Minimum Output Capacitor
• Stable with Ceramic, Tantalum or Aluminum Electrolytic Capacitors
• Reverse-Battery and Reverse Output-to-Input Protection
• Current Limit with Foldback and Thermal Shutdown
• Tracking/Sequencing Capability: Compatible with LTC292X Power Supply Tracking ICs
• Thermally Enhanced 16-Lead MSOP and 16-Lead (4mm × 3mm) DFN Packages
