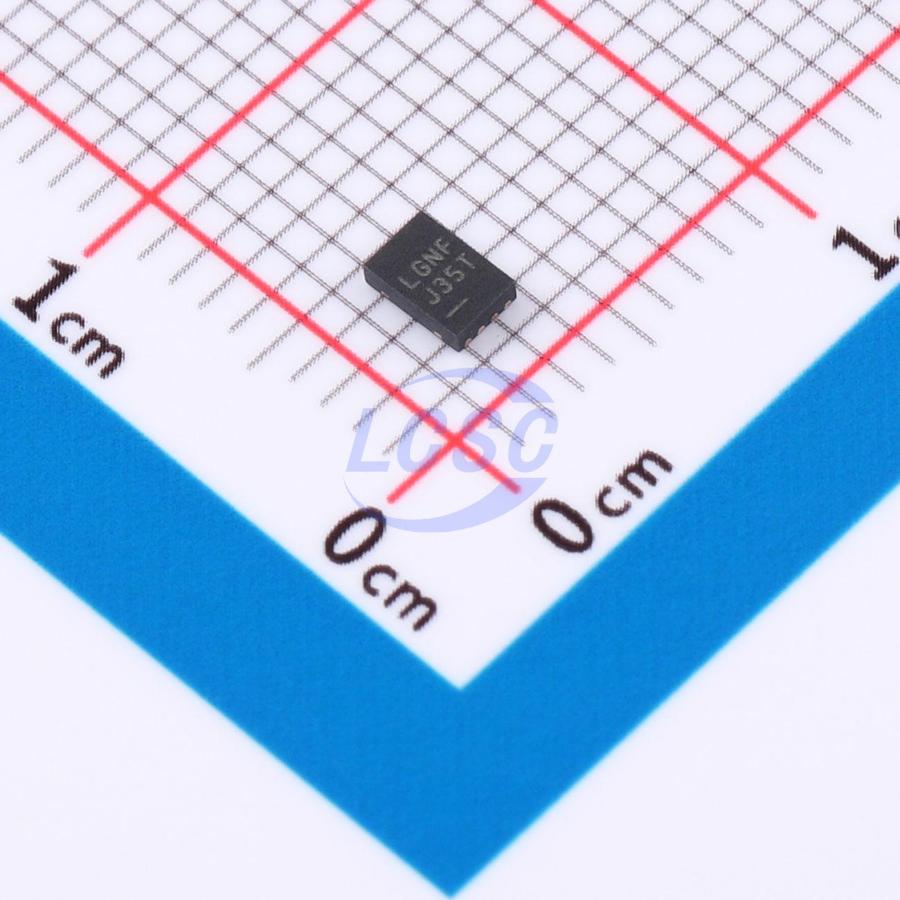

LT3061EDCB#TRMPBF

The LT3061 is a micropower, low dropout (LDO) linear regulator that operates over a 1.6 to 45V supply range and is available in a series of fixed output and adjustable versions. The device supplies 100mA of output current with a typical dropout voltage of 250mV. A single external capacitor provides programmable low noise reference performance and output soft-start functionality. The LT3061’s quiescent current is merely 45µA and provides fast transient response with a minimum 3.3µF output capacitor. In shutdown, quiescent current is less than 3µA and the reference soft start capacitor is reset. The LT3061 features an NMOS pull-down that discharges the output when SHDN or IN is driven low. Internal protection circuitry includes reverse-battery protection, reverse-current protection, current limit with foldback and thermal shutdown. The LT3061 is available in fixed output voltages of 3.3V and 5V, and as an adjustable device with an output voltage range from the 600mV reference up to 19V. The LT3061 is offered in the thermally enhanced 8-lead 2mm x 3mm DFN and MSOP packages.

Applications

• Battery Powered Systems
• Automotive Power Supplies
• Industrial Power Supplies
• Portable Instruments

Key features

• Input Voltage Range: 1.6V to 45V
• Output Current: 100mA
• Output Discharge
• Quiescent Current: 45µA
• Dropout Voltage: 250mV
• Low Noise: 30µVRMS (10Hz to 100kHz)
• Adjustable Output (VREF = 600mV)
• Fixed Output Voltages: 3.3V, 5V
• Output Tolerance: ±2% Over Load, Line, and Temperature
• Single Capacitor Soft-Starts Reference and Lowers Output Noise
• Shutdown Current: <3µA
• Reverse Battery Protection
• Current Limit Foldback and Thermal Limit Protection
• 8-Lead 2mm × 3mm DFN and MSOP Packages
