ADIDatasheet (PDF)

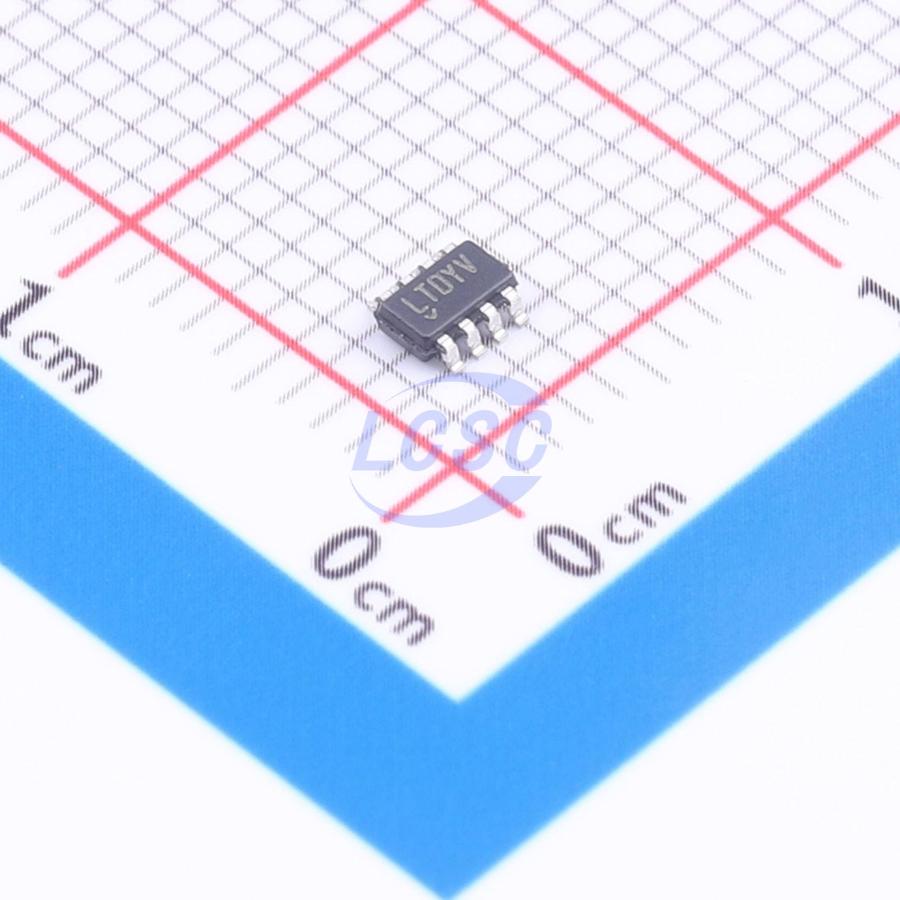

LT3082ETS8#TRMPBF
0V~38.5V Positive Adjustable TSOT-23-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TSOT-23-8ROHS3 CompliantActive
200mA Single Resistor Low Dropout Linear Regulator
- Manufacturer
- ADI
- Manufacturer part #
- LT3082ETS8#TRMPBF
- Store part #
- C580031
- Package / case
- TSOT-23-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C580031
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,005.16 | ₹1,005.16 |
| 10+ | ₹982.61 | ₹9,826.10 |
| 30+ | ₹967.64 | ₹29,029.20 |
| 100+ | ₹952.69 | ₹95,269.00 |
1 × ₹1,005.16
₹1,005.16
excl. GST
₹1,186.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per reel
LT3082ETS8#TRMPBF
₹1,005.16 for 1 + GST
Specifications
- Output Voltage
- 0V~38.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 500uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 40V
- Features
- Reverse polarity voltage protection;Reverse-polarity current protection;Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.56 g
Overview
The ±Γ⊖3082 is a 200mA low dropout linear regulator that can be paralleled to increase output current or spread heat in surface mounted boards. Architected as a precision current source and voltage follower, this regulator benefits many applications requiring high current, adjustability to zero and no heat sink. The LT3082 withstands reverse input voltages and reverse output-to-input voltages without reverse-current flow.
Applications
- All-Surface Mount Power Supply Post Regulator for Switching Supplies
- Low Parts Count Variable Voltage Supply
- Low Output Voltage Supply
- Battery Powered Regulator
Key features
- Outputs May Be Paralleled for Higher Output Current or Heat Spreading
- Maximum Output Current: 200mA
- Wide Input Voltage Range: 1.2V to 40V
- Output Adjustable to 0V
- Stable with Minimum 2.2μF Ceramic Capacitors
- Single Resistor Sets Output Voltage
- Initial Set Pin Current Accuracy: 1%
- Low Output Noise: 33μVRMS (10Hz to 100kHz)
- Reverse-Battery Protection
- Reverse-Current Protection
- <1mV Load Regulation Typical
- <0.001 %/V Line Regulation Typical
- Current Limit and Thermal Shutdown Protection
- Available in 8-Lead SOT-23, 3-Lead SOT-223 and 8-Lead 3mm × 3mm DFN Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LT3082ETS8#TRPBF#C670340ADI · SOT-23-8 | ADI | SOT-23-8 | On request | ₹646.22 · 0 in stock | View |
| LT3082ITS8#TRPBF#C670346ADI · SOT-23-8 | ADI | SOT-23-8 | On request | ₹384.11 · 0 in stock | View | |
| LT3082ITS8#TRMPBF#C670345ADI · TSOT-23-8L | ADI | TSOT-23-8L | On request | ₹385.72 · 0 in stock | View | |
