ADIDatasheet (PDF)

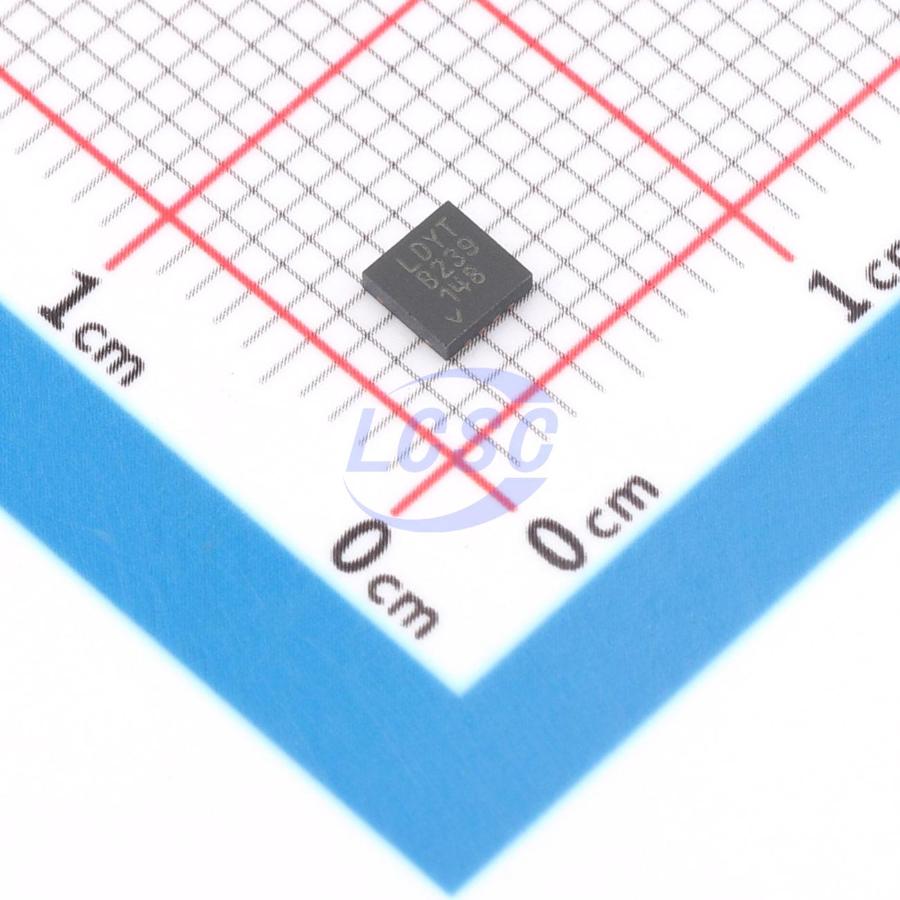

LT3082IDD#TRPBF
0V~38.5V Positive Adjustable DFN-8-EP(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN-8-EP(3x3)ROHS3 CompliantActive
200mA Single Resistor Low Dropout Linear Regulator
- Manufacturer
- ADI
- Manufacturer part #
- LT3082IDD#TRPBF
- Store part #
- C670342
- Package / case
- DFN-8-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C670342
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹796.83 | ₹796.83 |
| 10+ | ₹681.89 | ₹6,818.90 |
| 30+ | ₹613.65 | ₹18,409.50 |
| 100+ | ₹544.55 | ₹54,455.00 |
| 500+ | ₹512.82 | ₹2,56,410.00 |
| 1,000+ | ₹498.48 | ₹4,98,480.00 |
1 × ₹796.83
₹796.83
excl. GST
₹940.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LT3082IDD#TRPBF
₹796.83 for 1 + GST
Specifications
- Output Voltage
- 0V~38.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 40V
- Features
- Reverse polarity voltage protection;Reverse-polarity current protection;Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
The ±Γ⊖3082 is a 200mA low dropout linear regulator that can be paralleled to increase output current or spread heat in surface mounted boards. Architected as a precision current source and voltage follower, this regulator benefits many applications requiring high current, adjustability to zero and no heat sink. The LT3082 withstands reverse input voltages and reverse output-to-input voltages without reverse-current flow.
Applications
- All-Surface Mount Power Supply Post Regulator for Switching Supplies
- Low Parts Count Variable Voltage Supply
- Low Output Voltage Supply
- Battery Powered Regulator
Key features
- Outputs May Be Paralleled for Higher Output Current or Heat Spreading
- Maximum Output Current: 200mA
- Wide Input Voltage Range: 1.2V to 40V
- Output Adjustable to 0V
- Stable with Minimum 2.2μF Ceramic Capacitors
- Single Resistor Sets Output Voltage
- Initial Set Pin Current Accuracy: 1%
- Low Output Noise: 33μVRMS (10Hz to 100kHz)
- Reverse-Battery Protection
- Reverse-Current Protection
- <1mV Load Regulation Typical
- <0.001 %/V Line Regulation Typical
- Current Limit and Thermal Shutdown Protection
- Available in 8-Lead SOT-23, 3-Lead SOT-223 and 8-Lead 3mm × 3mm DFN Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| LT3082EDD#TRPBF#C670337ADI · DFN-8-EP(3x3) | ADI | DFN-8-EP(3x3) | 40 | ₹1,796.75 · 40 in stock | View | |
 | LT3082EDD#PBF#C117345ADI · DFN-8(3x3) | ADI | DFN-8(3x3) | On request | ₹835.58 · 0 in stock | View |
 | LT3082IDD#PBF#C670341ADI · DFN-8-EP(3x3) | ADI | DFN-8-EP(3x3) | On request | ₹547.97 · 0 in stock | View |
