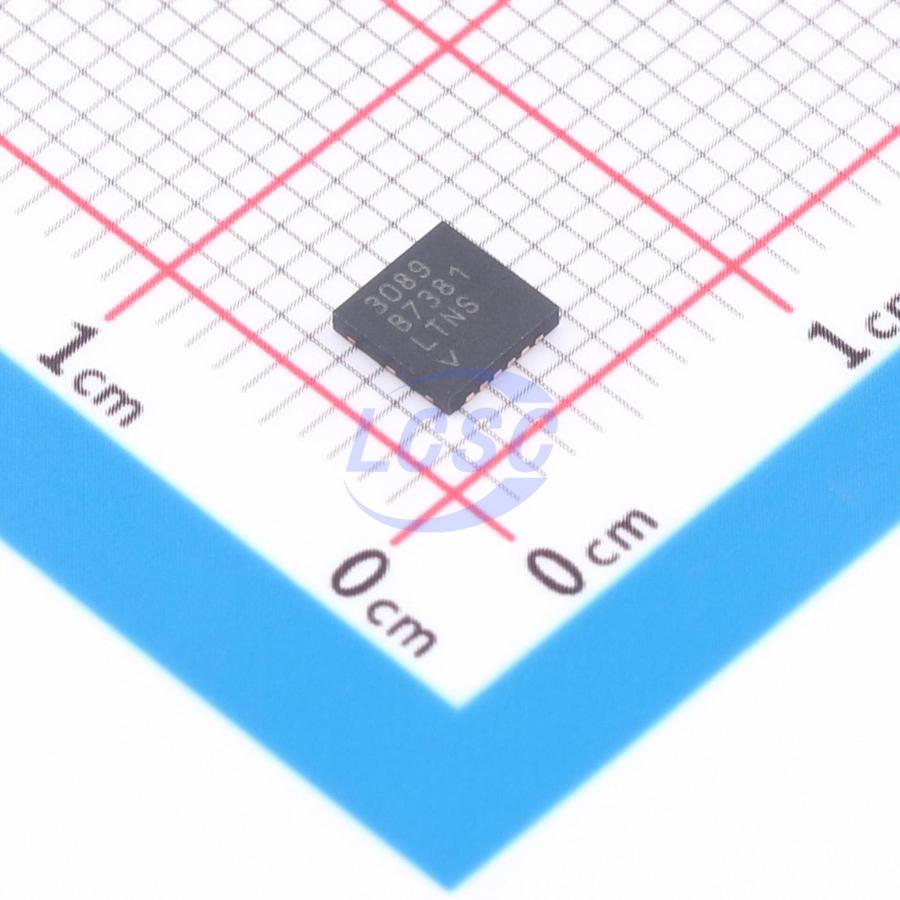

LT3089EDF#PBF

The ±3089 is an 800mA low dropout linear regulator designed for rugged industrial applications. Key features of the IC are the extended safe operating area (SOA), output current monitor, temperature monitor and programmable current limit. The LT3089 can be paralleled for higher output current or heat spreading. The device withstands reverse input and reverse output-to-input voltages without reverse current flow. The LT3089’s precision 50µA reference current source allows a single resistor to program output voltage to any level between zero and 34.5V. The current reference architecture enables load regulation to be independent of output voltage. The LT3089 is stable with or without input and output capacitors. The output current monitor (l₀UT/5000) and die junction temperature output (1µA/°C) provide system monitoring and debug capability. In addition, a single resistor programs current limit.

Applications

• All Surface Mount Power Supply
• Rugged Industrial Power Supply
• Post Regulator for Switching Supplies
• Low Output Voltage Supply
• Intrinsic Safety Applications

Key features

• Extended Safe Operating Area
• Maximum Output Current: 800mA
• Stable with or without Input/Output Capacitors
• Wide Input Voltage Range: 1.2V to 36V
• Single Resistor Sets Output Voltage
• Output Current Monitor: |MON| = |OUT|/5000
• Junction Temperature Monitor: 1µA/°C
• Output Adjustable to 0V
• 50µA SET Pin Current: 1% Initial Accuracy
• Output Voltage Noise: 27µVRMS
• Parallel Multiple Devices for Higher Current or Heat Spreading
• Programmable Current Limit
• Reverse-Battery and Reverse-Current Protection
• <1mV Load Regulation Typical Independent of VOUT
• <0.001 %/V Line Regulation Typical
• Available in Thermally-Enhanced 12-Lead 4mm × 4mm DFN, 16-Lead TSSOP, and 7-Lead DD-Pak
