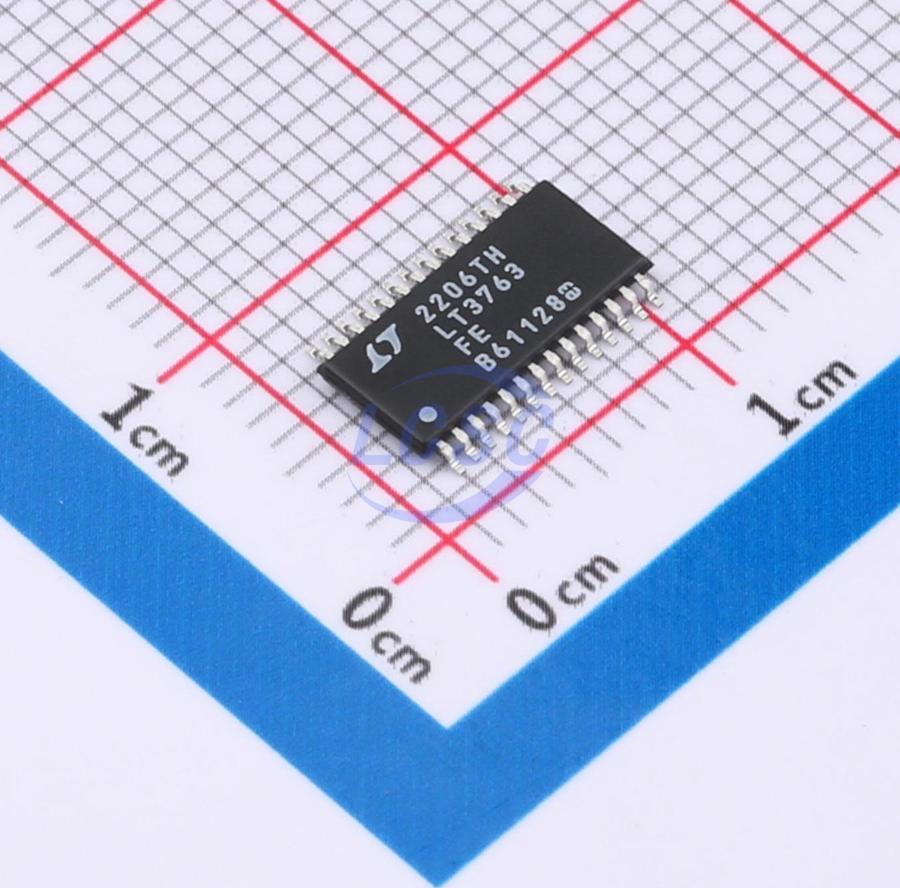

LT3763EFE#TRPBF
20A 200kHz~1MHz PWM 1 DC-DC 55V 6V~60V TSSOP-28-EP LED Drivers RoHS
60V High Current Step-Down LED Driver Controller
- Manufacturer
- ADI
- Manufacturer part #
- LT3763EFE#TRPBF
- Store part #
- C671525
- Package / case
- TSSOP-28-EP
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,259 in stock
#C671525
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,494.50 | ₹1,494.50 |
| 10+ | ₹1,318.45 | ₹13,184.50 |
| 30+ | ₹1,157.80 | ₹34,734.00 |
| 100+ | ₹1,068.03 | ₹1,06,803.00 |
1 × ₹1,494.50
₹1,494.50
excl. GST
₹1,763.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
LT3763EFE#TRPBF
₹1,494.50 for 1 + GST
Specifications
- Output Current
- 20A
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 200kHz~1MHz
- Dimming
- PWM
- Number of Channels
- 1
- Type
- DC-DC
- Features
- Over Voltage Protection;Built-in soft-start;Short Circuit Protection;LED open-circuit protection;Over-Temperature Protection (OTP)
- Switch tube (built-in/external)
- External
- Output Voltage
- 55V
- Topology
- Buck
- Constant Current Accuracy
- 6%
- Voltage - Input(DC)
- 6V~60V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.201 g
Overview
The LT3763 is a fixed frequency, synchronous, step-down DC/DC controller designed to accurately regulate output currents up to 20A. The average current mode controller will maintain inductor current regulation over a wide output voltage range from 0V to 55V. Output current is set by analog voltages on the CTRL pins and an external sense resistor. Voltage regulation and overvoltage protection are set with a voltage divider from the output to the FB pin. The switching frequency is programmable from 200kHz to 1MHz through an external resistor on the RT pin or with the SYNC pin and an external clock signal. Input and output current sensing provides input current limiting and an accurate measurement of these currents. The FBIN pin is provided for applications requiring a peak power tracking function. Additional features include an accurate external reference voltage for use with the CTRL pins, an accurate UVLO/ EN pin that allows for programmable UVLO hysteresis, a PWM driver for LED applications, output voltage fault detection, and thermal shutdown.
Applications
- High Power Architectural Lighting
- Automotive Lighting
- Solar-Powered Chargers
- Laser Diodes
Key features
- Accurately Control Input and Output Current
- 3000:1 True Color PWM Dimming
- ±1.5% Voltage Regulation Accuracy
- ±f% Current Regulation Accuracy
- 6V to 60V Input Voltage Range
- Wide Output Range Up to 55V
- <2μA Shutdown Current
- Control Pin for Thermal Control of Load Current
- Input and Output Current Monitor and Limit
- Open, Short, and C/10 Fault Detection
- PWM Driver Output for LED Applications
- Thermally Enhanced 28-Lead FE Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LT3763EFE#PBF#C459912ADI · TSSOP-28-EP | ADI | TSSOP-28-EP | 197 | ₹1,848.79 · 197 in stock | View |
 | LT3763IFE#PBF#C671528ADI · TSSOP-28-EP | ADI | TSSOP-28-EP | 2 | ₹1,074.10 · 2 in stock | View |
