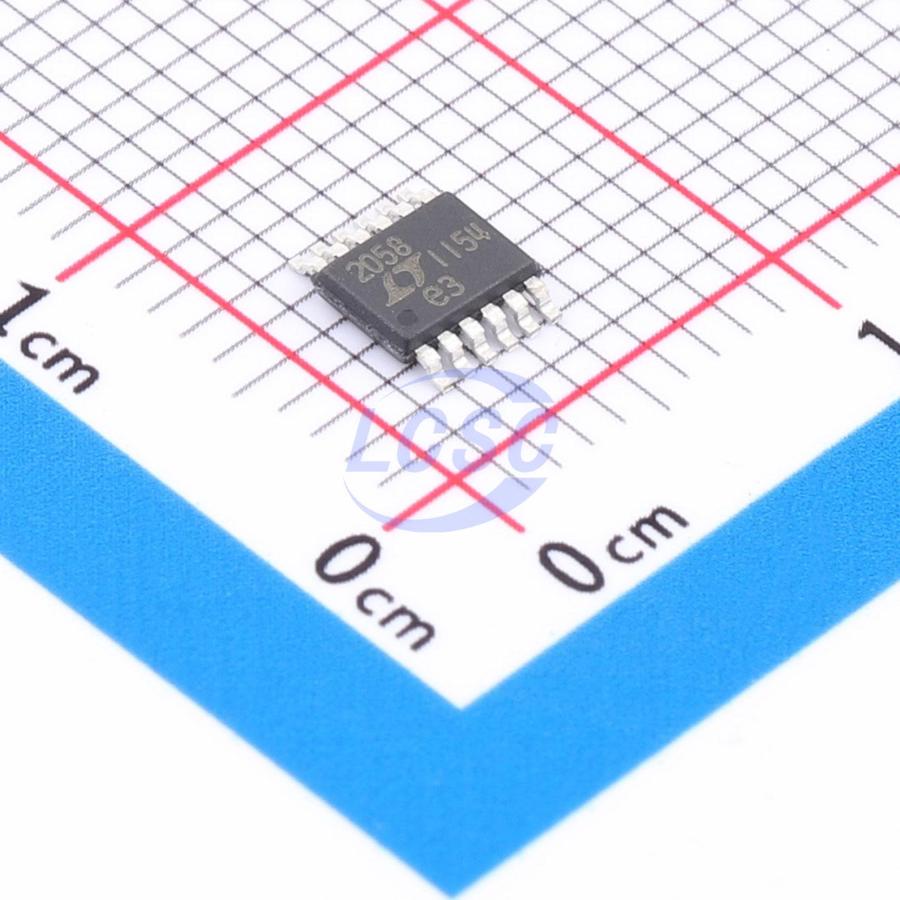

LTC2058IMSE#PBF

A dual, low noise, zero-drift operational amplifier that offers precision DC performance over a wide supply range of 4.75V to 36V. Offset voltage and 1/f noise are suppressed, allowing this amplifier to achieve a maximum offset voltage of 5μV and a DC to 10Hz input noise voltage of 200nVP-P (Typ). The self-calibrating circuitry results in low offset voltage drift with temperature, 0.025μV/°C (Max), and practically zero drift over time. The amplifier also features an excellent power supply rejection ratio (PSRR) of 150dB and a common mode rejection ratio (CMRR) of 150dB (Typ). It provides rail-to-rail output swing and an input common mode range that includes the V– rail. In addition to low offset and noise, this amplifier features a 2.5MHz (Typ) gain-bandwidth product and a 1.6V/μs (Typ) slew rate. Wide supply range, combined with low noise, low offset, and excellent PSRR and CMRR make it well suited for high dynamic-range test, measurement, and instrumentation systems.

Applications

• High Resolution Data Acquisition
• Reference Buffering
• Test and Measurement
• Electronic Scales
• Thermocouple Amplifiers
• Strain Gauges
• Low Side Current Sense
• Automotive Monitors and Control

Key features

• Supply Voltage Range: 4.75V to 36V
• Offset Voltage: 5μV (Maximum)
• Offset Voltage Drift: 0.025μV/°C (Maximum, -40°C to 125°C)
• Input Noise Voltage: 200nVP-P, DC to 10Hz (Typ), 8nV/√Hz, 1kHz (Typ)
• Input Common Mode Range: V– – 0.1V to V+ – 1.5V
• Rail-to-Rail Output
• Unity Gain Stable
• Gain Bandwidth Product: 2.5MHz (Typ)
• Slew Rate: 1.6V/μs (Typ)
• AVOL: 150dB (Typ)
• PSRR: 150dB (Typ)
• CMRR: 150dB (Typ)
• Shutdown Mode
