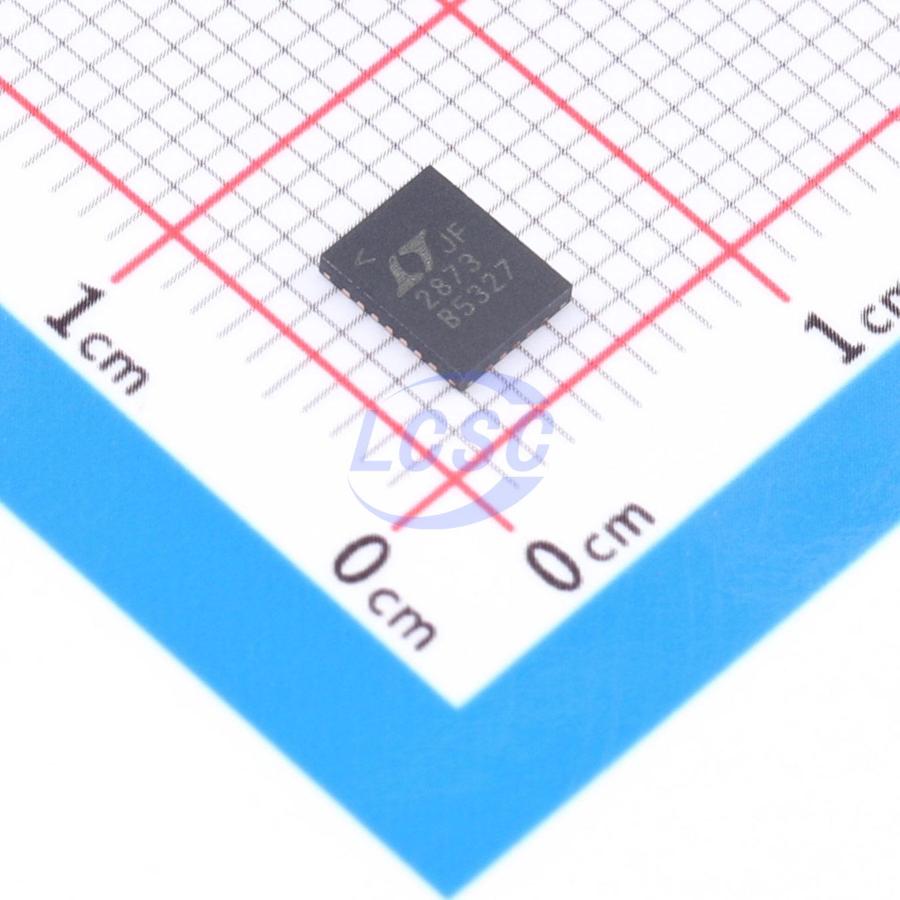

LTC2873CUFD#TRPBF

The LTC2873 is a robust pin-configurable multiprotocol transceiver that supports RS232, RS485, and RS422 protocols while operating on a single 3V to 5.5V supply. The LTC2873 can be configured as a half-duplex RS485 transceiver or as an RS232 transceiver using the same two bus pins. A pin-controlled integrated termination resistor allows for easy interface reconfiguration, eliminating external resistors and control relays. Loopback mode steers the driver inputs to the receiver outputs for diagnostic self-test. The RS485 receiver supports up to 256 nodes per bus, and features full failsafe operation for floating, shorted or terminated inputs. An integrated DC/DC boost converter uses a tiny 2mm×1.6mm inductor and one capacitor, eliminating the need for multiple supplies when driving RS232 levels.

Applications

• Software Selectable RS232/RS485/RS422 Interface
• Industrial Sensors and Actuators
• Alarm Systems
• Traffic Control and Monitoring
• Highway Signs and Jumbo Displays

Key features

• One RS485 or One RS232 Transceiver
• 3V to 5.5V Supply Voltage
• Up to 20Mbps RS485
• Slew-Controlled RS232 Operation: Selectable 1Mbps or 250kbps
• Automatic Selection of Integrated RS485 (120Ω) and RS232 (5kΩ) Termination Resistors
• High ESD: ±2kV HBM
• Logic Loopback Mode
• 1.7V to 5.5V Logic Interface
• Supports Up to 256 RS485 Nodes
• RS485 Receiver Failsafe Eliminates UART Lockup
• H-Grade Available ( -40°C to 125°C)
• Available in 24-Pin 4mm × 5mm QFN Package
