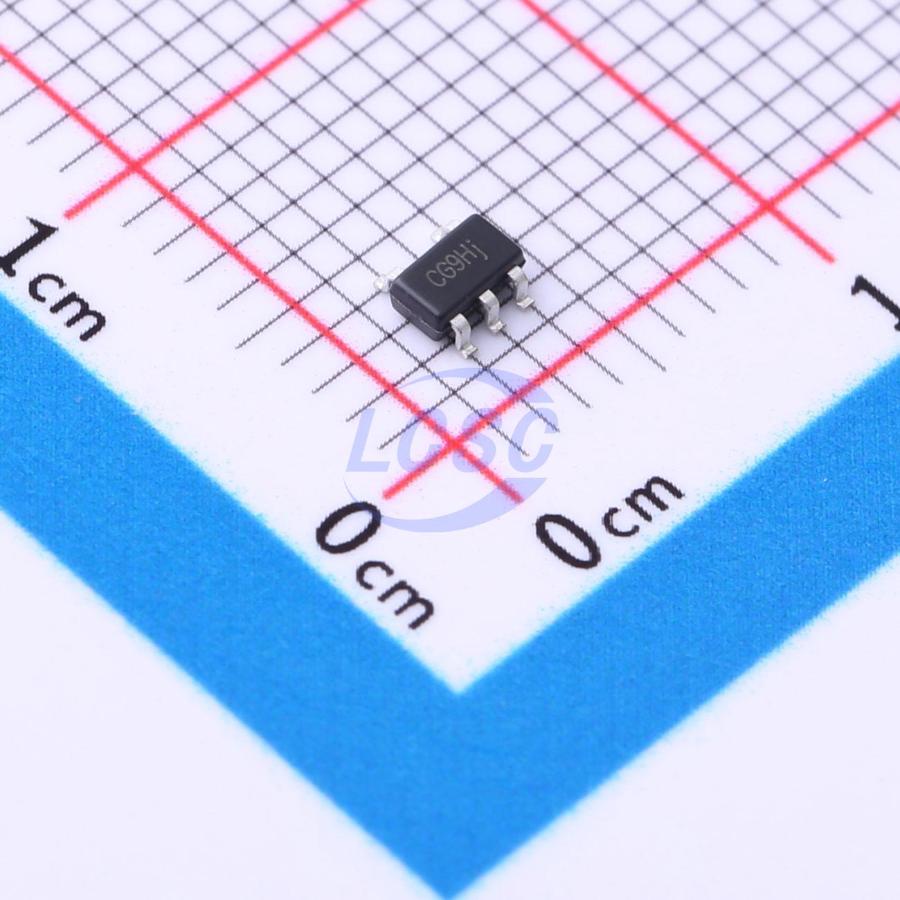

LTC331RYT5/R6
Rail-to-rail input 1mV 5pA 1 SOT-23-5L Linear Comparators RoHS
General Purpose, 1.8V, RRl, Open-drain Output Comparators
- Manufacturer
- Linearin
- Manufacturer part #
- LTC331RYT5/R6
- Store part #
- C2888111
- Package / case
- SOT-23-5L
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,945 in stock
#C2888111
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.55 | ₹102.75 |
| 50+ | ₹17.81 | ₹890.50 |
| 150+ | ₹16.63 | ₹2,494.50 |
| 500+ | ₹15.16 | ₹7,580.00 |
| 3,000+ | ₹14.51 | ₹43,530.00 |
| 6,000+ | ₹14.12 | ₹84,720.00 |
5 × ₹20.55
₹102.75
excl. GST
₹121.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LTC331RYT5/R6
₹102.75 for 5 + GST
Specifications
- Output Type
- Open-drain
- Rail to Rail
- Rail-to-rail input
- Quiescent Current
- 37uA
- Propagation Delay Time
- 100ns
- Operating Temperature
- -40℃~+85℃
- Features
- EMI filtering/RF suppression;ESD protection
- Input Hysteresis Voltage (Vhys)
- 3mV
- Common Mode Rejection Ratio(CMRR)
- 78dB
- Vos - Input Offset Voltage
- 1mV
- Ib - Input Bias Current
- 5pA
- Number of Channels
- 1
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Input Offset Current(Ios)
- 10pA
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.023 g
Overview
The LTC331/393 single-/dual- channel comparators are drop-in, pin-for-pin compatible replacements for the LMV331/LMV393, and low-voltage versions of TL331/LM393. The devices with open-drain output offer the ultimate combination of high speed (100 ns propagation delay) and very low power consumption (37 μA), and feature such as rail-to-rail inputs, low offset voltage (typically 1 mV), large output drive current, and a wide range of supply voltages from 1.8 V to 5.5 V. The devices are very easy to implement in a wide variety of applications where require critical response time, power-sensitive, low-voltage, and/or tight board space. Advantages of the LTC331/393 also include the added benefit of internal hysteresis provide noise immunity, preventing output oscillations even with slow-moving input signals. Designed with the most modern techniques, the LTC331/393 achieve superior performance over BiCMOS or bipolar versions on the market. The LTC331 (single) is available in both SOT23-5L and SC70-5L packages. The LTC393 (dual) is offered in DFN-8L, SOIC-8L, MSOP-8L and TSSOP-8L packages. All devices are rated over -40 °C to +85 °C industrial temperature range.
Applications
- Consumer Accessories
- Portable and Battery-Powered Devices
- Alarms and Monitoring Circuits
- Threshold Detectors and Discriminators
- Logic Level Shifting or Translation
- Zero-Crossing Detectors
- Window Comparators
- IR Receivers
- Line Receivers
Key features
- Micro-power Operating Current (37 μA) Preserves Battery Power
- Fast 100 ns Propagation Delay (100-mV Overdrive)
- Single 1.8 V to 5.5 V Supply Voltage Range Can be Powered From the Same 1.8V/2.5V/3.3V/5V System Rails
- Rail-to-Rail Input
- Open-Drain Output Current Drive: 30 mA Typically at 5V Supply
- Internal Hysteresis for Clean Switching
- Internal RF/EMI Filter
- Operating Temperature Range: -40 °C to +85 °C
