ADIDatasheet (PDF)

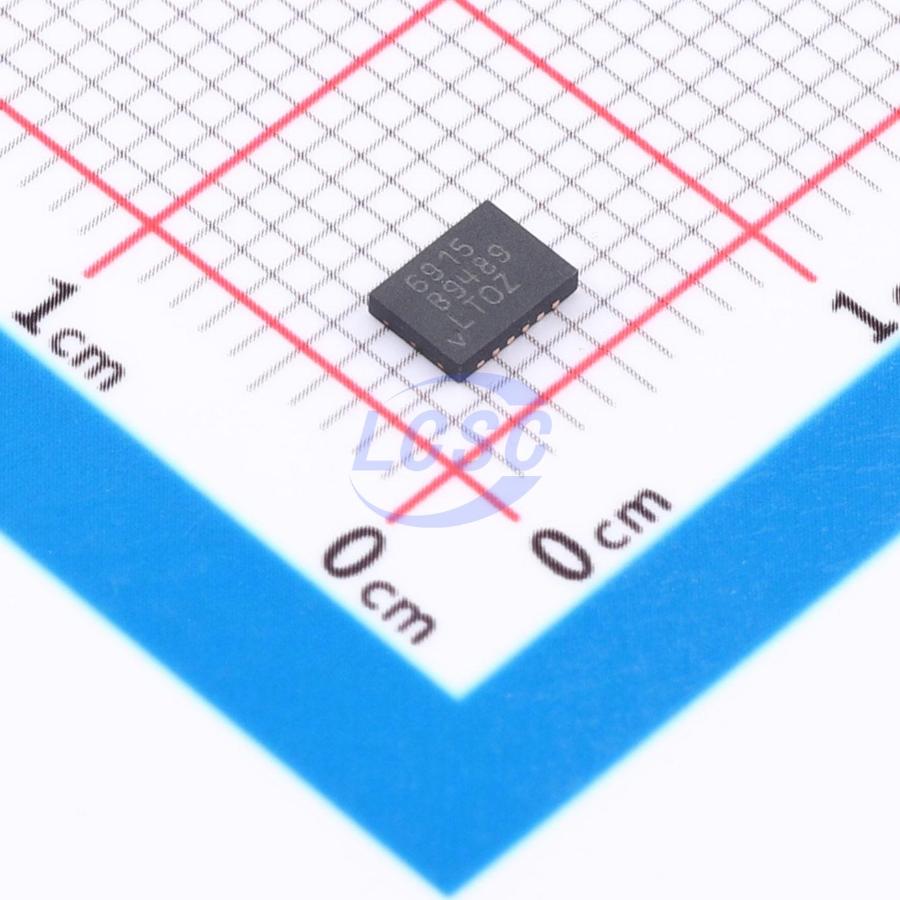

LTC6915CDE#PBF
1mA 1 10uV 0.2V/us 5nA 125dB 880uA Rail-to-Rail Input, Rail-to-Rail Output DFN-12-EP(3x4) Instrumentation, Op Amps, Buffer Amps RoHS
DFN-12-EP(3x4)ROHS3 CompliantActive
Zero Drift, Precision Instrumentation Amplifier with Digitally Programmable Gain
- Manufacturer
- ADI
- Manufacturer part #
- LTC6915CDE#PBF
- Store part #
- C581026
- Package / case
- DFN-12-EP(3x4)
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C581026
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,549.97 | ₹1,549.97 |
| 10+ | ₹1,471.80 | ₹14,718.00 |
| 30+ | ₹1,336.28 | ₹40,088.40 |
| 100+ | ₹1,218.38 | ₹1,21,838.00 |
1 × ₹1,549.97
₹1,549.97
excl. GST
₹1,828.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 91 per tube
LTC6915CDE#PBF
₹1,549.97 for 1 + GST
Specifications
- output type
- Single-Ended
- Output Current
- 1mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 10uV
- Slew Rate
- 0.2V/us
- Input Offset Current(Ios)
- 1.5nA
- Operating Temperature
- 0℃~+70℃
- Ib - Input Bias Current
- 5nA
- Common Mode Rejection Ratio(CMRR)
- 125dB
- Power Supply Rejection Ratio (PSRR)
- 116dB
- Input Offset Voltage Drift(Vos TC)
- 50nV/℃
- -3dB Bandwidth
- 200kHz
- Quiescent Current
- 880uA
- Gain Error
- 1%
- Features
- Digitally programmable gain;Zero drift / auto-zero;Enable/shutdown function
- Dual Supply
- -5V~5V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 91 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.45 g
Overview
The LTC6915 is a precision programmable gain instrumentation amplifier. The gain can be programmed to 0, 1, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1024, 2048, or 4096 through a parallel or serial interface. The CMRR is typically 125dB with a single 5V supply with any programmed gain. The offset is below 10μV with a temperature drift of less than 50nV/°C. The LTC6915 uses charge balanced sampled data techniques to convert a differential input voltage into a single ended signal that is in turn amplified by a zero-drift operational amplifier. The differential inputs operate from rail-to-rail and the single-ended output swings from rail-to-rail. The LTC6915 can be used in single power supply applications as low as 2.7V, or with dual ±5V supplies. The LTC6915 is available in a 16-lead SSOP package and a 12-lead DFN surface mount package.
Applications
- Thermocouple Amplifiers
- Electronic Scales
- Medical Instrumentation
- Strain Gauge Amplifier
- High Resolution Data Acquisition
Key features
- 14 Levels of Programmable Gain
- 125dB CMRR Independent of Gain
- Gain Accuracy 0.1% (Typ)
- Maximum Offset Voltage of 10µV
- Maximum Offset Voltage Drift: 50nV/°C
- Rail-to-Rail Input and Output
- Parallel or Serial (SPI) Interface for Gain Setting
- Supply Operation: 2.7V to ±5.5V
- Typical Noise: 2.5μVₚ₋ₚ (0.01Hz to 10Hz)
- 16-Lead SSOP and 12-Lead DFN Packages
