Linearin

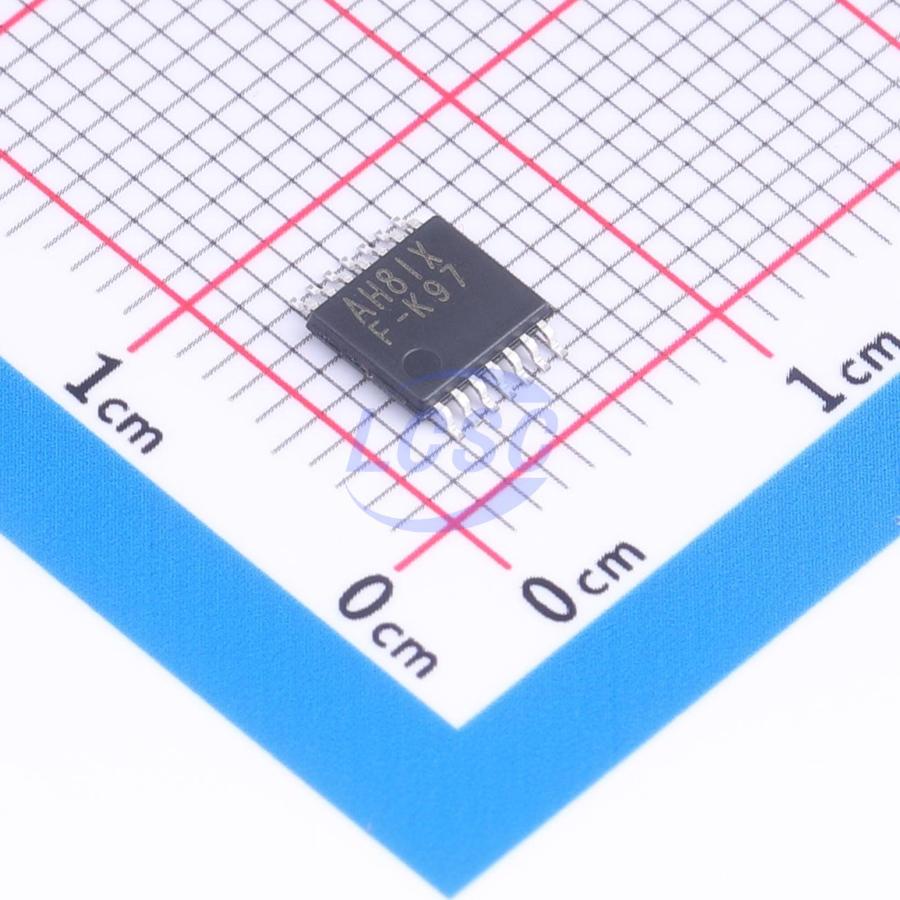

LTC8878XT14/R6

1pA 1.12mA 20MHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14L Audio Amplifiers

TSSOP-14LRoHSActive

Manufacturer: Linearin
Manufacturer part #: LTC8878XT14/R6
Store part #: C3035430
Package / case: TSSOP-14L
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,997 in stock

#C3035430

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹303.55	₹303.55
10+	₹256.50	₹2,565.00
30+	₹227.23	₹6,816.90
100+	₹196.88	₹19,688.00
500+	₹183.43	₹91,715.00
1,000+	₹177.57	₹1,77,570.00
3,000+	₹175.19	₹5,25,570.00
6,000+	₹173.67	₹10,42,020.00

Quantity (min 1)

1 × ₹303.55

₹303.55

excl. GST

₹358.19 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LTC8878XT14/R6

₹303.55 for 1 + GST

Specifications

number of channels: 4
Ib - Input Bias Current: 1pA
Operating Temperature: -40℃~+125℃
Input Offset Current(Ios): 5pA
Vos - Input Offset Voltage: 100uV
Output Current: 60mA
Common Mode Rejection Ratio (CMRR): 96dB
Quiescent Current: 1.12mA
Gain Bandwidth Product: 20MHz
Input Offset Voltage Drift(Vos TC): 1uV/℃
Single Supply: 1.8V~5.5V
Slew Rate: 22V/us
Noise density(eN): 8nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.108 g

Overview

The LTC887x series single, dual, and quad amplifiers achieve a maximum GBW-to-supply-current ratio, making them ideal for battery-powered applications requiring a good balance between cost and performance, such as audio output, motor phase current sensing, photodiode amplification, and white goods. Featuring rail-to-rail input and output swing, 20 MHz wide bandwidth, low supply current (typically 1.12 mA per amplifier at 5 V supply), and low noise, the LTC887x series is an ideal choice for precision, low-current, low-voltage, battery-powered applications. Low input bias current enables these amplifiers for use in applications with megaohm-level source impedances. The robust design of the LTC887x amplifiers provides ease of use for circuit designers: integrated RF/EMI rejection filters, no phase reversal under overdrive conditions, and high ESD protection (3 kV HBM). The LTC887x amplifiers are optimized to operate at voltages as low as +1.8 V (±0.9 V) and as high as +5.5 V (±2.75 V) over a temperature range of 0°C to 70°C; over the extended temperature range of −40°C to +125°C, they operate from +2.0 V (±1.0 V) to +5.5 V (±2.75 V). The LTC8875 (single) is available in SOT23-5L and SOIC-8L packages. The LTC8876 (dual) is available in SOIC-8L and MSOP-8L packages. The quad LTC8878 is available in SOIC-14L and TSSOP-14L packages.
