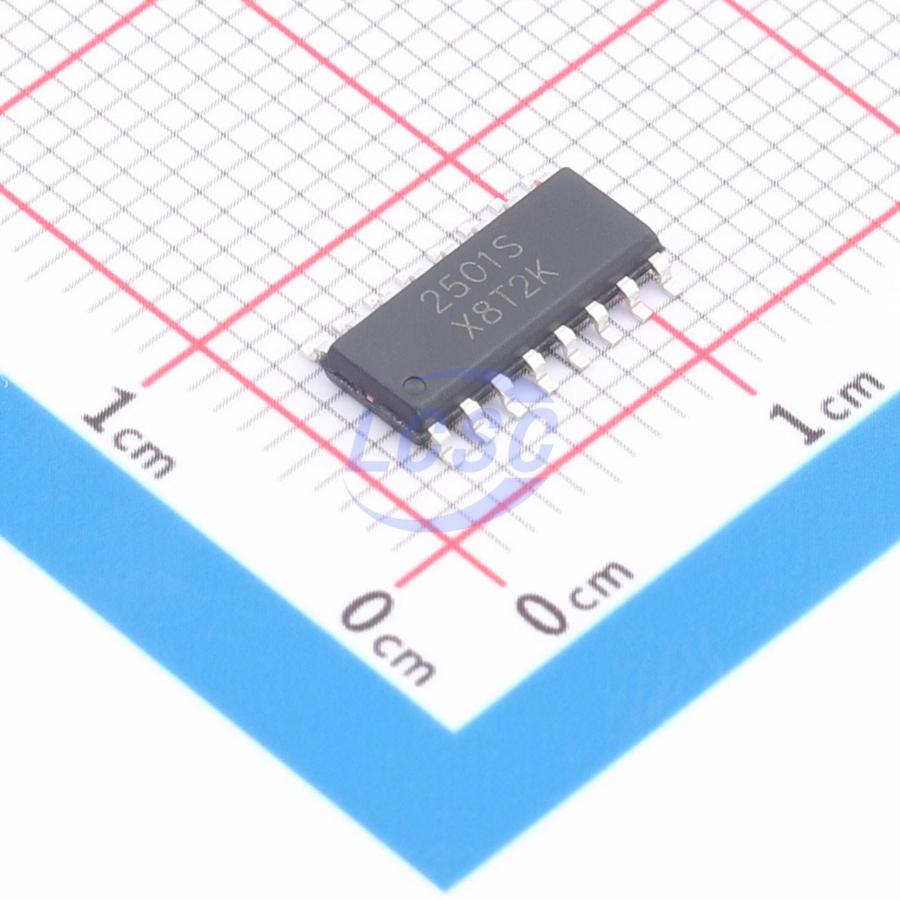

LY2501S
2V~7V SOP-16L Motor Drivers, Controllers
1.5A dual H-bridge motor driver IC
- Manufacturer
- Lingyang Micro
- Manufacturer part #
- LY2501S
- Store part #
- C46613955
- Package / case
- SOP-16L
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,680 in stock
#C46613955
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.24 | ₹72.40 |
| 100+ | ₹6.38 | ₹638.00 |
| 300+ | ₹5.95 | ₹1,785.00 |
| 1,000+ | ₹5.62 | ₹5,620.00 |
| 4,000+ | ₹5.37 | ₹21,480.00 |
| 8,000+ | ₹5.24 | ₹41,920.00 |
10 × ₹7.24
₹72.40
excl. GST
₹85.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LY2501S
₹72.40 for 10 + GST
Specifications
- Number of H-bridges
- 2
- Features
- Interleaved conduction protection;Motor stall protection
- Technology
- Yes
- Voltage - Supply
- 2V~7V
- Operating Temperature
- -25℃~+85℃
- Supply Current (Iq)
- 1uA
- Output Current
- 1.5A
- Peak Current
- 2.5A
- RDS(on)
- 450mΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.197 g
Overview
A dedicated motor driver IC for small motor driving applications, featuring an H-bridge circuit architecture with built-in P/N MOSFET power switches. It supports four control modes: forward rotation, reverse rotation, braking, and standby. The IC integrates dual H-bridge drivers capable of driving two DC brushed motors or one stepper motor. It operates over a wide voltage range of 2V~7V. Under conditions of ambient temperature 27℃ and VDD=7V, it can deliver up to 1.5A continuous current to motor loads, with a maximum peak current of 2.5A. An integrated over-temperature protection circuit shuts down the power switches when the junction temperature exceeds 150℃ (typical), and resumes operation once the junction temperature drops to 130℃, preventing damage from overheating.
Applications
- Toy DC motor drive
- Small appliance applications
Key features
- Low standby current: <1uA
- Wide supply voltage range: 2~7V
- Dual H-bridge with integrated PMOS/NMOS power transistors
- On-resistance (HS+LS) Ron=0.45Ω@800mA
- Dual-channel simultaneous operating current: CHA=CHB=1.2A
- Single-channel operating current: 1.5A
- Single driver output peak current: 2.5A
- Integrated freewheeling diodes, no external diodes required
- Integrated over-temperature protection with thermal hysteresis
- Built-in ~150kΩ pull-down resistor to GND on input pins
- Wide operating temperature range: -25~85℃
- Package: SOP-16L
