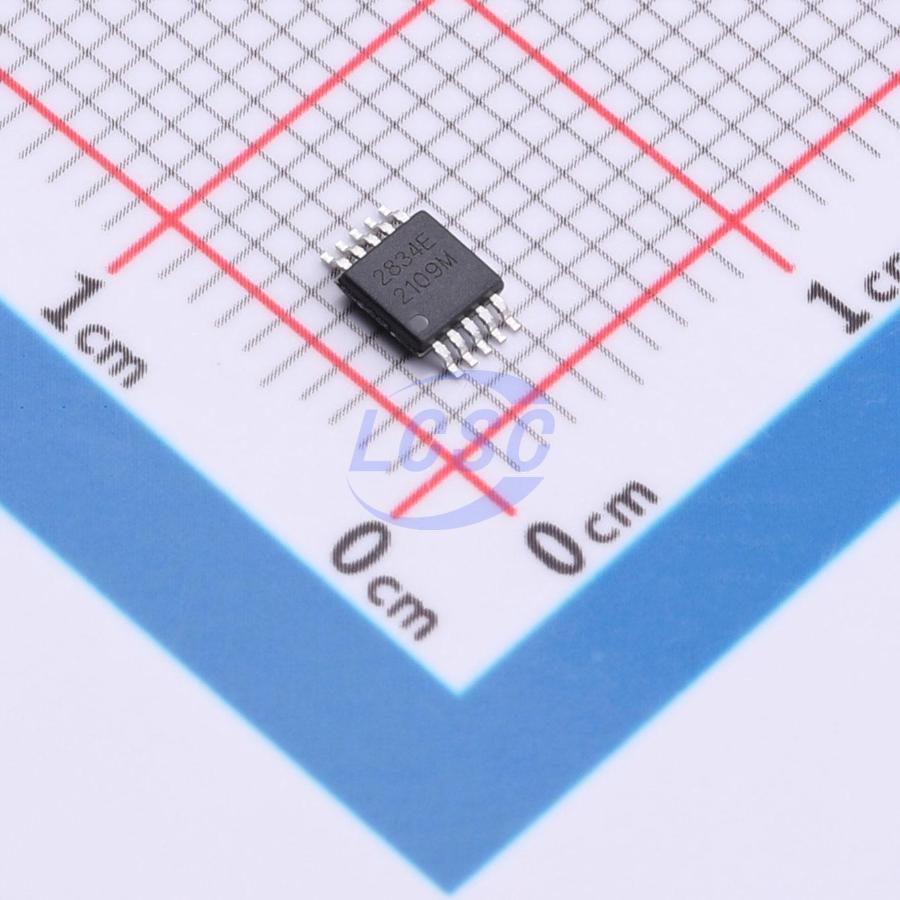

LY2834E
EMSOP-10L Motor Drivers, Controllers
- Manufacturer
- Lingyang Micro
- Manufacturer part #
- LY2834E
- Store part #
- C53330306
- Package / case
- EMSOP-10L
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,610 in stock
#C53330306
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.29 | ₹96.45 |
| 50+ | ₹15.33 | ₹766.50 |
| 150+ | ₹13.36 | ₹2,004.00 |
| 500+ | ₹11.88 | ₹5,940.00 |
| 2,500+ | ₹10.69 | ₹26,725.00 |
| 5,000+ | ₹10.09 | ₹50,450.00 |
5 × ₹19.29
₹96.45
excl. GST
₹113.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
LY2834E
₹96.45 for 5 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Features
- Overcurrent Protection;Over temperature protection;Under-voltage lockout
- Technology
- Yes
- Operating Temperature
- -25℃~+85℃
- Output Current
- 1A
- Control Voltage
- 0V~5.5V
- RDS(on)
- 900mΩ
- Motor Drive Voltage(Vm)
- 2V~15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.097 g
Overview
The LY2834E integrates a dual H-bridge driver circuit capable of driving one bipolar stepper motor, two brushed DC motors, or other inductive loads such as solenoids. Each H-bridge driver consists of two half-bridge drivers, each containing a high-side NMOSFET and a low-side NMOSFET. This architecture is widely applicable in mechatronic applications such as toys, printers, and security cameras. The device integrates undervoltage protection, over-temperature protection, overcurrent protection, and short-circuit protection; when any protection is triggered, the H-bridge driver shuts down. The LY2834E is offered in an EMSOP-10L package with an exposed pad. It operates over a supply voltage range of 2V to 15V, delivers up to 1A continuous output current, and supports motor speed control via a simple external PWM interface.
Applications
- Battery-powered toys
- POS printers
- Security cameras
- Office automation equipment
- Laser projectors
- Robots
Key features
- Wide supply voltage range: 2~15V
- Low on-resistance: Ron (HS + LS) = 0.9Ω @ 500mA
- Continuous drive current 1A, peak current 1.7A
- Input pins with built-in ~100kΩ pull-down resistor to GND, compatible with 1.8V/3.3V/5V logic levels
- Integrated UVLO protection
- Integrated overcurrent protection
- Integrated over-temperature protection
- Ultra-compact package: EMSOP-10L
