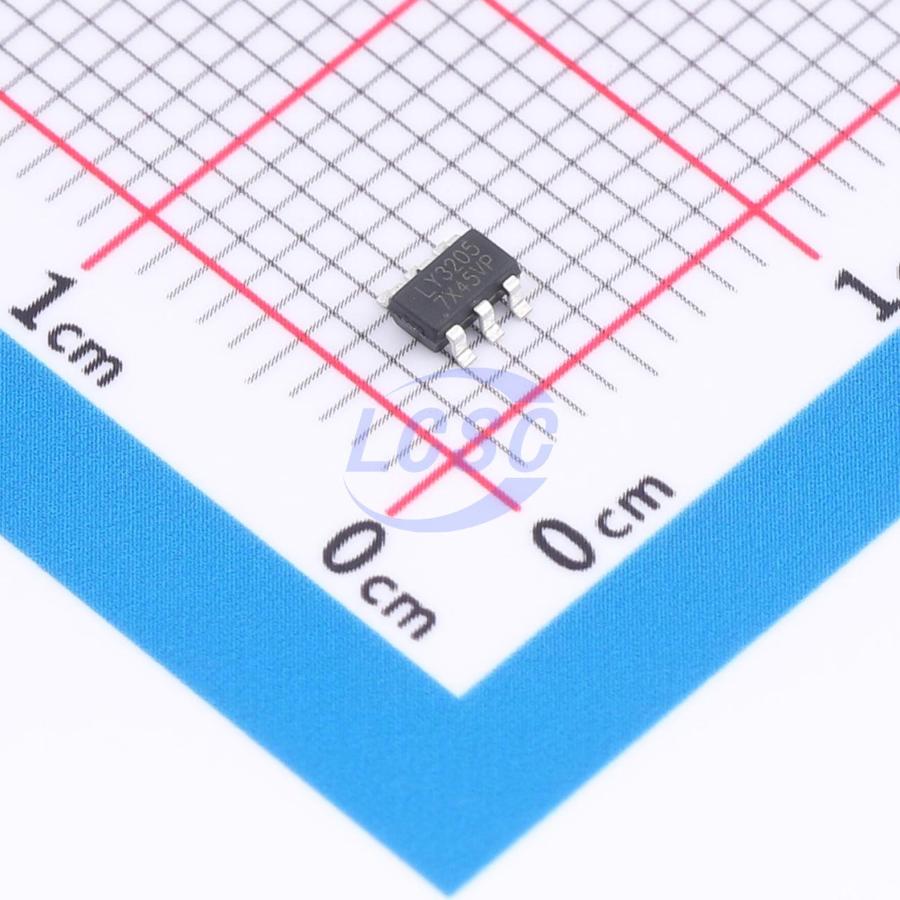

LY3205
4.5V~6V SOT-23-6 Motor Drivers, Controllers
Integrated control chip for charging and motor drive
- Manufacturer
- Lingyang Micro
- Manufacturer part #
- LY3205
- Store part #
- C46613923
- Package / case
- SOT-23-6
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,110 in stock
#C46613923
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.02 | ₹60.20 |
| 100+ | ₹4.76 | ₹476.00 |
| 300+ | ₹4.14 | ₹1,242.00 |
| 3,000+ | ₹3.68 | ₹11,040.00 |
| 6,000+ | ₹3.29 | ₹19,740.00 |
| 9,000+ | ₹3.11 | ₹27,990.00 |
10 × ₹6.02
₹60.20
excl. GST
₹71.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LY3205
₹60.20 for 10 + GST
Specifications
- Features
- Current sensing/regulation function
- Voltage - Supply
- 4.5V~6V
- Operating Temperature
- -25℃~+125℃
- Supply Current (Iq)
- 5uA
- Output Current
- 1.3A
- Peak Current
- 2.6A
- RDS(on)
- 220mΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.043 g
Overview
This chip integrates lithium battery charge management, motor driving, motor freewheeling diode, push-button gear control, and protection functions, with a standby current of only 5uA. The charging current is 0.6A; the red LED illuminates during charging and the green LED illuminates when fully charged. During discharge, the green LED is on; when the battery voltage is critically low, the green LED flashes as an alert. The maximum output current is 1.3A, and higher current applications can be achieved by connecting an external PMOS transistor. A single button press controls the output switch for power on/off operation.
Applications
- Shavers & Hair Clippers
- Facial Cleansing Devices
- Portable Water Pumps
- Electric Toothbrushes & Small Fans
- Sanitizer Sprayers
Key features
- Built-in freewheeling diode
- Motor continuous drive current 1.3A
- Maximum peak current 2.6A
- External PMOS transistor support for higher current drive
- Charging current 0.6A
- Red LED during charging, green LED when fully charged
- Green LED during discharge, green LED flashing at low battery
- 2.9V battery over-discharge protection
- Output overcurrent protection
- Thermal protection
- Single-click button for power on/off control
- SOT23-6 compact package
