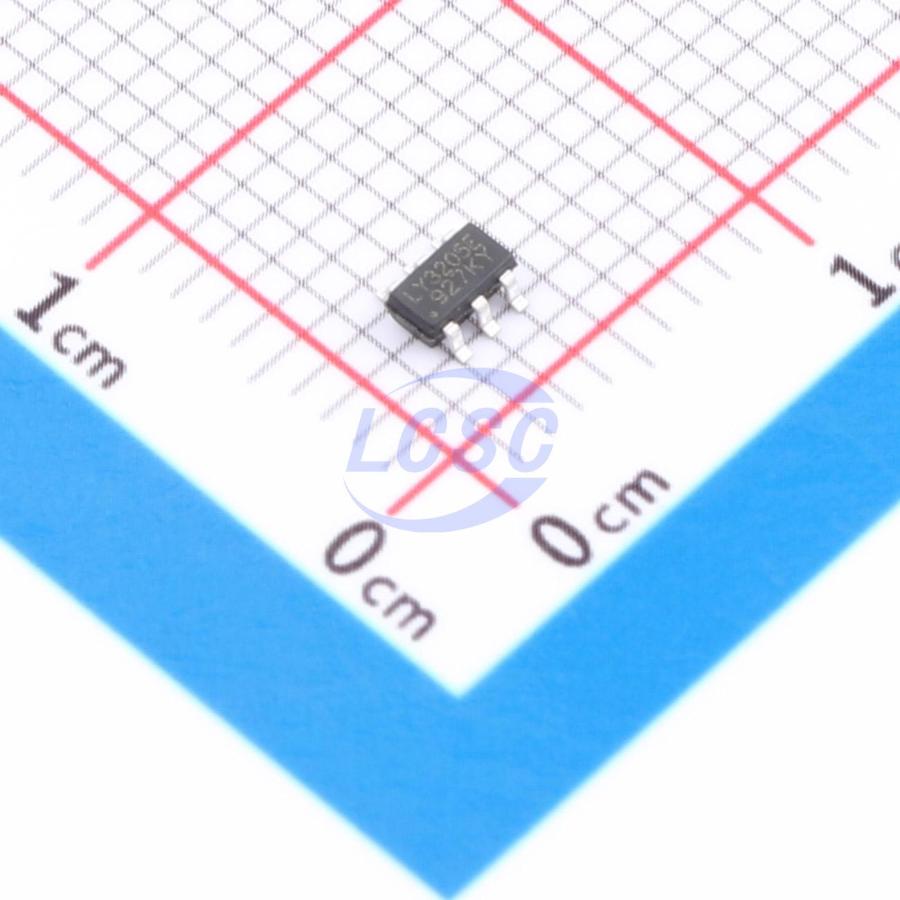

LY3205E
4.5V~6V SOT-23-6 Motor Drivers, Controllers
Integrated control chip for charging and motor drive
- Manufacturer
- Lingyang Micro
- Manufacturer part #
- LY3205E
- Store part #
- C46613922
- Package / case
- SOT-23-6
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,850 in stock
#C46613922
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.60 | ₹66.00 |
| 100+ | ₹5.25 | ₹525.00 |
| 300+ | ₹4.59 | ₹1,377.00 |
| 3,000+ | ₹4.09 | ₹12,270.00 |
| 6,000+ | ₹3.68 | ₹22,080.00 |
| 9,000+ | ₹3.48 | ₹31,320.00 |
10 × ₹6.60
₹66.00
excl. GST
₹77.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LY3205E
₹66.00 for 10 + GST
Specifications
- Features
- Current sensing/regulation function
- Technology
- No
- Voltage - Supply
- 4.5V~6V
- Operating Temperature
- -25℃~+125℃
- Supply Current (Iq)
- 5uA
- Peak Current
- 2.6A
- RDS(on)
- 220mΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.046 g
Overview
LY3205E is a fully integrated motor drive control IC that integrates a lithium battery charge management module, motor drive module, motor freewheeling diode, push-button gear control, and protection module, with a standby current of only 5uA. The IC features a charging current of 0.6A; the red LED lights up during charging and turns off when fully charged, while the green LED lights up during discharge. The maximum output current is 1.3A, and an external PMOS transistor can be added to support applications requiring more than 1.3A. The IC integrates an enable control pin, active high, which can be driven by an external MCU input signal or controlled via a toggle switch.
Applications
- Razor
- Hair clipper
- Electric toothbrush
- Facial cleanser device
- Portable water pump
Key features
- Built-in freewheeling diode
- Motor continuous drive current 1.3A
- External PMOS support for higher current drive
- 0.6A charging current
- Enable/toggle switch control
- Charging: red LED on; fully charged: red LED off
- Discharging: green LED on
- 2.9V battery over-discharge protection
- Output overcurrent protection
- Thermal protection
- SOT23-6 compact package
