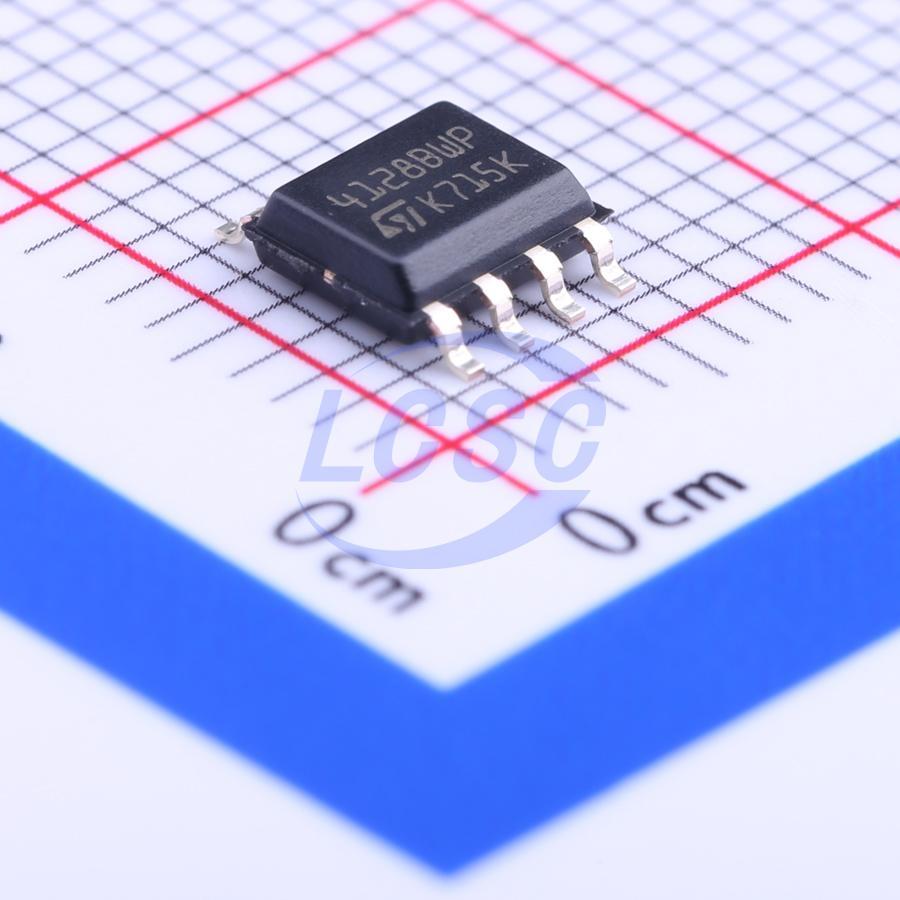

M24128-BWMN6TP
128Kbit 1MHz I2C SOIC-8 Memory RoHS
128-Kbit serial I²C bus EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,950 in stock
#C7559
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.44 | ₹232.20 |
| 50+ | ₹35.99 | ₹1,799.50 |
| 150+ | ₹31.51 | ₹4,726.50 |
| 500+ | ₹25.94 | ₹12,970.00 |
| 2,500+ | ₹23.46 | ₹58,650.00 |
| 5,000+ | ₹21.96 | ₹1,09,800.00 |
5 × ₹46.44
₹232.20
excl. GST
₹274.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
M24128-BWMN6TP
₹232.20 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in error correction code (ECC) function
- Memory Size
- 128Kbit
- Voltage - Supply
- 2.5V~5.5V;2.5mA
- Clock Frequency
- 1MHz
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.235 g
Overview
The M24128 is a 128-Kbit |²C -compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 16 Kx8 bits. The M24128-BW can operate with a supply voltage from 2.5 V to 5.5 V; the M24128-BR can operate with a supply voltage from 1.8 V to 5.5 V; and the M24128-BF and M24128-DF can operate with a supply voltage from 1.7 V to 5.5 V. All these devices operate with a clock frequency of 1 MHz (or less), over an ambient temperature range of -40 ℃ / +85 ℃. The M24128-Dx offers an additional page, named the Identification Page (64 bytes). The Identification Page can be used to store sensitive application parameters which can be (later) permanently locked in Read-only mode.
Key features
- Compatible with all |²C bus modes: 1 MHz, 400 kHz, 100 kHz
- Memory array: 128 Kbit (16 Kbytes) of EEPROM
- Page size: 64 bytes
- Additional Write lockable page (M24128-D order codes)
- Single supply voltage and high speed: 1 MHz clock from 1.7 V to 5.5 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | M24128-BRMN6P#C1353525ST · SOIC-8 | ST | SOIC-8 | 34 | ₹49.88 · 34 in stock | View |
 | M24128-BRMN6TP#C79989ST · SOIC-8 | ST | SOIC-8 | 3,475 | ₹51.89 · 3,475 in stock | View |
 | M24128-DRMN8TP/K#C2061507ST · SO-8 | ST | SO-8 | 3 | ₹178.31 · 3 in stock | View |
 | 24FC128-I/SN#C615158MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 97 | ₹242.29 · 97 in stock | View |
 | 24FC128T-I/SN#C615658MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 120 | ₹199.26 · 120 in stock | View |
