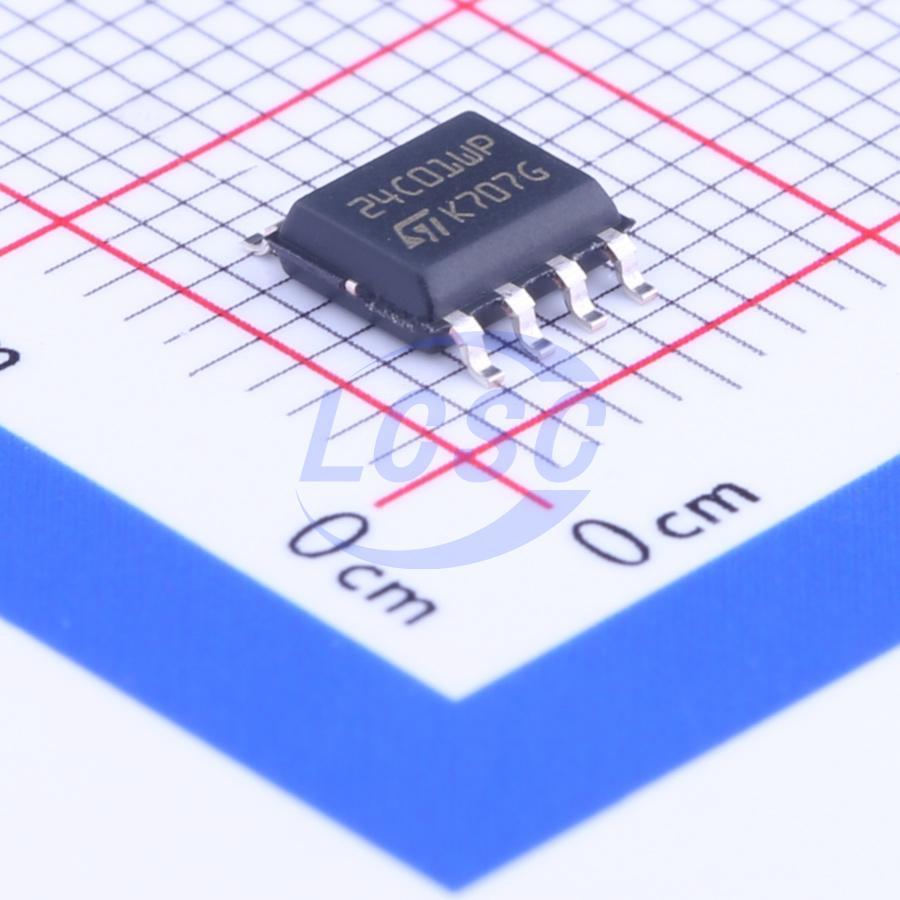

M24C01-WMN6TP
1Kbit 400kHz I2C SOIC-8 Memory RoHS
serial I2C bus EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,805 in stock
#C7996
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.26 | ₹141.30 |
| 50+ | ₹22.32 | ₹1,116.00 |
| 150+ | ₹19.78 | ₹2,967.00 |
| 500+ | ₹16.60 | ₹8,300.00 |
| 2,500+ | ₹15.20 | ₹38,000.00 |
| 5,000+ | ₹14.34 | ₹71,700.00 |
5 × ₹28.26
₹141.30
excl. GST
₹166.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
M24C01-WMN6TP
₹141.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR)
- Memory Size
- 1Kbit
- Voltage - Supply
- 2.5V~5.5V;2mA
- Clock Frequency
- 400kHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 40 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.235 g
Overview
These I²C-compatible electrically erasable programmable memory (EEPROM) devices are organized as 2048/1024/512/256/128 x 8 (M24C16, M24C08, M24C04, M24C02 and M24C01). I²C uses a two-wire serial interface, comprising a bidirectional data line and a clock line. The devices carry a built-in 4-bit Device Type Identifier code (1010) in accordance with the I²C bus definition. The device behaves as a slave in the I²C protocol, with all memory opera
Key features
- PDIP8 (BN)
- Supports both the 100 kHz I²C Standard-mode and the 400 kHz I²C Fast-mode
- Single supply voltage: – 2.5 V to 5.5 V for M24Cxx-W; 1.8 V to 5.5 V for M24Cxx-Rev 16; 1.7 V to 5.5 V for M24Cxx-F
- Write Control input
- Byte and Page Write (up to 16 bytes)
- Random and Sequential Read modes
- Self-timed programming cycle
- Automatic address incrementing
- Enhanced ESD/latch-up protection
- More than 1 million write cycles
- More than 40-year data retention
- Packages: SO8, TSSOP8, UFDFPN8: ECOPACK2 (RoHS-compliant and Halogen-free); PDIP8: ECOPACK1 (RoHS-compliant)
- SO8 (MN) 150 mils width
- UFDFPN8 (MB, MC) 2x3 mm (MLP)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BR24T01FJ-WE2#C2909279ROHM · SOIC-8 | ROHM | SOIC-8 | 1,915 | ₹33.76 · 1,915 in stock | View |
 | 24LC01BT-I/SN#C5452MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 4,947 | ₹66.92 · 4,947 in stock | View |
 | 24LC01B-I/SN#C511265MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 34 | ₹113.16 · 34 in stock | View |
 | 24AA01-I/SN#C148037MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 4 | ₹51.49 · 4 in stock | View |
 | 24AA01T-I/SN#C2061395MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 3,250 | ₹39.58 · 3,250 in stock | View |
