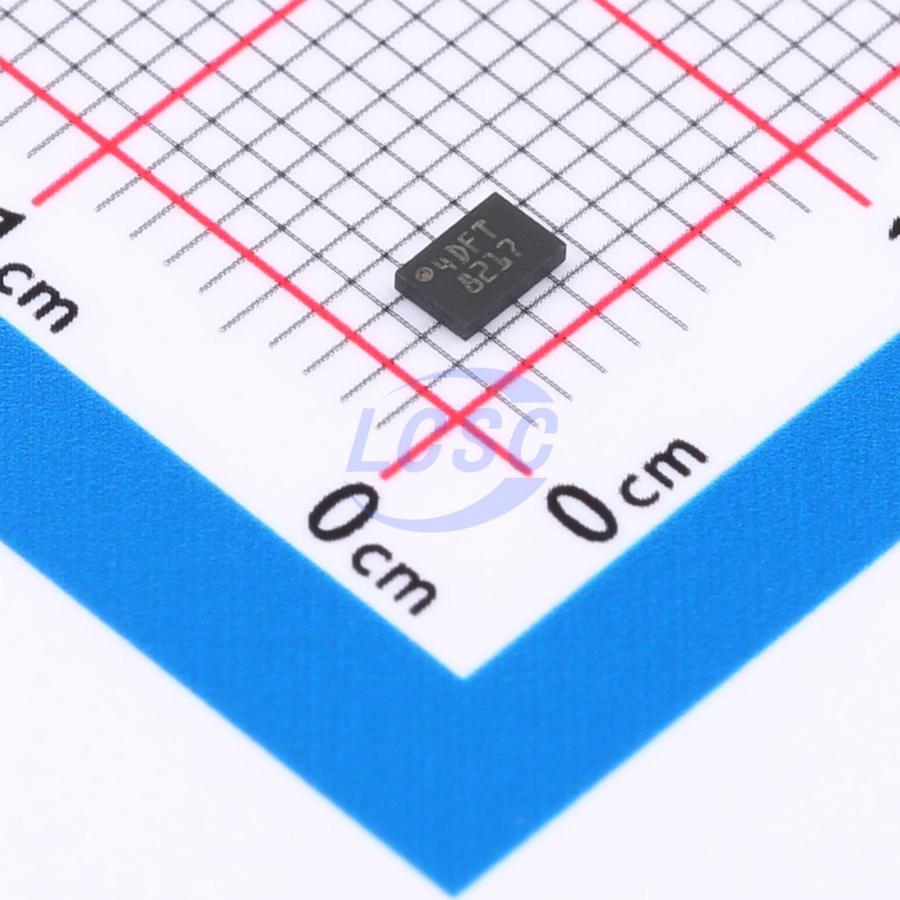

M24C16-FMC6TG

The M24C16 is a 16-Kbit I²C -compatible EEPROM (electrically erasable programmable memory) organized as 2Kx8 bits. The M24C16-W can be accessed (Read and Write) with a supply voltage from 2.5 V to 5.5 V, the M24C16-R can be accessed (Read and Write) with a supply voltage from 1.8 V to 5.5 V, and the M24C16-F can be accessed with a supply voltage from 1.7 V to 5.5 V (over the full temperature range) or with an extended supply voltage from 1.6 V to 1.7 V. The M24C16-F can also operate down to 1.6 V under some restricting conditions. All these devices operate with a clock frequency of 400 kHz (or lower).

Key features

• Compatible with following I²C bus modes: 400 kHz, 100 kHz
• Memory array: 16 Kbit (2 Kbyte) of EEPROM Page size: 16 byte
• Single supply voltage: M24C16-W: 2.5 V to 5.5 V; M24C16-R: 1.8 V to 5.5 V; M24C16-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.7 V (limited temperature range)
• Write time: Byte write within 5 ms, Page write within 5 ms
• Operating temperature range: from -40 ℃ up to +85 ℃
• Random and sequential read modes
• Write protect of the whole memory array
• Enhanced ESD/latch-up protection
• More than 4 million Write cycles
• More than 200-year data retention
