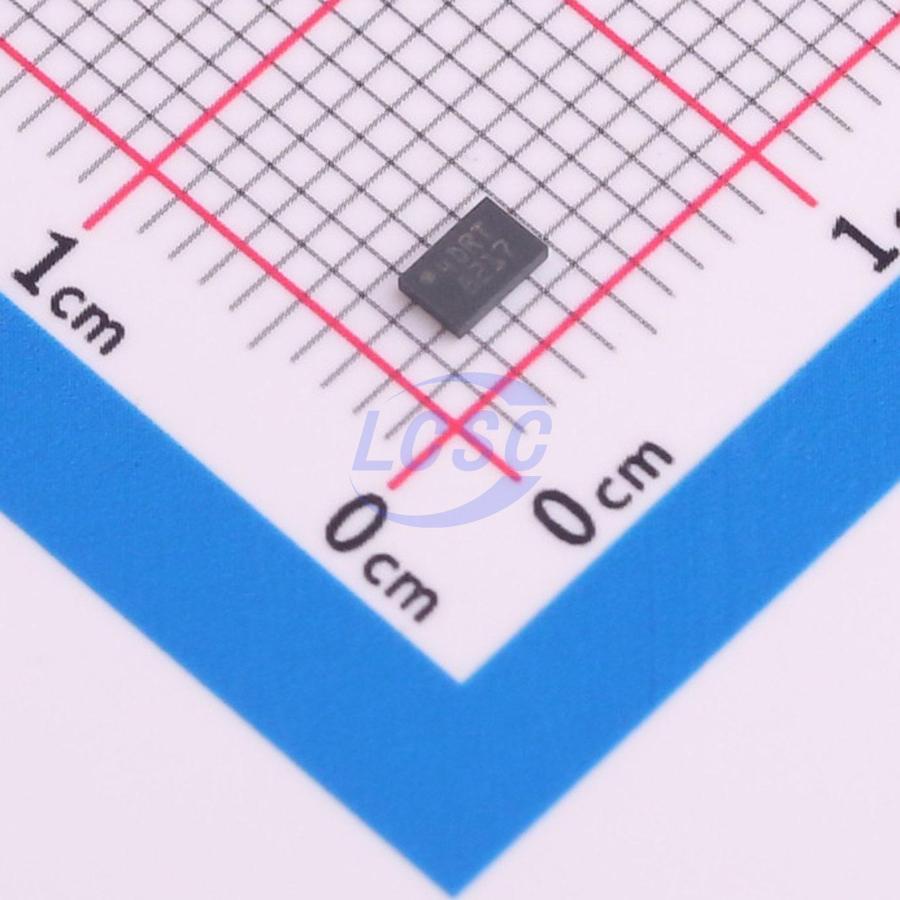

M24C16-RMC6TG
16Kbit 400kHz I2C DFN-8(2x3) Memory RoHS
16-Kbit serial I2C bus EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,585 in stock
#C2913652
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.93 | ₹199.65 |
| 50+ | ₹30.94 | ₹1,547.00 |
| 150+ | ₹27.11 | ₹4,066.50 |
| 500+ | ₹22.31 | ₹11,155.00 |
| 2,500+ | ₹20.16 | ₹50,400.00 |
| 5,000+ | ₹18.88 | ₹94,400.00 |
5 × ₹39.93
₹199.65
excl. GST
₹235.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
M24C16-RMC6TG
₹199.65 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR)
- Memory Size
- 16Kbit
- Voltage - Supply
- 1.8V~5.5V;1mA
- Clock Frequency
- 400kHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.091 g
Overview
The M24C16 is a 16-Kbit I²C -compatible EEPROM (electrically erasable programmable memory) organized as 2Kx8 bits. The M24C16-W can be accessed (Read and Write) with a supply voltage from 2.5 V to 5.5 V, the M24C16-R can be accessed (Read and Write) with a supply voltage from 1.8 V to 5.5 V, and the M24C16-F can be accessed with a supply voltage from 1.7 V to 5.5 V (over the full temperature range) or with an extended supply voltage from 1.6 V to 1.7 V. The M24C16-F can also operate down to 1.6 V under some restricting conditions. All these devices operate with a clock frequency of 400 kHz (or lower).
Key features
- Compatible with following I²C bus modes: 400 kHz, 100 kHz
- Memory array: 16 Kbit (2 Kbyte) of EEPROM Page size: 16 byte
- Single supply voltage: M24C16-W: 2.5 V to 5.5 V; M24C16-R: 1.8 V to 5.5 V; M24C16-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.7 V (limited temperature range)
- Write time: Byte write within 5 ms, Page write within 5 ms
- Operating temperature range: from -40 ℃ up to +85 ℃
- Random and sequential read modes
- Write protect of the whole memory array
- Enhanced ESD/latch-up protection
- More than 4 million Write cycles
- More than 200-year data retention
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | M24C16-FMC6TG#C2970824ST · DFN-8(2x3) | ST | DFN-8(2x3) | 4,925 | ₹32.44 · 4,925 in stock | View |
 | 24AA16-I/MC#C612214MICROCHIP · DFN-8-EP(2x3) | MICROCHIP | DFN-8-EP(2x3) | 20 | ₹104.17 · 20 in stock | View |
 | CAT24C16HU4I-GT3#C464144onsemi · UDFN-8-EP(2x3) | onsemi | UDFN-8-EP(2x3) | 2,581 | ₹89.55 · 2,581 in stock | View |
 | BR24T16NUX-WTR#C2061635ROHM · VSON-8-EP(2x3) | ROHM | VSON-8-EP(2x3) | 57 | ₹84.12 · 57 in stock | View |
| M24C16-FMC5TG#C2063845ST · DFN-8-EP(2x3) | ST | DFN-8-EP(2x3) | On request | ₹92.93 · 0 in stock | View | |
