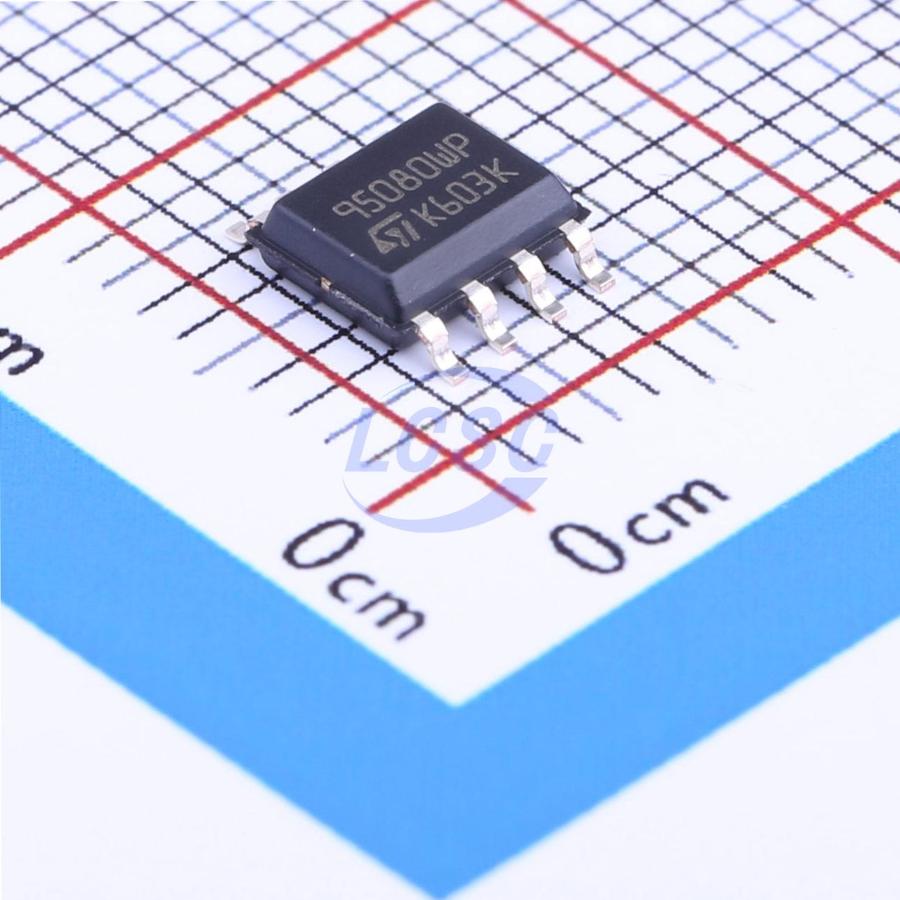

M95080-WMN6TP
8Kbit 20MHz SPI SOIC-8 Memory RoHS
8-Kbit serial SPI bus EEPROM with high-speed clock
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,375 in stock
#C41469
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.78 | ₹233.90 |
| 50+ | ₹36.36 | ₹1,818.00 |
| 150+ | ₹31.88 | ₹4,782.00 |
| 500+ | ₹26.31 | ₹13,155.00 |
| 2,500+ | ₹23.35 | ₹58,375.00 |
| 5,000+ | ₹21.86 | ₹1,09,300.00 |
5 × ₹46.78
₹233.90
excl. GST
₹276.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
M95080-WMN6TP
₹233.90 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in write enable latch (WEL);Page write protection function;Software write protection function
- Memory Size
- 8Kbit
- Voltage - Supply
- 2.5V~5.5V;3mA
- Clock Frequency
- 20MHz
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.235 g
Overview
The M95080 devices are Electrically Erasable PROgrammable Memories (EEPROMs) organized as 1024 x 8 bits, accessed through the SPl bus. The M95080-W can operate with a supply voltage from 2.5 V to 5.5 V; the M95080-R can operate with a supply voltage from 1.8 V to 5.5 V; and the M95080-DF can operate with a supply voltage from 1.7 V to 5.5 V, over an ambient temperature range of -40 ℃ / +85 ℃. The M95080-D offers an additional page, named the Identification Page (32 bytes). The Identification Page can be used to store sensitive application parameters which can be (later) permanently locked in Read-only mode.
Key features
- Compatible with the Serial Peripheral Interface (SPI) bus
- Memory array: 8 Kb (1 Kbyte) of EEPROM
- Page size: 32 bytes
- Additional Write lockable Page (ldentification page)
- Byte Write within 5 ms
- Page Write within 5 ms
- Write Protect: quarter, half or whole memory array
- High-speed clock: 20 MHz
- Single supply voltage: 2.5 V to 5.5 V for M95080-W, 1.8 V to 5.5 V for M95080-R, 1.7 V to 5.5 V for M95080-DF
- Operating temperature range: from -40 ℃ up to +85 ℃
- Enhanced ESD protection
- More than 4 million Write cycles
- More than 200-year data retention
- Packages: RoHS compliant and halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| M95080-RMN6TP#C2061335ST · SOP-8 | ST | SOP-8 | 207 | ₹52.06 · 207 in stock | View | |
 | CAT25080VI-GT3#C890368onsemi · SOIC-8 | onsemi | SOIC-8 | 2,380 | ₹84.57 · 2,380 in stock | View |
 | AT25080B-SSHL-T#C111442MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 856 | ₹59.32 · 856 in stock | View |
 | AT25080B-SSHL-B#C1349832MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 2 | ₹138.81 · 2 in stock | View |
| M95080-DRMN8TP/K#C2061229ST · SO-8 | ST | SO-8 | 520 | ₹89.71 · 520 in stock | View | |
