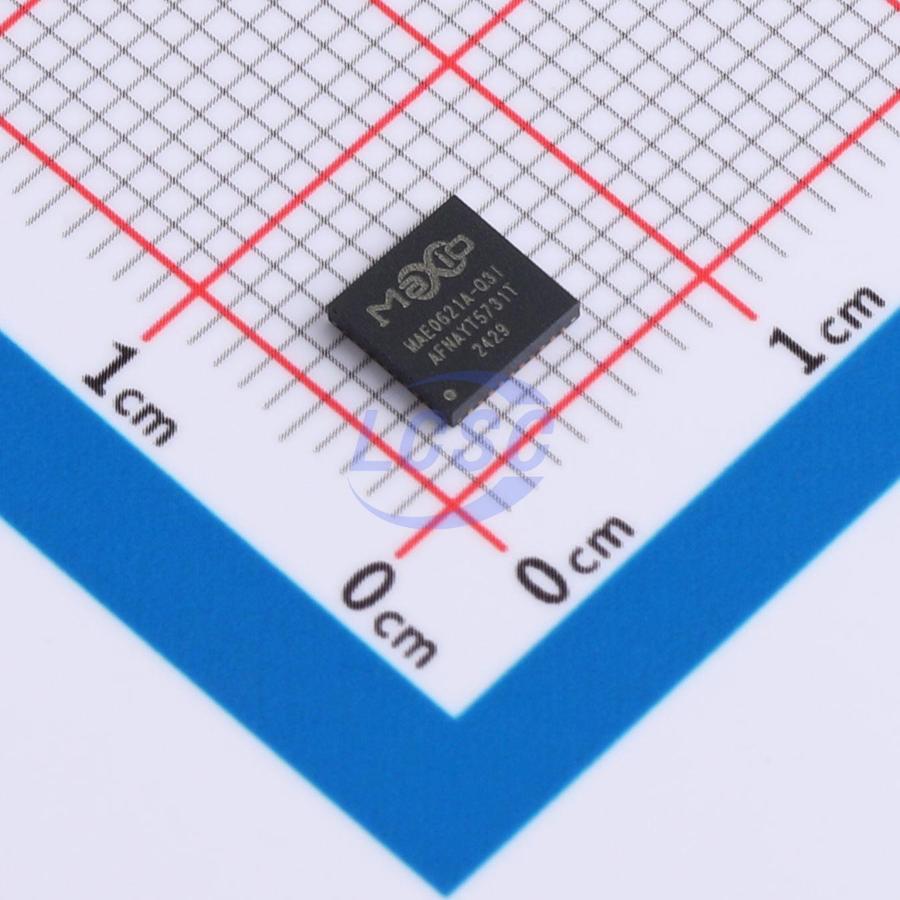

Maxio

MAE0621A-Q3I

Ethernet Transceiver RGMII QFN-40(5x5) Drivers, Receivers, Transceivers

QFN-40(5x5)RoHSActive

Manufacturer: Maxio
Manufacturer part #: MAE0621A-Q3I
Store part #: C49308069
Package / case: QFN-40(5x5)
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,794 in stock

#C49308069

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹236.59	₹236.59
10+	₹200.46	₹2,004.60
30+	₹178.05	₹5,341.50
100+	₹154.75	₹15,475.00
500+	₹144.31	₹72,155.00
1,000+	₹139.96	₹1,39,960.00

Quantity (min 1)

1 × ₹236.59

₹236.59

excl. GST

₹279.18 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

MAE0621A-Q3I

₹236.59 for 1 + GST

Specifications

Type: Ethernet Transceiver
Voltage - Supply: 1.5V;1.8V;2.5V;3.3V
Ethernet Speed Standards: 10BASE-T;100BASE-TX;1000BASE-T
Data Rate: 10Mbit/s;100Mbit/s;1Gbit/s
Operating Temperature: -40℃~+85℃
Features: Error detection and recovery;Programmable LED indication;Low-power mode
Interface: RGMII

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1 g

Overview

MAE0621A-Q3C and MAE0621A-Q3I are single-port Gigabit Ethernet transceivers integrating PHY and MAC layer functions, supporting 10/100/1000 Mbps data rates. These devices employ advanced DSP technology and analog front-end design to deliver reliable Gigabit Ethernet connectivity over standard CAT-5e or higher-grade twisted-pair cables. They support RGMII interface for MAC layer communication and include an MDIO management interface for configuration and status monitoring. The transceivers feature auto-negotiation, automatic polarity correction, and crossover detection, simplifying network deployment. Their low-power design suits energy-efficiency-sensitive applications, with integrated internal voltage regulators to minimize external component count.

Applications

Network switches
Routers
Network-attached storage
Industrial control equipment
Consumer networking products

Key features

Supports 10BASE-Te, 100BASE-TX, and 1000BASE-T Ethernet standards
Integrated 10/100/1000 Mbps full-duplex transceiver
Supports RGMII interface with clock frequencies of 125 MHz (1000 Mbps), 25 MHz (100 Mbps), and 2.5 MHz (10 Mbps)
Supports register configuration and status readback via MDIO interface
Supports auto-negotiation and parallel detection
Supports auto MDI/MDIX crossover detection and correction
Supports automatic polarity correction
Supports Energy Efficient Ethernet
Supports remote wake-up
Integrated 1.2V and 2.5V LDO regulators
48-pin QFN package
