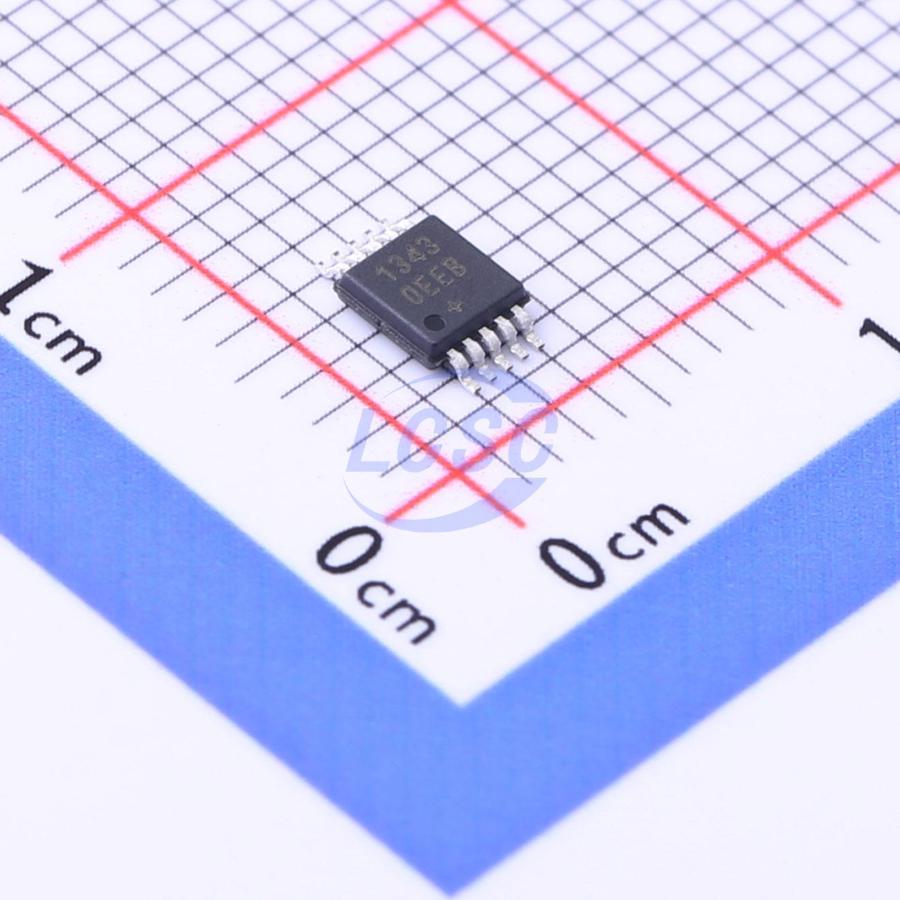

MAX13430EEUB+T

The MAX13430E–MAX13433E are full- and half-duplex RS-485 transceivers that feature an adjustable low-voltage logic interface for operation in multivoltage systems. This allows direct interfacing to low-voltage ASIC/FPGAs without extra components. The MAX13430E–MAX13433E RS-485 transceivers operate with a VCC voltage supply from +3V to +5V. The low-voltage logic interface operates with a voltage supply from +1.62V to VCC. The MAX13430E/MAX13432E feature reduced slewrate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error-free data transmission up to 500kbps. The MAX13431E/MAX13433E driver slew rates are not limited, enabling data transmission up to 16Mbps. The MAX13430E/MAX13431E are intended for half-duplex communications, and the MAX13432E/MAX13433E are intended for full-duplex communications.

Key features

• Wide ±3V to +5V Input Supply Range
• Low-Voltage Logic Interface +1.62V (min)
• Ultra-Low Supply Current in Shutdown Mode 10μA ICC (max), 1μA IL (max)
• Thermal Shutdown Protection
• Hot-Swap Input Structures on DE and RE
• 1/8-Unit Load Allows Up to 256 Transceivers on the Bus
• Enhanced Slew-Rate Limiting (MAX13430E/MAX13432E)
• Extended ESD Protection for RS-485 I/O Pins ±30kV Human Body Model ±15kV Air-Gap Discharge per IEC 61000-4-2 ±10kV Contact Discharge per IEC 61000-4-2
• Extended -40°C to +85°C Operating Temperature Range
• Space-Saving TDFN and μMAX Packages
