MAXIMDatasheet (PDF)

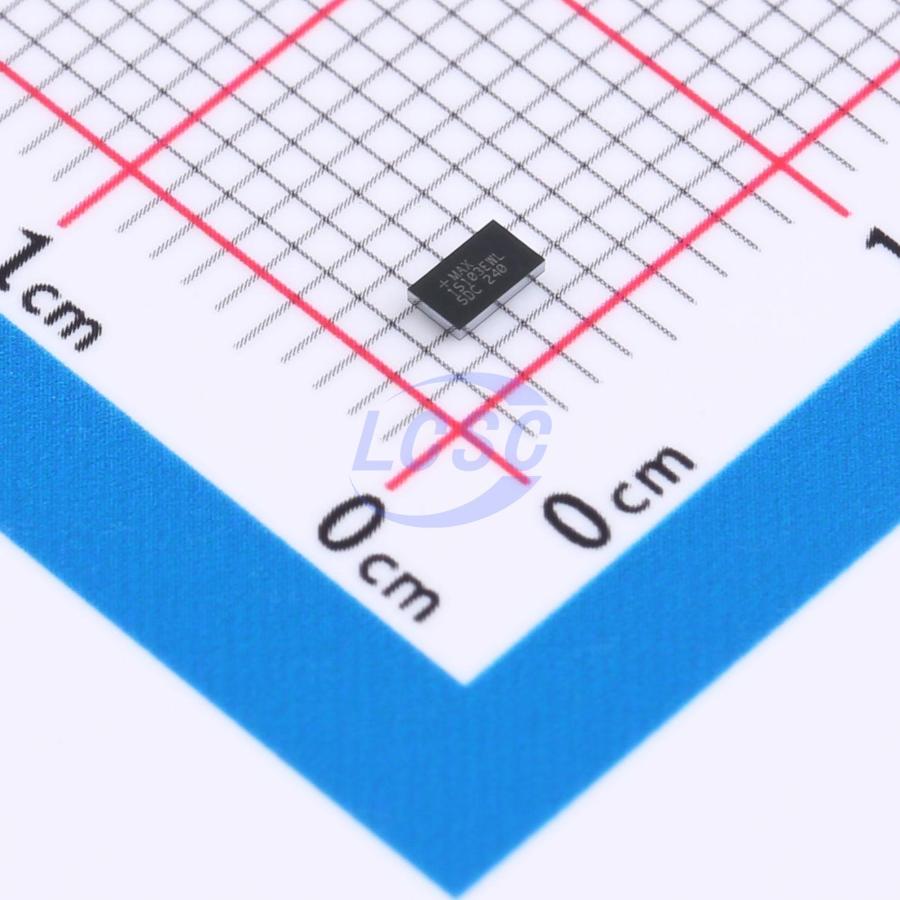

MAX15103EWL+T
600mV~5.2V Positive Adjustable WLP-15(1.6x2.7) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
WLP-15(1.6x2.7)ROHS3 CompliantActive
Small 3A, Low-Dropout Linear Regulator in a 2.7mm x 1.6mm Package
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX15103EWL+T
- Store part #
- C3745462
- Package / case
- WLP-15(1.6x2.7)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C3745462
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹930.90 | ₹930.90 |
| 10+ | ₹800.52 | ₹8,005.20 |
| 30+ | ₹721.22 | ₹21,636.60 |
| 100+ | ₹654.50 | ₹65,450.00 |
1 × ₹930.90
₹930.90
excl. GST
₹1,098.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX15103EWL+T
₹930.90 for 1 + GST
Specifications
- Output Voltage
- 600mV~5.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.8mA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 3A
- Features
- Enable control;Adjustable soft-start;Operating status indication;Input under-voltage protection;Short Circuit Protection;Over Current Protection;Thermal shutdown;Noise bypass terminal;Power supply timing control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.165 g
Overview
The MAX15103 is a small, low-dropout linear regulator optimized for networking, datacom, and server applications. The regulator delivers up to 3A from a 1.7V to 5.5V input supply with output accuracy of ±1.6%. The output is adjustable down to 0.6V with a guaranteed dropout voltage of less than 200mV at full load. The internal p-channel switch is protected with a foldback current limit and thermal shutdown. The MAX15103 features an external bypass input to reduce noise. This bypass input also serves as a soft-start control. An enable input and power-good output are included for power sequence control. The MAX15103 is available in a 1.6mm×2.7mm WLP package and is fully specified from the -40℃ to +85℃ operating temperature range.
Applications
- Networking
- Telecom/Datacom
- Servers
- Base Stations PLL Power
Key features
- 1.7V to 5.5V Operating Range
- 200mV Dropout Guaranteed at 3A
- ±1.6% Output Accuracy Over Line, Load, and Temperature
- Adjustable Output from 0.6V to 5.2V
- Foldback Current Protection
- Thermal Shutdown Protection
- Low Noise 15μV RMS (typ)
- Small 1.6mm x 2.7mm WLP Package
