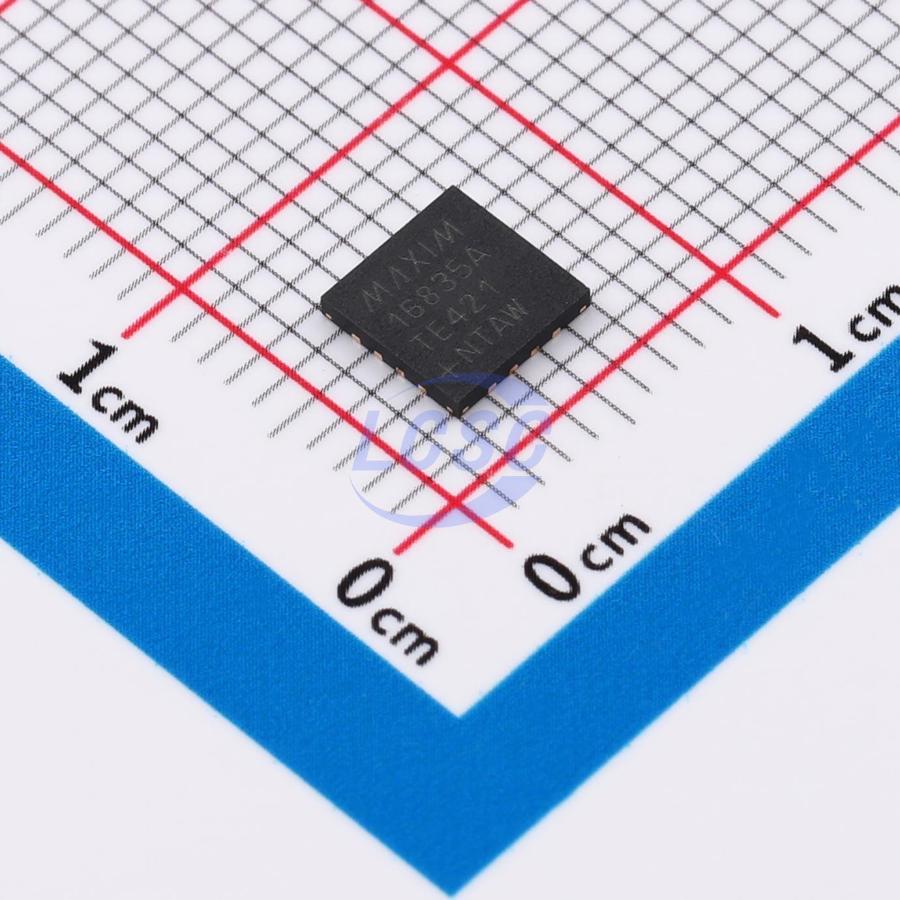

MAX16835ATE+T
PWM 1 350mA 6.5V~40V TQFN-16-EP(5x5) LED Drivers RoHS
TQFN-16-EP(5x5)ROHS3 CompliantActive
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX16835ATE+T
- Store part #
- C2679077
- Package / case
- TQFN-16-EP(5x5)
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,488 in stock
#C2679077
Stock & price checked 45 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹342.83 | ₹342.83 |
| 10+ | ₹326.52 | ₹3,265.20 |
| 30+ | ₹316.73 | ₹9,501.90 |
| 100+ | ₹306.71 | ₹30,671.00 |
| 500+ | ₹302.15 | ₹1,51,075.00 |
| 1,000+ | ₹300.19 | ₹3,00,190.00 |
1 × ₹342.83
₹342.83
excl. GST
₹404.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX16835ATE+T
₹342.83 for 1 + GST
Specifications
- Dimming
- PWM
- Number of Channels
- 1
- Switch tube (built-in/external)
- Built-in
- Operating Temperature
- -40℃~+125℃
- Output Current
- 350mA
- Features
- Short Circuit Protection;Over-Temperature Protection (OTP)
- Constant Current Accuracy
- 3.5%
- Voltage - Input(DC)
- 6.5V~40V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.248 g
Overview
Applications
- Automotive Interior: Map, Courtesy, and Cluster Lighting
- Automotive Exterior: Tail Lights and CHMSL
- Warning Lights for Emergency Vehicles
- Navigation and Marine Indicators
- General Illumination
- Signage, Gasoline Canopies, Beacons
Key features
- 6.5V to 40V input voltage range
- Delivers up to a total of 350mA to one or more strings of high-brightness LEDs
- Output current adjusted by using an external current-sense resistor in series with the LEDs
- Enable input allows wide-range “pulsed” dimming
- Wave-shaping circuitry reduces EMI
- Differential current-sense input increases noise immunity
- Well suited for applications requiring high-voltage input and can withstand automotive load-dump events up to 40V
- On-board pass element minimizes external components while providing ±3.5% output current accuracy
- 5V regulated output
- Short-circuit and thermal protection
- Available in a thermally enhanced, 5mm x 5mm, 16-pin TQFN package
- Specified over the automotive -40°C to +125°C temperature range
- Adjustable LED Current (35mA to 350mA)
- Integrated Pass Element with Low-Dropout Voltage (0.55V typ)
- Output Short-Circuit Protection
- +5V Regulated Output with 4mA Source Capability
- Thermal Shutdown
- Differential LED Current Sense
- High-Voltage Enable Pin for Dimming Interface
- Low Shutdown Supply Current (35μA typ)
- Low 200mV Current-Sense Reference Reduces Power Losses
- Wave-Shaped Edges Reduce Radiated EMI During PWM Dimming
- -40°C to +125°C Operating Temperature Range
