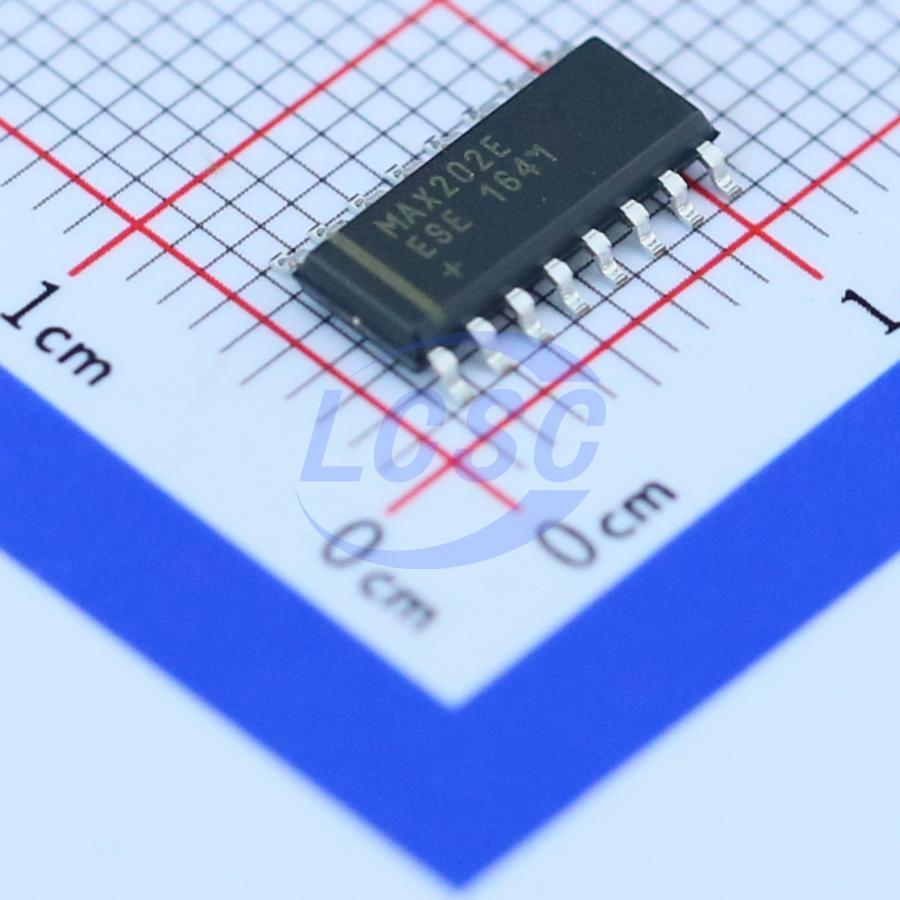

MAX202EESE+T

The MAX202E–MAX213E, MAX232E/MAX241E line drivers/receivers are designed for RS-232 and V.28 communications in harsh environments. Each transmitter output and receiver input is protected against ±15kV electrostatic discharge (ESD) shocks, without latchup. The drivers and receivers for all ten devices meet all EIA/TIA-232E and CCITT V.28 specifications at data rates up to 120kbps, when loaded in accordance with the EIA/TIA-232E specification. The MAX211E/MAX213E/MAX241E are available in 28-pin SO packages, as well as a 28-pin SSOP that uses 60% less board space. The MAX202E/MAX232E come in 16-pin TSSOP, narrow SO, wide SO, and DIP packages. The MAX203E comes in a 20-pin DIP/SO package, and needs no external charge-pump capacitors. The MAX205E comes in a 24-pin wide DIP package, and also eliminates external charge-pump capacitors. The MAX206E/MAX207E/MAX208E come in 24-pin SO, SSOP, and narrow DIP packages. The MAX232E/MAX241E operate with four 1µF capacitors, while the MAX202E/MAX206E/MAX207E/MAX208E/ MAX211E/MAX213E operate with four 0.1µF capacitors, further reducing cost and board space.

Applications

• Notebook, Subnotebook, and Palmtop Computers
• Battery-Powered Equipment
• Hand-Held Equipment

Key features

• For Low-Voltage Applications MAX3222E/MAX3232E/MAX3237E/MAX3241E/ MAX3246E: ±15kV ESD-Protected Down to 10nA, +3.08 to +5.5V, Up to 1Mbps, True RS-232 Transceivers (MAX3246E Available in a UCSP Package)
• For Low-Power Applications MAX3221/MAX3223/MAX3243: 1μA Supply Current, True ±3V to +5.5V RS-232 Transceivers with Auto-Shutdown
• For Space-Constrained Applications MAX3233E/MAX3235E: ±15kV ESD-Protected, 1μA, 250kbps, +3.0V/+5.5V, Dual RS-232 Transceivers with Internal Capacitors
• For Low-Voltage or Data Cable Applications MAX3380E/MAX3381E: +2.35V to +5.5V, 1μA, 2Tx/2Rx RS-232 Transceivers with ±15kV ESD-Protected I/O and Logic Pins
