TIDatasheet (PDF)

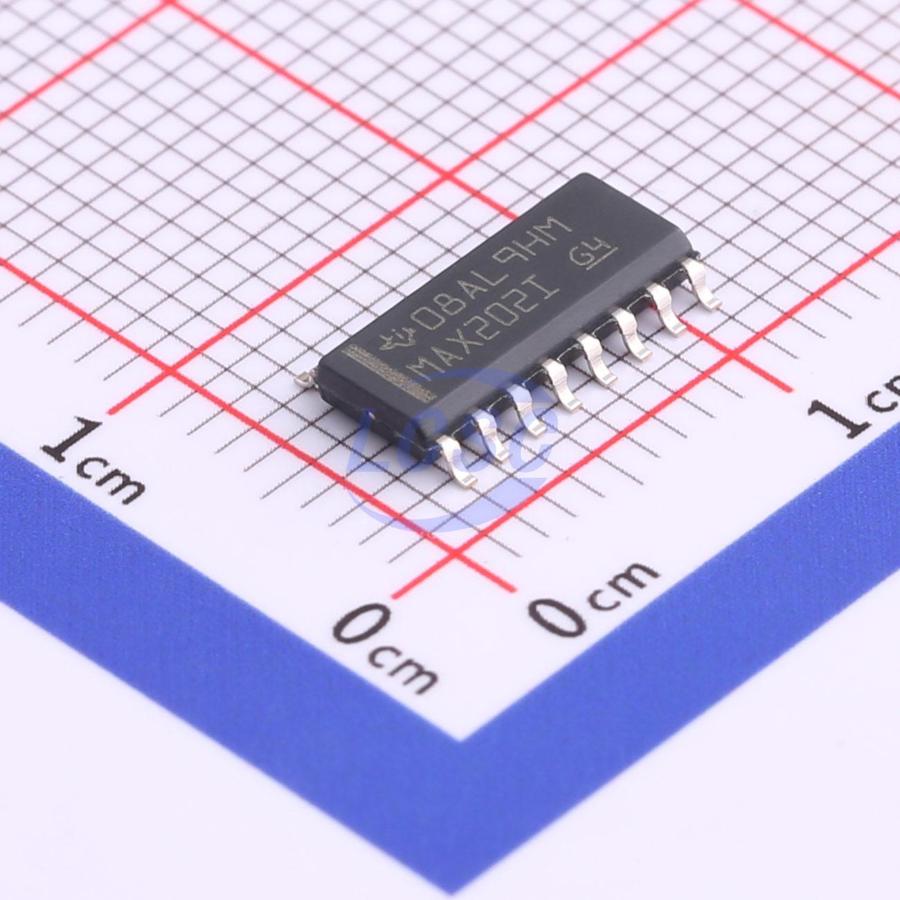

MAX202IDR
4.5V~5.5V Transceiver 120Kbps SOIC-16 Drivers, Receivers, Transceivers RoHS
SOIC-16ROHS CompliantActive
Dual RS-232 Line Driver and Receiver With ±15-kV ESD Protection
- Manufacturer
- TI
- Manufacturer part #
- MAX202IDR
- Store part #
- C544537
- Package / case
- SOIC-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,176 in stock
#C544537
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹101.99 | ₹101.99 |
| 10+ | ₹82.85 | ₹828.50 |
| 30+ | ₹73.07 | ₹2,192.10 |
| 100+ | ₹63.72 | ₹6,372.00 |
| 500+ | ₹57.84 | ₹28,920.00 |
| 1,000+ | ₹55.02 | ₹55,020.00 |
1 × ₹101.99
₹101.99
excl. GST
₹120.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX202IDR
₹101.99 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- Transceiver
- Data Rate
- 120Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 8mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.211 g
Overview
The MAX202 device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 5-V supply. The device operates at data signaling rates up to 120 kbit/s and a maximum of 30-V/μs driver output slew rate.
Applications
- Battery-Powered Systems
- Notebooks
- Laptops
- Palmtop PCs
- Hand-Held Equipment
Key features
- Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards
- ESD Protection for RS-232 Bus Pins: ±15-kV Human-Body Model
- Operates at 5-V VCC Supply
- Operates Up to 120 kbit/s
- Two Drivers and Two Receivers
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX202EIM/TR#C519090HGSEMI · SOP-16 | HGSEMI | SOP-16 | 385 | ₹42.55 · 385 in stock | View |
 | SP202EIM/TR#C519091HGSEMI · SOP-16 | HGSEMI | SOP-16 | 135 | ₹38.37 · 135 in stock | View |
 | MAX232EIDR#C273639TI · SOIC-16 | TI | SOIC-16 | 6 | ₹88.52 · 6 in stock | View |
 | MAX202CD#C354105TI · SOIC-16 | TI | SOIC-16 | 85 | ₹308.35 · 85 in stock | View |
 | MAX202-HXY#C22386551HXY MOSFET · SOP-16 | HXY MOSFET | SOP-16 | 58 | ₹54.72 · 58 in stock | View |
