UMWDatasheet (PDF)

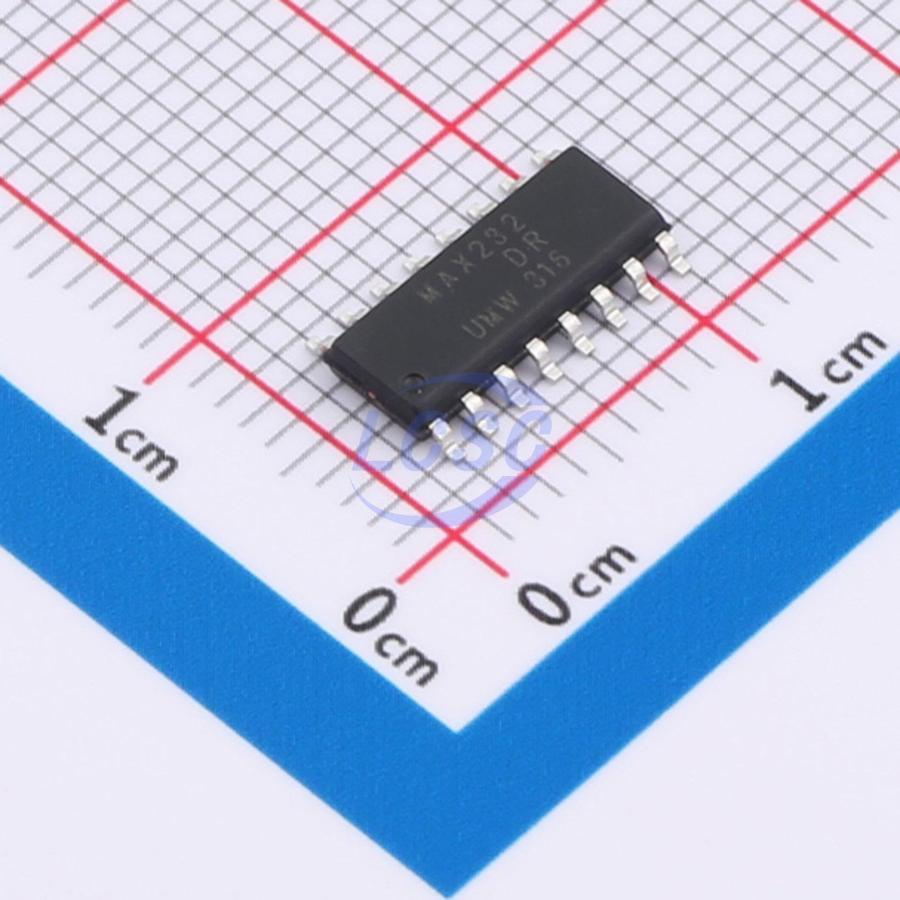

MAX232DR(UMW)
Transceiver 5V 120Kbps SOP-16 Drivers, Receivers, Transceivers RoHS
SOP-16ROHS CompliantActive
+5 V-Powered,Multi-Channel RS-232 Drivers/Receivers
- Manufacturer
- UMW
- Manufacturer part #
- MAX232DR(UMW)
- Store part #
- C5721297
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,220 in stock
#C5721297
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.54 | ₹202.70 |
| 50+ | ₹31.71 | ₹1,585.50 |
| 150+ | ₹27.93 | ₹4,189.50 |
| 500+ | ₹23.21 | ₹11,605.00 |
| 2,500+ | ₹21.12 | ₹52,800.00 |
| 5,000+ | ₹19.85 | ₹99,250.00 |
5 × ₹40.54
₹202.70
excl. GST
₹239.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX232DR(UMW)
₹202.70 for 5 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 5V
- Data Rate
- 120Kbps
- Operating Temperature
- 0℃~+70℃
- ESD Protect
- ±2kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 10mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.301 g
Overview
UMW MAX232 features two drivers and two receivers. When loaded in accordance with EIA/TIA-232 specifications, the drivers and receivers meet all EIA/TIA-232 and CCITT V.28 specifications at data rates up to 120kbps.
Key features
- Single +5V supply
- Guaranteed 120kbps data rate
- Latch-up free
- ESD protection ±2kV
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX232CSE(UMW)#C5721294UMW · SOP-16 | UMW | SOP-16 | 1,105 | ₹41.04 · 1,105 in stock | View |
 | MAX232ACSE(UMW)#C5721298UMW · SOP-16 | UMW | SOP-16 | 2,380 | ₹49.40 · 2,380 in stock | View |
 | MAX232D(UMW)#C5721300UMW · SOP-16 | UMW | SOP-16 | 220 | ₹39.66 · 220 in stock | View |
 | ST232CDR(UMW)#C19185932UMW · SOP-16 | UMW | SOP-16 | 2,525 | ₹40.71 · 2,525 in stock | View |
 | MAX232IDR(UMW)#C5721295UMW · SOP-16 | UMW | SOP-16 | 3,165 | ₹46.21 · 3,165 in stock | View |
