XBLWDatasheet (PDF)

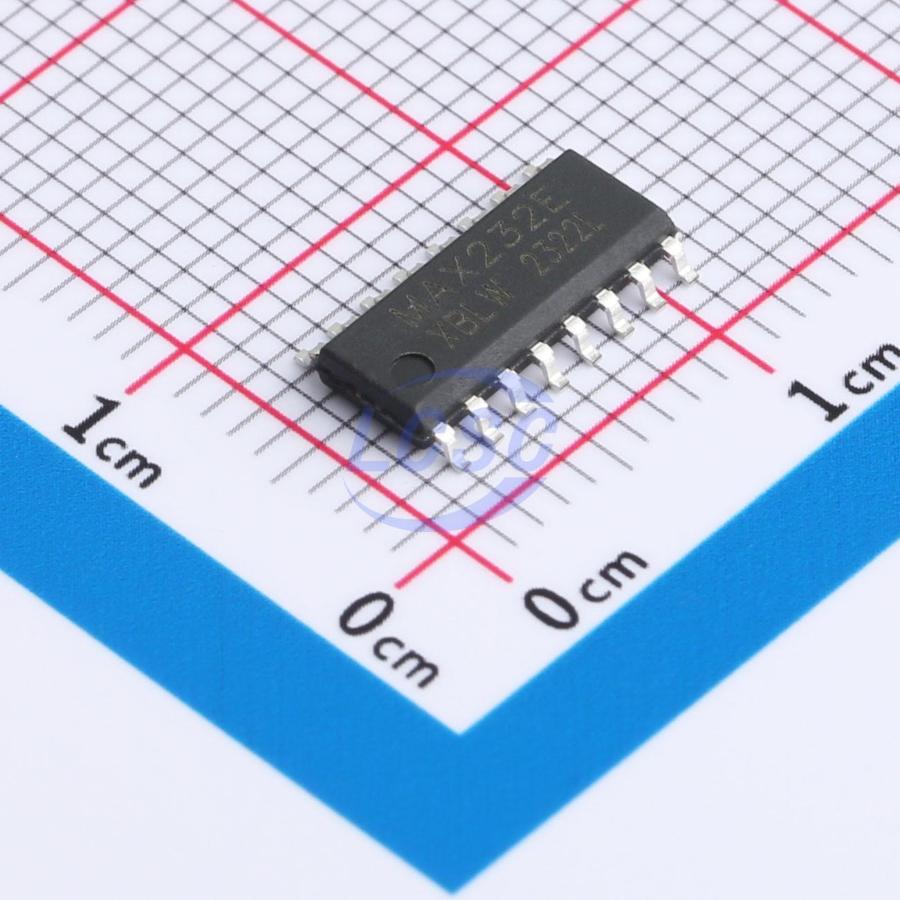

MAX232EDTR(XBLW)
5V Transceiver 120Kbps SOP-16 Drivers, Receivers, Transceivers RoHS
SOP-16ROHS CompliantActive
5V Dual channel RS-232 Drivers/Receivers
- Manufacturer
- XBLW
- Manufacturer part #
- MAX232EDTR(XBLW)
- Store part #
- C18723555
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,250 in stock
#C18723555
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.08 | ₹195.40 |
| 50+ | ₹30.52 | ₹1,526.00 |
| 150+ | ₹26.86 | ₹4,029.00 |
| 500+ | ₹22.28 | ₹11,140.00 |
| 2,500+ | ₹20.24 | ₹50,600.00 |
| 5,000+ | ₹19.02 | ₹95,100.00 |
5 × ₹39.08
₹195.40
excl. GST
₹230.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX232EDTR(XBLW)
₹195.40 for 5 + GST
Specifications
- Voltage - Supply
- 5V
- Type
- Transceiver
- Data Rate
- 120Kbps
- Operating Temperature
- -40℃~+85℃
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Automatic level shifting;Short-Circuit Protection
- Number of Receivers
- 2
- Quiescent Supply Current
- 14mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.3 g
Overview
The MAX232 is a dual driver/receiver of RS-232 standard with a single supply voltage and bipolar output voltage of the transmitter formed by a built-In voltage multiplying generator on four 1.0μF external capacitors, designed for use in state-of-the-art high performance computing systems, high-speed electronic devices with high reliability of information exchange between remote objects. Input voltage levels are compatible with standard CMOS and TTL levels.
Applications
- Portable Computers
- Battery-Powered RS-232 Systems
- Interface Translation
- Low-Power Modems
- Terminals
Key features
- Output voltage levels are compatible with input levels of CMOS and TTL integrated circuits
- Meets All EIA/TIA-232E and V.28/V.24 Specifications
- Supply voltage range from 5.5V
- Low input current: 1.0μA at 25°C
- Output current 30 mA
- Available in SOP-16 Package
