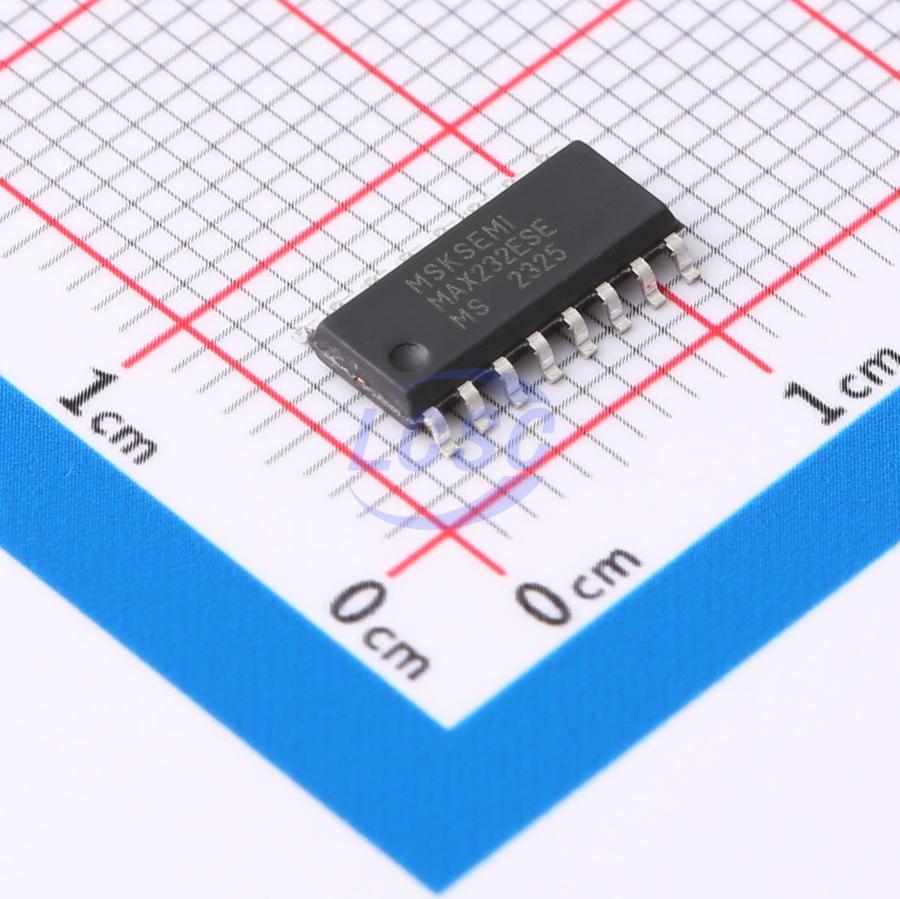

MAX232ESE-MS
Transceiver 5V 120Kbps SOP-16 Drivers, Receivers, Transceivers
SOP-16RoHSActive
MAX232E Product Manual
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MAX232ESE-MS
- Store part #
- C7434438
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,110 in stock
#C7434438
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.15 | ₹59.15 |
| 10+ | ₹45.88 | ₹458.80 |
| 30+ | ₹40.23 | ₹1,206.90 |
| 100+ | ₹33.27 | ₹3,327.00 |
| 500+ | ₹30.23 | ₹15,115.00 |
| 1,000+ | ₹28.27 | ₹28,270.00 |
1 × ₹59.15
₹59.15
excl. GST
₹69.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX232ESE-MS
₹59.15 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 5V
- Data Rate
- 120Kbps
- Operating Temperature
- -40℃~+85℃
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 5mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.407 g
Overview
MAX232E is a 5V single-supply, dual-channel, low-power RS-232 transceiver that fully meets TIA/EIA-232 standard requirements. MAX232E includes two drivers and two receivers, all of which can be used independently. The receivers convert RS-232 signals to CMOS logic output levels. EIA/TIA-232E defines voltages greater than 3V as logic 0. All receivers in MAX232E are inverting, so the receiver response to TTL levels is consistent with EIA/TIA-232E levels. Operating from a 5V supply, the charge pump requires only four external 1uF capacitors, achieving error-free data transmission at rates of at least 120Kbps. Both drivers and receivers can be independently enabled and disabled, with each driver and receiver usable independently.
Key features
- 5V±10% supply voltage
- Dual channel
- 120kbps data rate
- Driver input compatible with TTL/CMOS logic levels
- RS232 output compatible with TTL-level input circuits
- Receiver input impedance minimum 3KΩ
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP232EEN-MS#C7434439MSKSEMI · SOP-16 | MSKSEMI | SOP-16 | 605 | ₹48.02 · 605 in stock | View |
