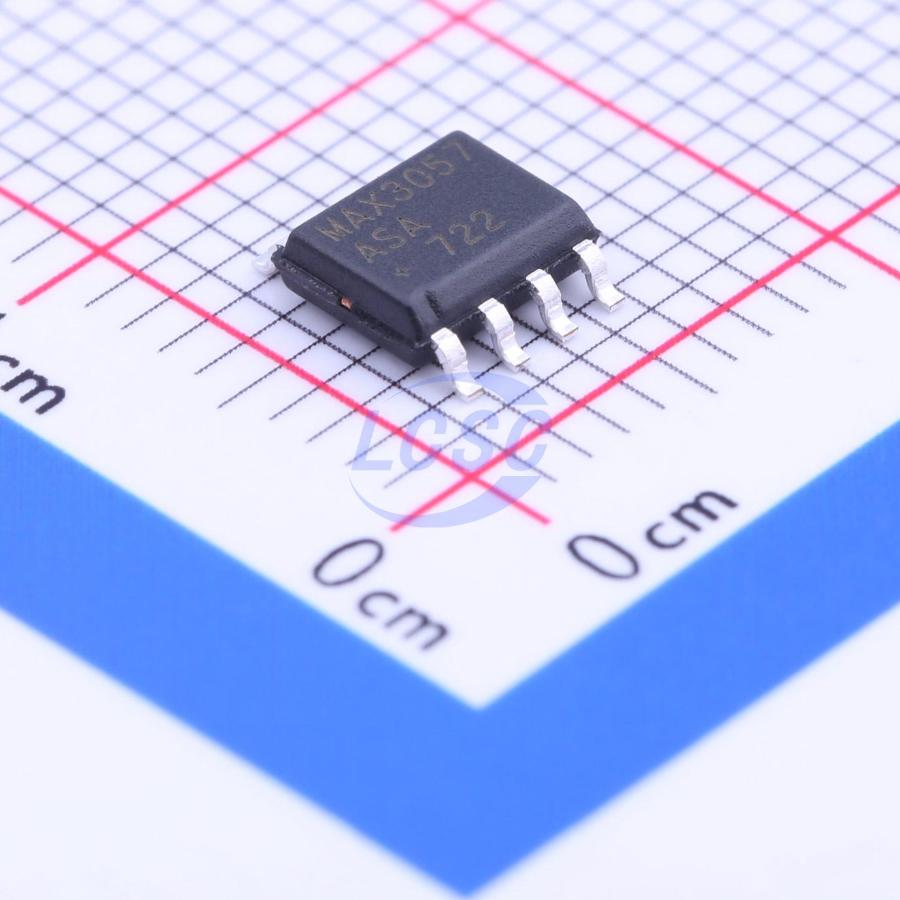

MAX3057ASA+T
5V CAN Transceiver 2Mbps SOIC-8 Drivers, Receivers, Transceivers RoHS
SOIC-8ROHS3 CompliantActive
±80V Fault-Protected, 2Mbps, Low Supply Current CAN Transceivers
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX3057ASA+T
- Store part #
- C39879
- Package / case
- SOIC-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,585 in stock
#C39879
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹461.77 | ₹461.77 |
| 10+ | ₹401.78 | ₹4,017.80 |
| 30+ | ₹364.20 | ₹10,926.00 |
| 100+ | ₹289.66 | ₹28,966.00 |
| 500+ | ₹272.27 | ₹1,36,135.00 |
| 1,000+ | ₹264.68 | ₹2,64,680.00 |
1 × ₹461.77
₹461.77
excl. GST
₹544.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX3057ASA+T
₹461.77 for 1 + GST
Specifications
- Voltage - Supply
- 5V
- Type
- CAN Transceiver
- number of channels
- 1
- Data Rate
- 2Mbps
- Operating Temperature
- -40℃~+125℃
- Features
- Low-power mode;Thermal shutdown protection;Bus fault protection
- Supply Current
- 72mA
- Quiescent Supply Current
- 260uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.219 g
Overview
The MAX3050/MAX3057 interface between the protocol controller and the physical wires of the bus lines in a CAN. They are primarily intended for automotive applications requiring data rates up to 2Mbps and feature ±80V fault protection against shorts in high-voltage systems. This fault protection allows the devices to withstand up to ±80V with respect to ground with no damage to the device. The built-in fault tolerance allows the device to survive in industrial and automotive environments with no external protection devices.
Applications
- Automotive Systems
- HVAC Controls
- Telecom 72V systems
Key features
- ±80V Fault Protection for 42V Systems
- Four Operating Modes: High-Speed Operation Up to 2Mbps, Slope-Control Mode to Reduce EMI (40kbps to 500kbps), Standby Mode, Low-Current Shutdown Mode
- AutoShutdown when Device Is Inactive (MAX3050)
- Automatic Wake-Up from Shutdown (MAX3050)
- Thermal Shutdown
- Current Limiting
- Fully Compatible with the ISO 11898 Standard
