HGSEMI

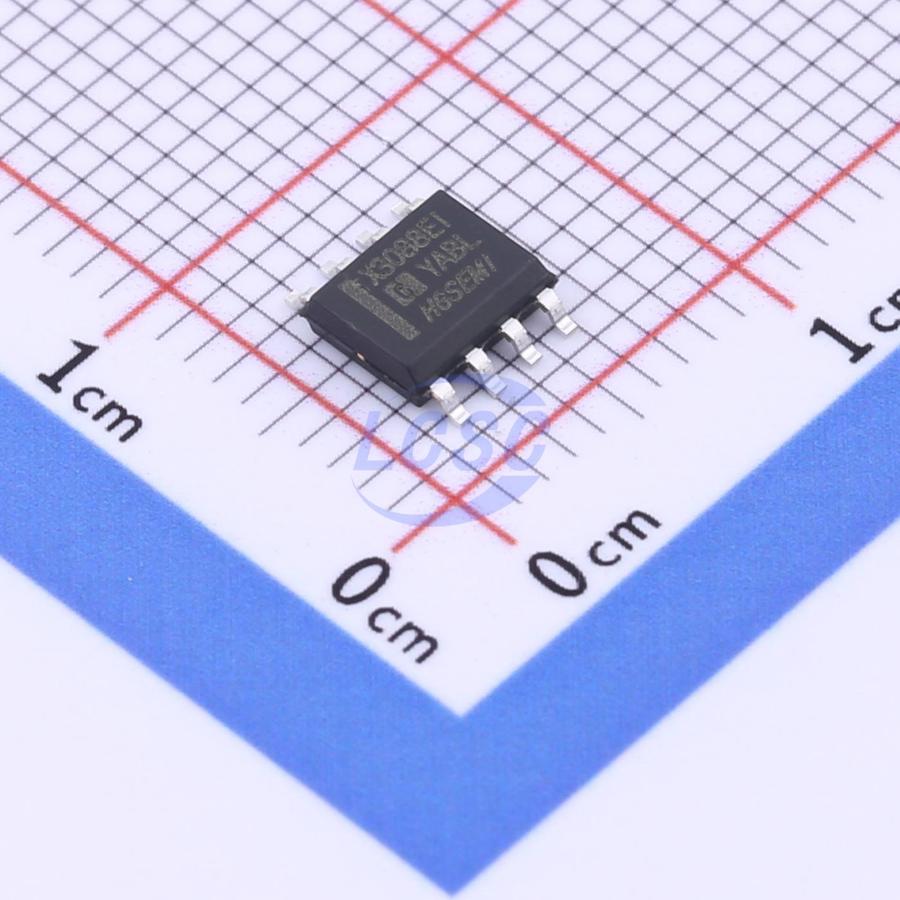

MAX3088EIM/TR

1/1 Transceiver Half RS422, RS485 SOP-8

SOP-8RoHSActive

5V RS485 transceiver with hot-plugging, fail-safe, and ±16kV ESD protection

Manufacturer: HGSEMI
Manufacturer part #: MAX3088EIM/TR
Store part #: C2902475
Package / case: SOP-8
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,514 in stock

#C2902475

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹85.19	₹85.19
10+	₹69.33	₹693.30
30+	₹61.28	₹1,838.40
100+	₹53.46	₹5,346.00
500+	₹45.42	₹22,710.00
1,000+	₹43.04	₹43,040.00

Quantity (min 1)

1 × ₹85.19

₹85.19

excl. GST

₹100.52 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

MAX3088EIM/TR

₹85.19 for 1 + GST

Specifications

Voltage - Supply: 4.5V~5.5V
Type: Transceiver
Data Rate: 16Mbps
Number of Nodes: 256
Operating Temperature: -40℃~+85℃
ESD Protect: ±16kV
Communication Mode: Half-Duplex
Number of Drivers: 1
Features: Hot-swap protection;Low-power mode;Overcurrent Protection;Thermal shutdown protection
Number of Receivers: 1
Quiescent Supply Current: 1mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.226 g

Overview

The MAX3080E–MAX3088E are +5.0V-powered RS-485/RS-422 transceivers with ±16kV ESD protection. They feature a failsafe circuit that drives the receiver output to a logic-high state when the receiver inputs are open or shorted, or when all drivers connected to a terminated bus are disabled. All devices support hot-plug capability, eliminating glitch transients on the bus during power-up or hot insertion. The MAX3080E–MAX3088E drivers deliver an exceptionally large output voltage swing (exceeding 2.1V into a 54Ω load), ensuring greater noise margin. The MAX3080E–MAX3085E feature slew-rate-limited drivers that reduce EMI and reflections caused by improperly terminated cables, enabling error-free data transmission at up to 500kbps. The MAX3086E/MAX3087E/MAX3088E drivers are not slew-rate limited, supporting data rates up to 16Mbps. The MAX3082E/MAX3085E/MAX3088E are designed for half-duplex communications; the MAX3080E/MAX3081E/MAX3083E/MAX3084E/MAX3086E/MAX3087E are designed for full-duplex communications. All devices feature 1/8-unit-load receiver input impedance, allowing up to 256 transceivers on the bus. The MAX3081E/MAX3082E/MAX3084E/MAX3085E/MAX3087E/MAX3088E are available in DIP-8, SOP-8, and MSOP-8 packages; the MAX3080E/MAX3083E/MAX3086E are available in DIP-14, SOP-14, and TSSOP-14 packages. These devices are offered in both commercial and industrial temperature grades.

Applications

RS-422/RS-485 communication
Digital electric/water meters
Industrial control
Industrial embedded computers and peripherals
Security surveillance systems
Routers and switches
Instrumentation
Level translation
EMI-sensitive transceiver applications

Key features

True fail-safe receiver with low-power shutdown mode (except MAX3081E/MAX3084E/MAX3087E)
DE and RE̅ with hot-swap input structure
+5.0V supply voltage, up to 256 transceivers on bus, slew-rate limiting for error-free data transmission (except MAX3086E/MAX3087E/MAX3088E)
Enhanced ESD protection on I/O pins (±16kV IEC 61000-4-2 model)
Drop-in replacement for MAX13080E–88E series and SN65HVD3085, SN75HVD3085 series
