HGSEMIDatasheet (PDF)

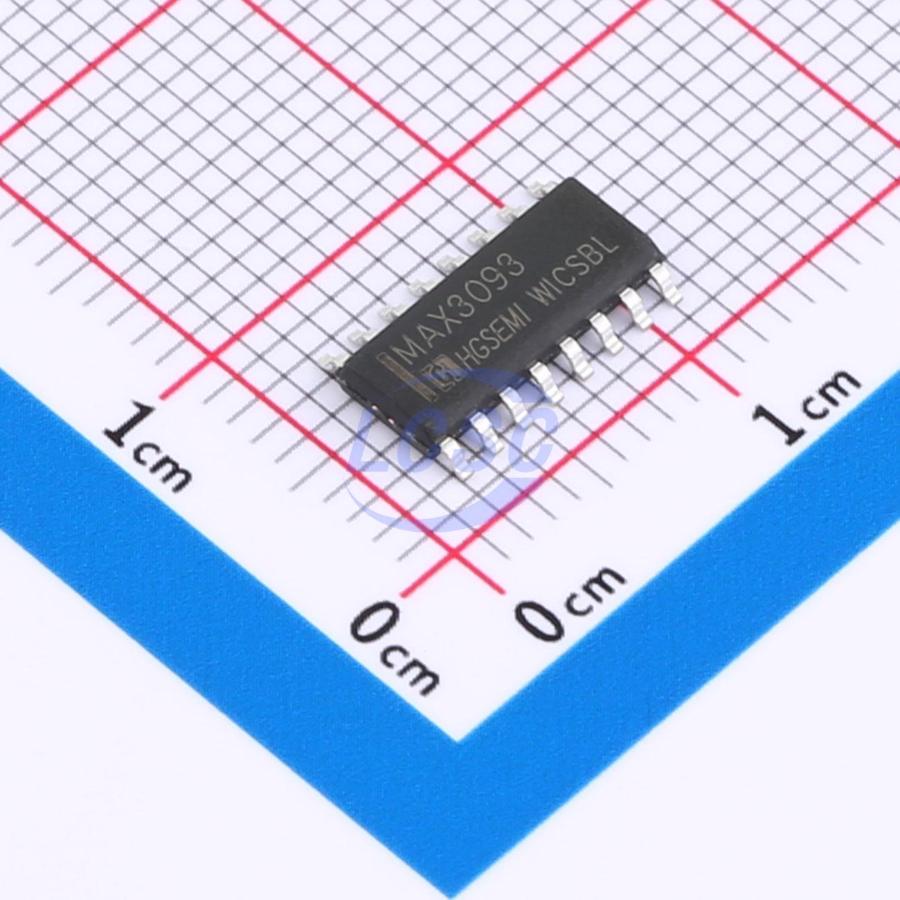

MAX3093M/TR
0/4 Receiver RS422, RS485 SOP-16
SOP-16RoHSActive
Quad CMOS Differential Line Receiver
- Manufacturer
- HGSEMI
- Manufacturer part #
- MAX3093M/TR
- Store part #
- C48031097
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,465 in stock
#C48031097
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹99.49 | ₹99.49 |
| 10+ | ₹89.79 | ₹897.90 |
| 30+ | ₹84.63 | ₹2,538.90 |
| 100+ | ₹78.60 | ₹7,860.00 |
| 500+ | ₹75.79 | ₹37,895.00 |
| 1,000+ | ₹74.72 | ₹74,720.00 |
1 × ₹99.49
₹99.49
excl. GST
₹117.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX3093M/TR
₹99.49 for 1 + GST
Specifications
- Voltage - Supply
- 4.75V~5.25V
- Type
- Receiver
- Operating Temperature
- -40℃~+85℃
- Number of Drivers
- 0
- Features
- Tx/Rx enable;Enable shutdown
- Number of Receivers
- 4
- Quiescent Supply Current
- 12mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.288 g
Overview
The MAX3093 is a quad differential line receiver designed to meet the requirements of RS-422, RS-423, and Federal Standards 1020 and 1030 for balanced and unbalanced digital data transmission, while maintaining the low-power characteristics of CMOS. The device offers 200 mV input sensitivity over a ±7V common-mode input voltage range. Built-in hysteresis improves noise margin and suppresses output instability caused by slowly changing input waveforms. Independent enable pins allow separate control of each receiver pair. The three-state outputs provide 6 mA source and sink current capability. The MAX3093 is pin-compatible with the DS3486.
Key features
- Low-power CMOS design with ±0.2V sensitivity across the entire common-mode range
- Typical propagation delay: 20 ns
- Typical input hysteresis: 50 mV
- No line loading at inputs when VCC = 0V
- Meets EIA standard RS-422 requirements
- Three-state outputs for easy connection to system bus
