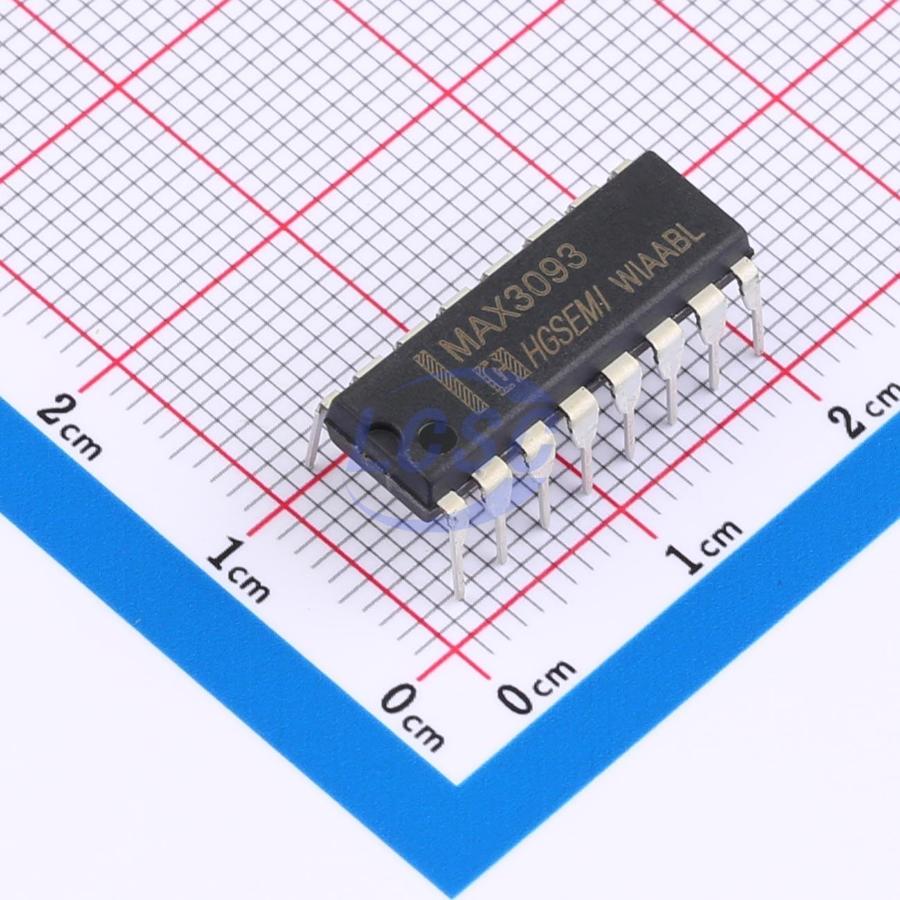

MAX3093N

The MAX3093 is a quad differential line receiver designed to meet the requirements of RS-422, RS-423, and Federal Standards 1020 and 1030 for balanced and unbalanced digital data transmission, while maintaining the low-power characteristics of CMOS. The device offers 200 mV input sensitivity over a ±7V common-mode input voltage range. Built-in hysteresis improves noise margin and suppresses output instability caused by slowly changing input waveforms. Independent enable pins allow separate control of each receiver pair. The three-state outputs provide 6 mA source and sink current capability. The MAX3093 is pin-compatible with the DS3486.

Key features

• Low-power CMOS design with ±0.2V sensitivity across the entire common-mode range
• Typical propagation delay: 20 ns
• Typical input hysteresis: 50 mV
• No line loading at inputs when VCC = 0V
• Meets EIA standard RS-422 requirements
• Three-state outputs for easy connection to system bus
