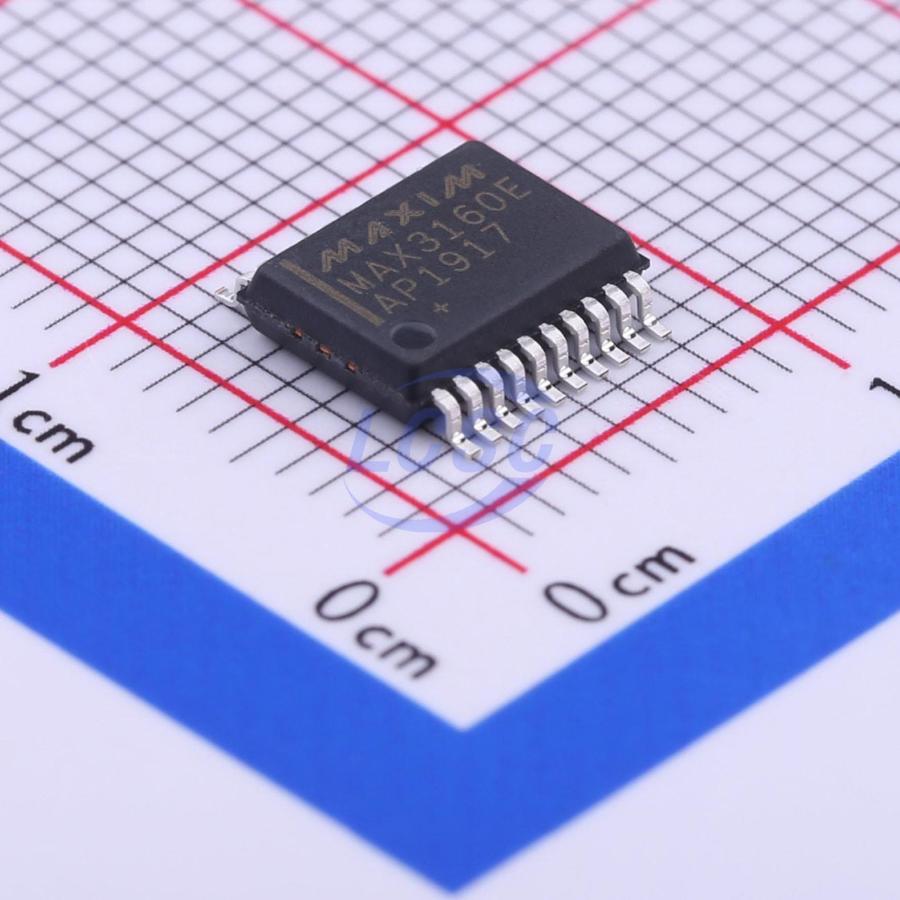

MAX3160EAP+T

3V~5.5V SSOP-20 Drivers, Receivers, Transceivers RoHS

SSOP-20ROHS3 CompliantActive

RS-232/RS-485/422 Multiprotocol Transceivers

Manufacturer: MAXIM
Manufacturer part #: MAX3160EAP+T
Store part #: C406604
Package / case: SSOP-20
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,055 in stock

#C406604

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹649.35	₹649.35
10+	₹557.46	₹5,574.60
30+	₹502.71	₹15,081.30
100+	₹447.53	₹44,753.00
500+	₹422.12	₹2,11,060.00
1,000+	₹410.61	₹4,10,610.00

Quantity (min 1)

1 × ₹649.35

₹649.35

excl. GST

₹766.23 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

MAX3160EAP+T

₹649.35 for 1 + GST

Specifications

Voltage - Supply: 3V~5.5V
Data Rate: 250Kbps;1Mbps;10Mbps
Operating Temperature: -40℃~+85℃
Supply Current: 6mA
Quiescent Supply Current: 10uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.231 g

Overview

The MAX3160/MAX3161/MAX3162 are programmable +3V to +5.5V RS-232/RS-485/422 multiprotocol transceivers. The MAX3160/MAX3161 are pin programmable as a 2TX/2RX RS-232 interface or a single RS-485/422 transceiver. The MAX3162 is configured as a 2TX/2RX RS-232 interface and a single RS-485/422 transceiver simultaneously. All devices incorporate a proprietary low-dropout transmitter output stage and an on-board dual charge pump to allow RS-232 and RS-485/422 compliant performance from a +3V to +5.5V supply. These devices also feature pin-selectable transmitter slew rates for both RS-232 and RS-485/422 modes. Slew-rate limiting minimizes EMI and reduces reflections caused by improperly terminated cables, allowing error-free data transmission up to 250kbps. Disabling slew-rate limiting allows these devices to transmit at data rates up to 10Mbps in RS-485/422 mode and up to 1Mbps in RS-232 mode. The MAX3160/MAX3162 offer a flow-through pinout that facilitates board layout. The MAX3160/MAX3161/MAX3162 are available in tiny SSOP packages and operate from -40℃ to +85℃

Applications

Point-of-Sales Equipment Peripherals
Industrial Controls
Networking
RS-232 to RS-485 Interface Converters

Key features

Flexible Options for RS-232 and RS-422/485 Operation in One Package
Simultaneous 2TX/2RX RS-232 and Half-Duplex RS-485 Transceiver Operation (MAX3162)
Pin-Programmable as Either 2TX/2RX RS-232 or Half/Full RS-485 Transceiver (MAX3160, MAX3161)
Integrated Protection Increases Robustness
Transmitters and Receivers Protected Against Wiring Faults
True Fail-Safe Receiver Prevents False Transition on Receiver Input Short or Open
Short-Circuit Protection Over the Entire Common-Mode Voltage Range
Thermal Protection from Excessive Power Dissipation
Slew Rate Limiting Minimizes EM and Reduces Cable Reflections
Integrated Charge-Pump Circuitry Saves Board Space
Eliminates the Need for a Bipolar ±12V Supply
Enables Single-Supply Operation From +3V to +5.5V Voltage Supply
1μA Shutdown Supply Current Saves Power
Allows Up to 256 Transceivers on the Bus
