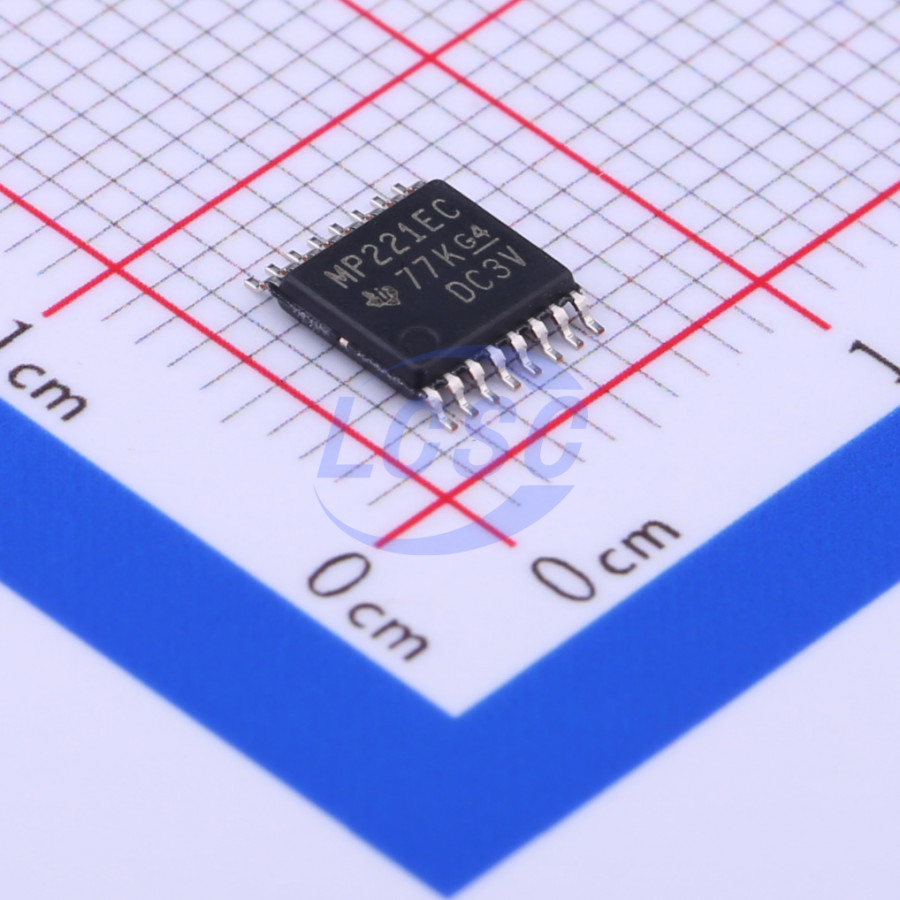

MAX3221ECPWR
Transceiver 3V~5.5V 250Kbps TSSOP-16 Drivers, Receivers, Transceivers RoHS
TSSOP-16ROHS CompliantActive
3-V to 5.5-V Single-Channel RS-232 Line Driver/Receiver With ESD Protection
- Manufacturer
- TI
- Manufacturer part #
- MAX3221ECPWR
- Store part #
- C350553
- Package / case
- TSSOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,234 in stock
#C350553
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹261.83 | ₹261.83 |
| 10+ | ₹216.14 | ₹2,161.40 |
| 30+ | ₹187.40 | ₹5,622.00 |
| 100+ | ₹158.24 | ₹15,824.00 |
| 500+ | ₹144.96 | ₹72,480.00 |
| 1,000+ | ₹139.30 | ₹1,39,300.00 |
1 × ₹261.83
₹261.83
excl. GST
₹308.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
MAX3221ECPWR
₹261.83 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- 0℃~+70℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 1
- Features
- Low-power mode
- Number of Receivers
- 1
- Quiescent Supply Current
- 1mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.207 g
Overview
MAX3221E is a single-driver, single-receiver RS-232 solution powered by a single Vcc supply. The RS-232 pins provide IEC 61000-4-2 ESD protection. The device complies with TIA/EIA-232-F and provides an electrical interface between an asynchronous communication controller and a serial port connector. A charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. These devices operate at data signaling rates up to 250 kbit/s, with a maximum driver output slew rate of 30 V/µs. Flexible power management control options are available. The auto-powerdown feature disables the driver and charge pump when the receiver is disconnected or the remote driver is powered down. The driver can be manually enabled or disabled. The INVALID output goes low when the receiver input is unconnected or the power is off.
Applications
- Battery-powered, handheld, and portable devices
- Notebooks and laptop computers
- Mobile phones and wireless devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TRSF3221ECPWR#C2671483TI · TSSOP-16 | TI | TSSOP-16 | 1 | ₹353.07 · 1 in stock | View |
 | MAX3221EEUE+T#C155173MAXIM · TSSOP-16 | MAXIM | TSSOP-16 | 20 | ₹484.15 · 20 in stock | View |
 | MAX3221EIPWR#C484736TI · TSSOP-16 | TI | TSSOP-16 | 5,855 | ₹171.88 · 5,855 in stock | View |
 | MAX3226EEUE+#C7451431MAXIM · TSSOP-16 | MAXIM | TSSOP-16 | 5 | ₹999.51 · 5 in stock | View |
 | MAX3221CPWR#C109444TI · TSSOP-16 | TI | TSSOP-16 | 15,774 | ₹100.31 · 15,774 in stock | View |
