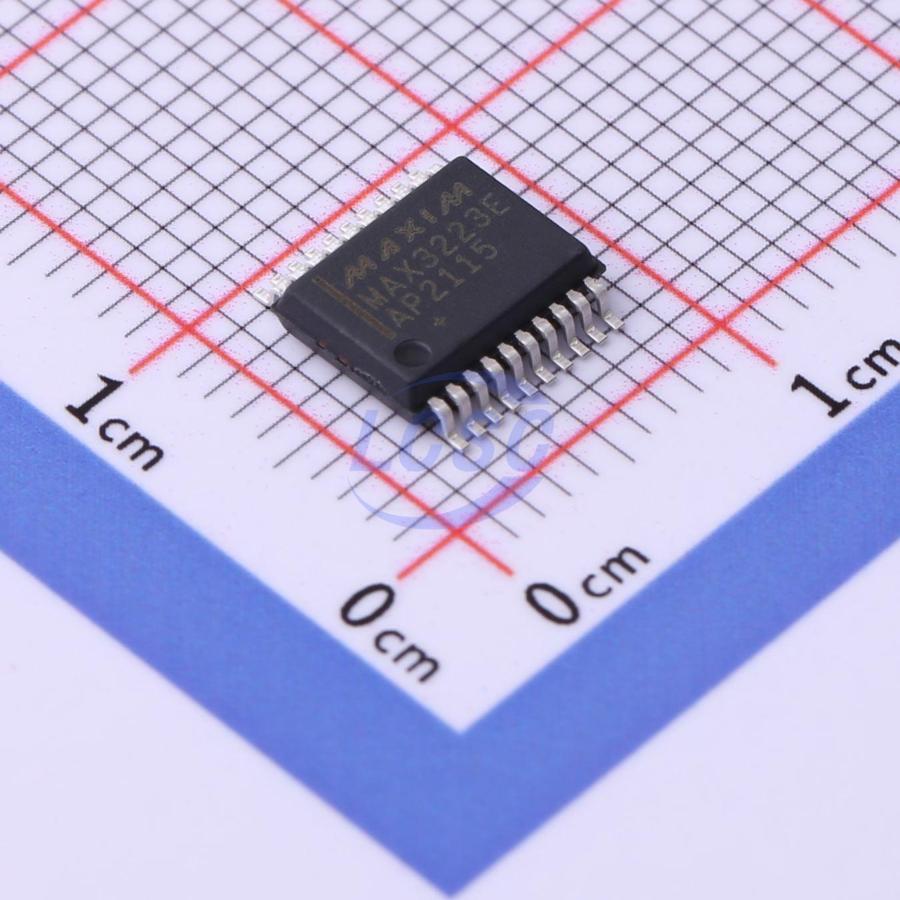

MAX3223EAP+T

The MAX3221/MAX3223/MAX3243 achieve 1µA supply current with Maxim’s revolutionary AutoShutdown feature. When the MAX3221/MAX3223/MAX3243 do not sense a valid signal level on their receiver inputs, the onboard power supply and drivers shut down. This occurs if the RS - 232 cable is disconnected or if the transmitters of the connected peripheral are turned off. The system turns on again when a valid level is applied to any RS - 232 receiver input. The MAX3221/MAX3223/MAX3243 require only 0.1µF capacitors in 3.3V operation, and can operate from input voltages ranging from +3.0V to +5.5V. A proprietary, high - efficiency, dual charge - pump power supply and a low - dropout transmitter combine to deliver true RS - 232 performance from a single +3.0V to +5.5V supply. The MAX3221 is a 1 - driver/1 - receiver 16 - pin SSOP version of the 20 - pin 2 - driver/2 - receiver MAX3223. The MAX3243 is a 3 - driver/5 - receiver with a complementary always - active receiver for external monitoring in a variety of 28 pin packages.

Applications

• Battery - Powered Equipment
• Hand - Held Equipment
• Peripherals
• Portable Diagnostics Equipment

Key features

• Integrated Charge Pump Circuitry Simplifies Power Requirements
• Eliminates the Need for a ±12 Supply
• Operation From a Single +3.3V or +5V Supply
• 1µA Supply Current in Shutdown Mode Saves Power
• AutoShutdown Feature is Enabled After No Activity on Receiver Inputs for 30µs
• Software Control Option for Shutdown
