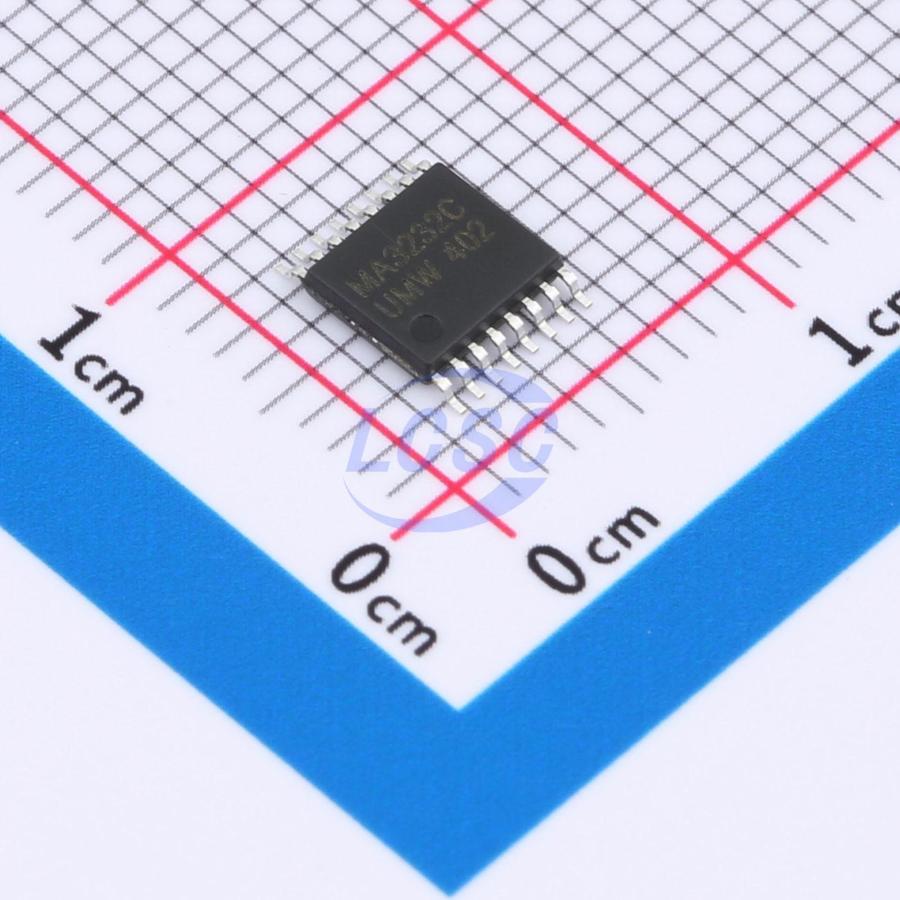

MAX3232CPWR(UMW)
Transceiver 3V~5.5V 250Kbps TSSOP-16 Drivers, Receivers, Transceivers RoHS
TSSOP-16ROHS CompliantActive
MAX3232 3.0V to 5.5V Low Power Multichannel RS-232 Line Transceivers
- Manufacturer
- UMW
- Manufacturer part #
- MAX3232CPWR(UMW)
- Store part #
- C22449674
- Package / case
- TSSOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,940 in stock
#C22449674
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.28 | ₹216.40 |
| 50+ | ₹34.33 | ₹1,716.50 |
| 150+ | ₹30.51 | ₹4,576.50 |
| 500+ | ₹25.72 | ₹12,860.00 |
| 2,500+ | ₹23.59 | ₹58,975.00 |
| 4,000+ | ₹22.32 | ₹89,280.00 |
5 × ₹43.28
₹216.40
excl. GST
₹255.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
MAX3232CPWR(UMW)
₹216.40 for 5 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- -20℃~+85℃
- ESD Protect
- ±8kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 0.3mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.238 g
Overview
UMW MAX3232 features two receivers, two drivers, and a dual charge pump circuit. The device complies with TIA/EIA-232-F requirements, providing an electrical interface between asynchronous communication controllers and serial port connectors. The charge pump and four small external capacitors enable operation from a single 3.0V to 5.5V supply. The device supports data signaling rates up to 250kbit/s, with a maximum driver output slew rate of 35V/μs.
Key features
- RS-232 I/O pins with over ±8KV ESD (Human Body Model) protection
- Compliant with TIA/EIA-232-F and ITU V.28 standards
- Operates from 3.0V to 5.5V VCC supply
- Data rate up to 250kbit/s
- Two drivers and two receivers
- External capacitors: 4×0.1μF
- Accepts 5.0V logic inputs with 3.3V supply
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX3232IPWR(UMW)#C22449673UMW · TSSOP-16 | UMW | TSSOP-16 | 10,610 | ₹49.61 · 10,610 in stock | View |
 | ST3232EBTR(UMW)#C22449675UMW · TSSOP-16 | UMW | TSSOP-16 | 2,195 | ₹41.87 · 2,195 in stock | View |
