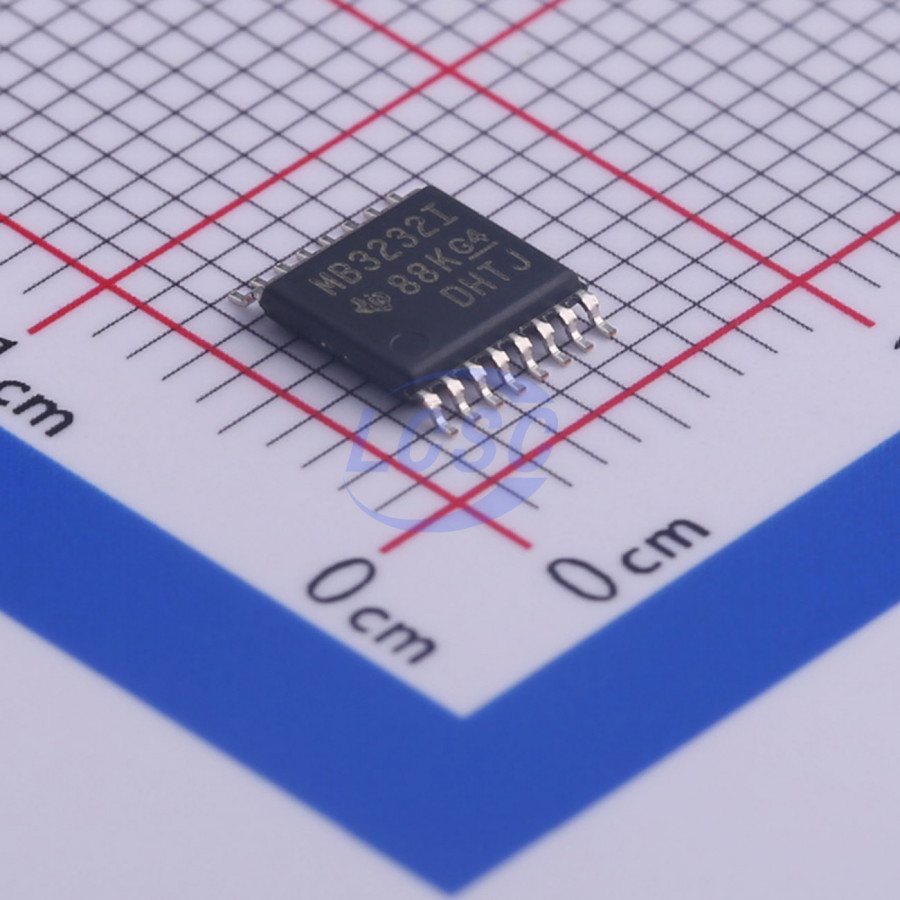

MAX3232EIPWRQ1
Transceiver 3V~5.5V 250Kbps TSSOP-16 Drivers, Receivers, Transceivers RoHS
TSSOP-16ROHS CompliantActive
3-V TO 5.5-V MULTICHANNEL RS-232 LINE DRIVER/RECEIVER WITH ±15-kV IEC ESD PROTECTION
- Manufacturer
- TI
- Manufacturer part #
- MAX3232EIPWRQ1
- Store part #
- C408975
- Package / case
- TSSOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,521 in stock
#C408975
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹239.74 | ₹239.74 |
| 10+ | ₹215.85 | ₹2,158.50 |
| 30+ | ₹199.12 | ₹5,973.60 |
| 100+ | ₹183.71 | ₹18,371.00 |
| 500+ | ₹176.77 | ₹88,385.00 |
| 1,000+ | ₹173.72 | ₹1,73,720.00 |
1 × ₹239.74
₹239.74
excl. GST
₹282.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
MAX3232EIPWRQ1
₹239.74 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Automatic level shifting;Short-Circuit Protection
- Number of Receivers
- 2
- Quiescent Supply Current
- 0.3mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.097 g
Overview
The MAX3232E device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV IEC ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The device operates at data signaling rates up to 250 kbit/s and a maximum of 30-V/μs driver output slew rate.
Key features
- Qualified for Automotive Applications
- Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards
- Operates With 3-V to 5.5-V VCC Supply
- Operates up to 250 kbit/s
- Two Drivers and Two Receivers
- Low Standby Current: 300 μA Typical
- External Capacitors: 4×0.1 μF
- Accepts 5-V Logic Input With 3.3-V Supply Pin Compatible to Alternative High-Speed Pin-Compatible Device (1 Mbit/s): SNx5C3232
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX3232IPWR#C113205TI · TSSOP-16 | TI | TSSOP-16 | 24,623 | ₹60.47 · 24,623 in stock | View |
 | SP3232EBEY-L/TR#C132106MaxLinear · TSSOP-16 | MaxLinear | TSSOP-16 | 12,194 | ₹55.49 · 12,194 in stock | View |
 | ICL3232EIV-16Z-T#C152391RENESAS · TSSOP-16 | RENESAS | TSSOP-16 | 55 | ₹559.63 · 55 in stock | View |
 | ICL3232IVZ#C1543929RENESAS · TSSOP-16 | RENESAS | TSSOP-16 | 14 | ₹338.75 · 14 in stock | View |
 | TRS3232EIPWR#C2652868TI · TSSOP-16 | TI | TSSOP-16 | 886 | ₹106.05 · 886 in stock | View |
