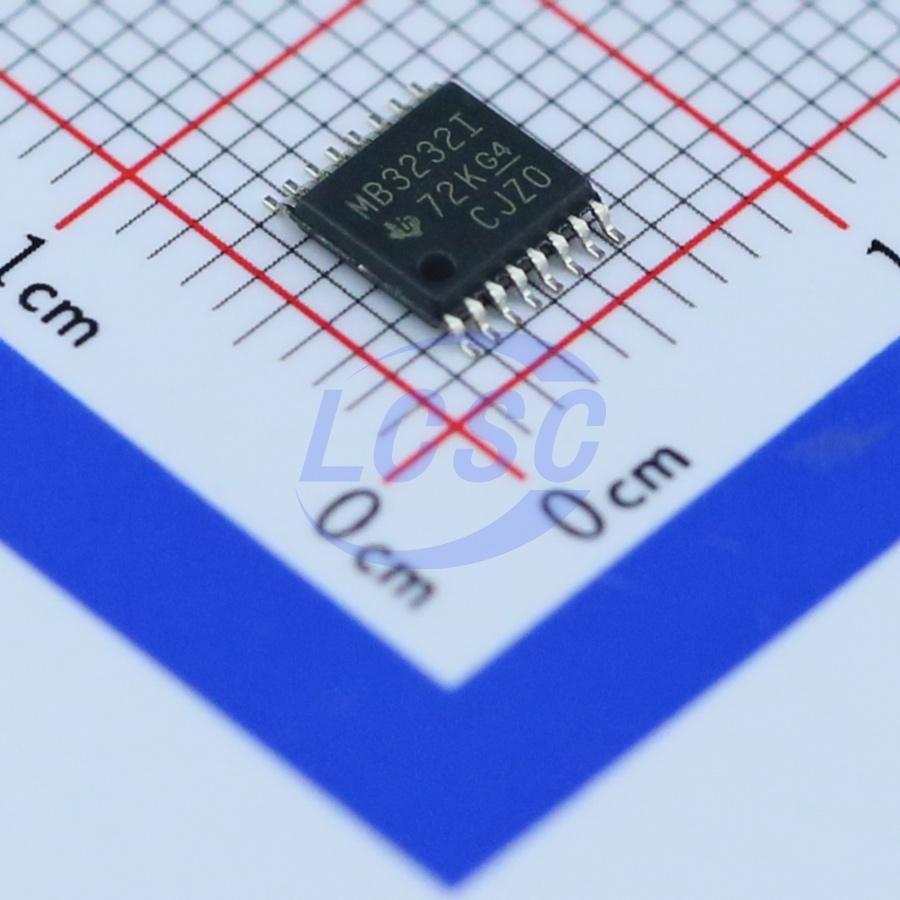

MAX3232IPWR

The MAX3232 device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection terminal to terminal (serialport connection terminals, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signaling rates up to 250 kbit/s and a maximum of 30-V/μs driver output slew rate.

Applications

• Battery-Powered Systems
• PDAs
• Notebooks
• Laptops
• Palmtop PCs
• Hand-Held Equipment

Key features

• RS-232 Bus-Terminal ESD Protection Exceeds ±15 kV Using Human-Body Model (HBM)
• Meets or Exceeds the Requirements of TIA/EIA 232-F and ITU V.28 Standards
• Operates With 3-V to 5.5-V Supply
• Operates up to 250 kbit/s
• Two Drivers and Two Receivers
• Low Supply Current: 300 μA Typical
• External Capacitors: 4×0.1 μF
• Accepts 5-V Logic Input With 3.3-V Supply
• Alternative High-Speed Terminal-Compatible Devices (1 Mbit/s) SN65C3232 (-40°C to 85°C), SN75C3232 (0°C to 70°C)
