MaxLinear

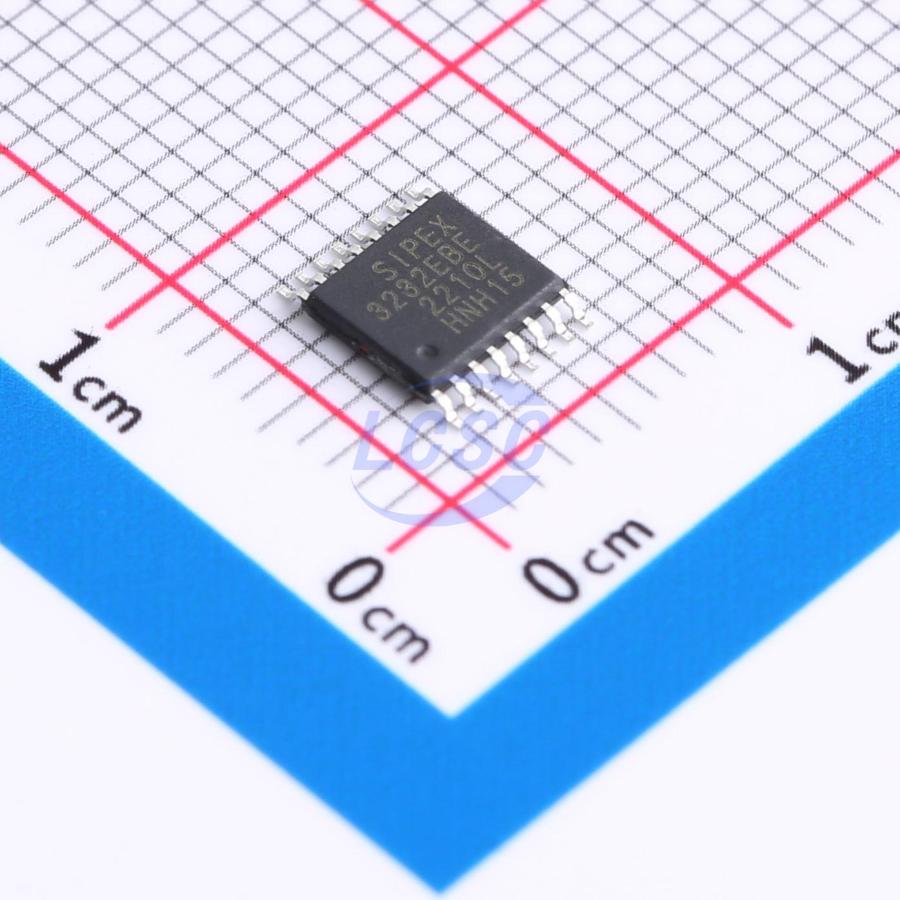

SP3232EBEY-L/TR

Transceiver 3V~5.5V 250Kbps TSSOP-16 Drivers, Receivers, Transceivers RoHS

TSSOP-16ROHS CompliantActive

True +3.0V to +5.5V RS-232 Transceivers

Manufacturer: MaxLinear
Manufacturer part #: SP3232EBEY-L/TR
Store part #: C132106
Package / case: TSSOP-16
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

12,534 in stock

#C132106

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
2+	₹55.49	₹110.98
20+	₹43.53	₹870.60
60+	₹38.30	₹2,298.00
200+	₹31.34	₹6,268.00
1,000+	₹28.51	₹28,510.00
2,500+	₹26.76	₹66,900.00

Quantity (min 2, multiples of 2)

2 × ₹55.49

₹110.98

excl. GST

₹130.96 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SP3232EBEY-L/TR

₹110.98 for 2 + GST

Specifications

Type: Transceiver
Voltage - Supply: 3V~5.5V
Data Rate: 250Kbps
Operating Temperature: -40℃~+85℃
ESD Protect: ±15kV
charge pump: Yes
Number of Drivers: 2
Number of Receivers: 2
Quiescent Supply Current: 0.3mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 2 (multiples of 2)
Unit weight: 0.06 g

Overview

The SP3222EB/SP3232EB series is an RS-232 transceiver solution intended for portable or hand-held applications such as notebook or laptop computers. The SP3222EB/SP3232EB series has a high-efficiency, charge-pump power supply that requires only 0.1μF capacitors in 3.3V operation. This charge pump allows the SP3222EB/SP3232EB series to deliver true RS-232 performance from a single power supply ranging from +3.0V to +5.5V. The SP3222EB/ SP3232EB are 2-driver/2-receiver devices. The ESD tolerance of the SP3222EB/SP3232EB devices is over +/−15kV for both Human Body Model and IEC61000-4-2 Air discharge test methods. The SP3222EB device has a low-power shutdown mode where the devices' driver outputs and charge pumps are disabled. During shutdown, the supply current falls to less than 1μA.

Applications

notebook or laptop computers
battery-powered, portable, or hand-held applications
notebook or palmtop computers
portable or hand-held applications

Key features

Meets true EIA/TIA-232-F Standards from a +3.0V to +5.5V power supply
250kbps Transmission Rate Under Load
1μA Low Power Shutdown with Receivers active (SP3222EB) Interoperable with RS-232 down to a +2.7V power source
Enhanced ESD Specifications: ±15kV Human Body Model ±15kV IEC61000-4-2 Air Discharge ±8kV IEC61000-4-2 Contact Discharge

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
MAX3232IPWR#C113205TI · TSSOP-16	TI	TSSOP-16	30,447	₹60.41 · 30,447 in stock	View
ICL3232EIV-16Z-T#C152391RENESAS · TSSOP-16	RENESAS	TSSOP-16	55	₹559.63 · 55 in stock	View
ICL3232IVZ#C1543929RENESAS · TSSOP-16	RENESAS	TSSOP-16	14	₹338.75 · 14 in stock	View
TRS3232EIPWR#C2652868TI · TSSOP-16	TI	TSSOP-16	886	₹106.05 · 886 in stock	View
TRS3232IPWR#C2877034TI · TSSOP-16	TI	TSSOP-16	3,477	₹101.91 · 3,477 in stock	View
