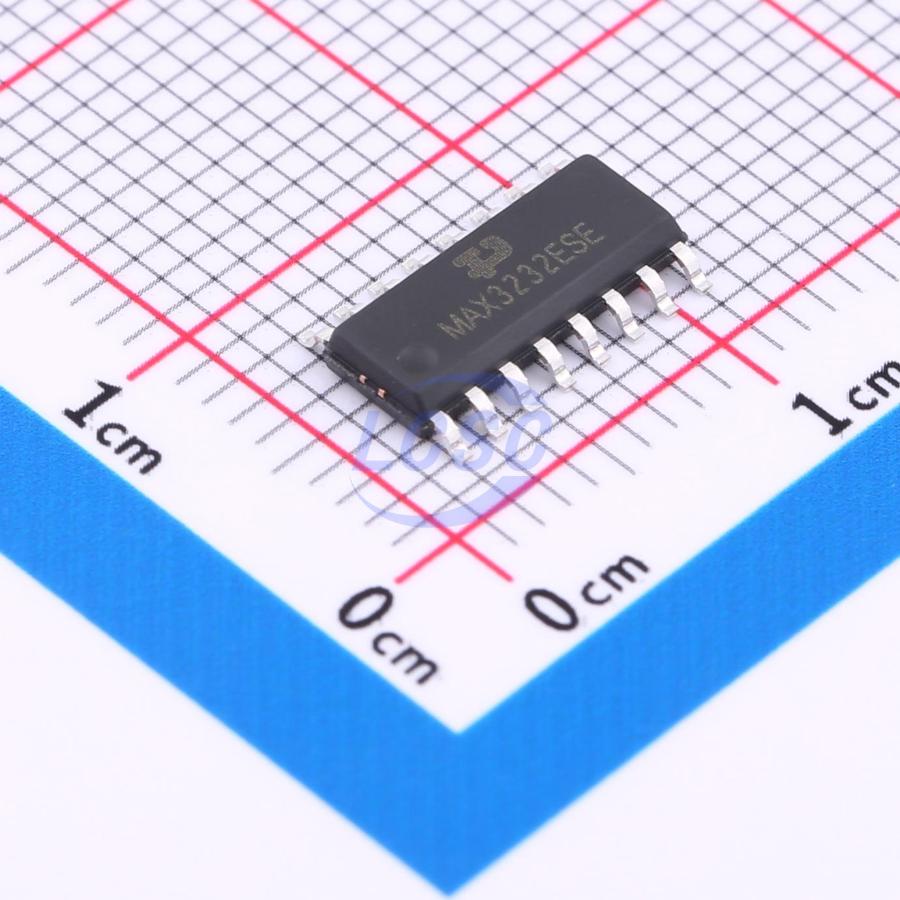

MAX3232ESE-TP
Transceiver 3V~5.5V 250Kbps SOP-16 Drivers, Receivers, Transceivers
SOP-16RoHSActive
3V to 5.5V 250kbps RS-232 Transceivers
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MAX3232ESE-TP
- Store part #
- C19268177
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,029 in stock
#C19268177
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹42.24 | ₹42.24 |
| 10+ | ₹37.34 | ₹373.40 |
| 30+ | ₹35.21 | ₹1,056.30 |
| 100+ | ₹32.43 | ₹3,243.00 |
| 500+ | ₹31.36 | ₹15,680.00 |
| 1,000+ | ₹30.51 | ₹30,510.00 |
1 × ₹42.24
₹42.24
excl. GST
₹49.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX3232ESE-TP
₹42.24 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- -40℃~+125℃
- ESD Protect
- ±12kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 1.5mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.274 g
Overview
The MAX3232ESE consists of two drivers, two receivers, and a dua charge-pump circuit with ± 12 kV IEC 61000-4-2 Contact Discharge ESD protection. The MAX3232ESE meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3 V to 5.5 V supply. The device operates at data signaling rates up to 250 kbps. The MAX3232ESE is available in SOP16 package.
Applications
- Battery-Powered Equipment
- Industry Human Machine Interface
- Notebook, Computers
- Printers
Key features
- ESD protection for RS-232 Bus Pins ±12 kV (IEC61000-4-2, Contact Discharge) ± 15 kV (IEC61000-4-2, Air-Gap Discharge)
- Meets the Requirements of TIA/EIA-232-F standard
- Wide Power Supply Range: Single +3 V to +5.5 V
- Operates up to 250 kbps
- Two Drivers and Two Receivers
- External Capacitors: 4 × 0.1 μF
- Accepts 5V Logic Input With 3.3 V Supply
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP3232EEN#C19268175TECH PUBLIC · SOP-16 | TECH PUBLIC | SOP-16 | 3,500 | ₹46.57 · 3,500 in stock | View |
 | ST3232BDR#C19268176TECH PUBLIC · SOP-16 | TECH PUBLIC | SOP-16 | 2,469 | ₹67.86 · 2,469 in stock | View |
 | MAX3232IDR#C19268178TECH PUBLIC · SOP-16 | TECH PUBLIC | SOP-16 | 2,200 | ₹56.00 · 2,200 in stock | View |
 | MAX3232ID#C19268179TECH PUBLIC · SOP-16 | TECH PUBLIC | SOP-16 | 1,382 | ₹65.70 · 1,382 in stock | View |
 | MAX3232CSE#C19268180TECH PUBLIC · SOP-16 | TECH PUBLIC | SOP-16 | 2,539 | ₹69.39 · 2,539 in stock | View |
