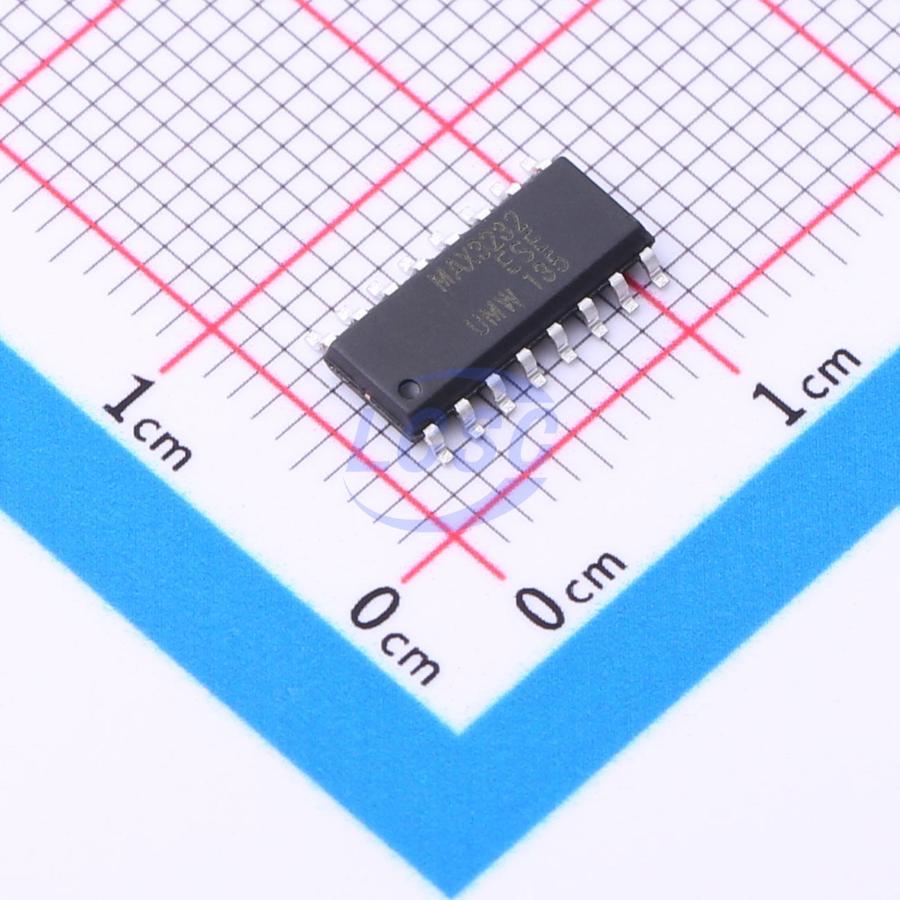

MAX3232ESE(UMW)
Transceiver 250Kbps SOP-16 Drivers, Receivers, Transceivers RoHS
SOP-16ROHS CompliantActive
LOW POWER MULTICHANNEL RS-232 LINE TRANSCEIVERS USING FOR EXTERNAL CAPACITORS
- Manufacturer
- UMW
- Manufacturer part #
- MAX3232ESE(UMW)
- Store part #
- C2904738
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21,924 in stock
#C2904738
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹50.84 | ₹50.84 |
| 10+ | ₹38.18 | ₹381.80 |
| 30+ | ₹32.03 | ₹960.90 |
| 100+ | ₹26.60 | ₹2,660.00 |
| 500+ | ₹25.16 | ₹12,580.00 |
| 1,000+ | ₹24.24 | ₹24,240.00 |
1 × ₹50.84
₹50.84
excl. GST
₹59.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX3232ESE(UMW)
₹50.84 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~3.6V;4.5V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- -40℃~+105℃
- ESD Protect
- ±8kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 1mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.287 g
Overview
The UMW MAX3232ESE has two receivers and two drivers, and a dual charge-pump circuit. The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3.0V to 5.5V supply. The device operates at data signaling rates up to 250kbit/s and a maximum of 35V/μs driver output slew rate.
Key features
- Exceeds ±8KV ESD Protection(HBM) for RS-232 I/O Pins
- Meets the Requirements of TIA/EIA-232-F and ITU V.28 Standards
- Operates With 3.0V to 5.5V VCC Supply
- Operates Up To 250kbit/s Data Rate
- Two Drivers and Two Receivers
- External Capacitors 4×0.1 μF
- Accepts 5.0V Logic Input With 3.3V Supply
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ST3232BDR(UMW)#C2987706UMW · SOP-16 | UMW | SOP-16 | 4,690 | ₹41.21 · 4,690 in stock | View |
