MSKSEMI

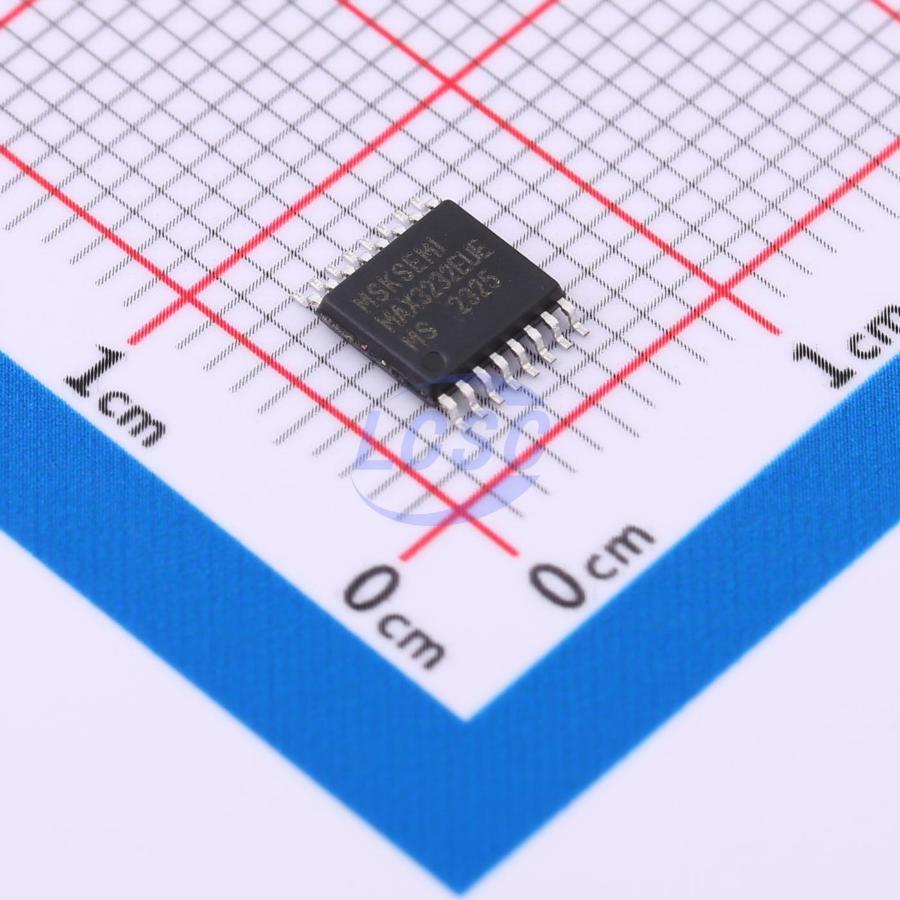

MAX3232EUE-MS

Transceiver 3V~5.5V 120Kbps TSSOP-16 Drivers, Receivers, Transceivers

TSSOP-16RoHSActive

MAX3232E

Manufacturer: MSKSEMI
Manufacturer part #: MAX3232EUE-MS
Store part #: C7434437
Package / case: TSSOP-16
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,167 in stock

#C7434437

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹121.94	₹121.94
10+	₹98.71	₹987.10
30+	₹87.11	₹2,613.30
100+	₹75.70	₹7,570.00
500+	₹65.59	₹32,795.00
1,000+	₹61.94	₹61,940.00

Quantity (min 1)

1 × ₹121.94

₹121.94

excl. GST

₹143.89 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

MAX3232EUE-MS

₹121.94 for 1 + GST

Specifications

Type: Transceiver
Voltage - Supply: 3V~5.5V
Data Rate: 120Kbps
Operating Temperature: -40℃~+85℃
ESD Protect: ±15kV
charge pump: Yes
Number of Drivers: 2
Number of Receivers: 2
Quiescent Supply Current: 2mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.167 g

Overview

MAX3232E is a 3.3V-powered, dual-channel, high-ESD-protected, low-power RS-232 transceiver, fully compliant with TIA/EIA-232 standards. It integrates two drivers and two receivers with enhanced ESD protection, achieving protection levels of HBM ESD 15kV and above, and 8kV IEC-4100-4-2 contact discharge. Powered by a 3.3V supply, the charge pump requires only four external 1μF capacitors to support error-free data transmission at a minimum of 120Kbps, with independent enable and shutdown capability. Each driver and receiver can be used independently.
