MAXIMDatasheet (PDF)

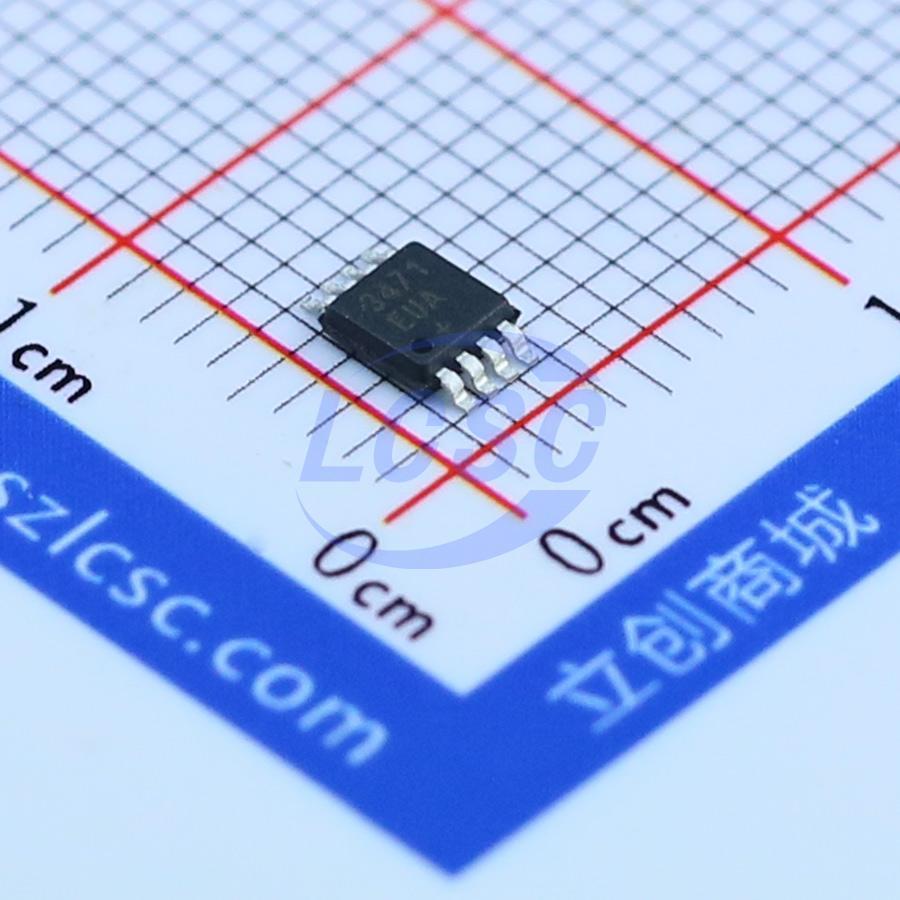

MAX3471EUA+T
2.5V~5.5V Transceiver 64Kbps MSOP-8 Drivers, Receivers, Transceivers RoHS
MSOP-8ROHS3 CompliantActive
RS-485/RS-422, Differential Transceiver for Battery-Powered Systems
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX3471EUA+T
- Store part #
- C27462
- Package / case
- MSOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,244 in stock
#C27462
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹325.39 | ₹325.39 |
| 10+ | ₹284.34 | ₹2,843.40 |
| 30+ | ₹255.44 | ₹7,663.20 |
| 100+ | ₹228.95 | ₹22,895.00 |
| 500+ | ₹216.79 | ₹1,08,395.00 |
| 1,000+ | ₹212.01 | ₹2,12,010.00 |
1 × ₹325.39
₹325.39
excl. GST
₹383.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX3471EUA+T
₹325.39 for 1 + GST
Specifications
- Voltage - Supply
- 2.5V~5.5V
- Type
- Transceiver
- Data Rate
- 64Kbps
- Operating Temperature
- -40℃~+85℃
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 1.6uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.135 g
Overview
The MAX3471 half- duplex transceiver is intended for lithium battery- powered RS- 485/RS- 422 applications. It draws only 1.6μA (typical) supply current from a 3.6V supply with the receiver enabled and the driver disabled. Its wide 2.5V to 5.5V supply voltage guarantees operation over the lifetime of a lithium battery. This device features true fail- safe operation that guarantees a logic- high receiver output when the receiver inputs are open or shorted. This means that the receiver output will be a logic high if all transmitters on a terminated bus are disabled (high impedance). The MAX3471 has a 1/8- unit load input resistance. When driver outputs are enabled and pulled above VCC or below GND, internal circuitry prevents battery backcharging. The MAX3471 is available in an 8- pin μMAX package.
Applications
- Remote Meter Reading
- Battery- Powered Differential Communications
- Level Translators
Key features
- +1.6μA Supply Current with Receiver Enabled
- +2.5V to +5.5V Single- Supply Operation
- True Fail- Safe Receiver Input
- Available in μMAX Package
- 1/8- Unit- Load Receiver Input
- - 7V to +10V Common- Mode Input Voltage Range
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX3471EUA+#C400153MAXIM · MSOP-8 | MAXIM | MSOP-8 | 70 | ₹395.85 · 70 in stock | View |
 | WS3471EEUA#C22381389NJGW · MSOP-8 | NJGW | MSOP-8 | 333 | ₹201.86 · 333 in stock | View |
 | COS3471MR-3.3#C52021088COSINE · MSOP-8 | COSINE | MSOP-8 | 444 | ₹80.57 · 444 in stock | View |
