HGSEMI

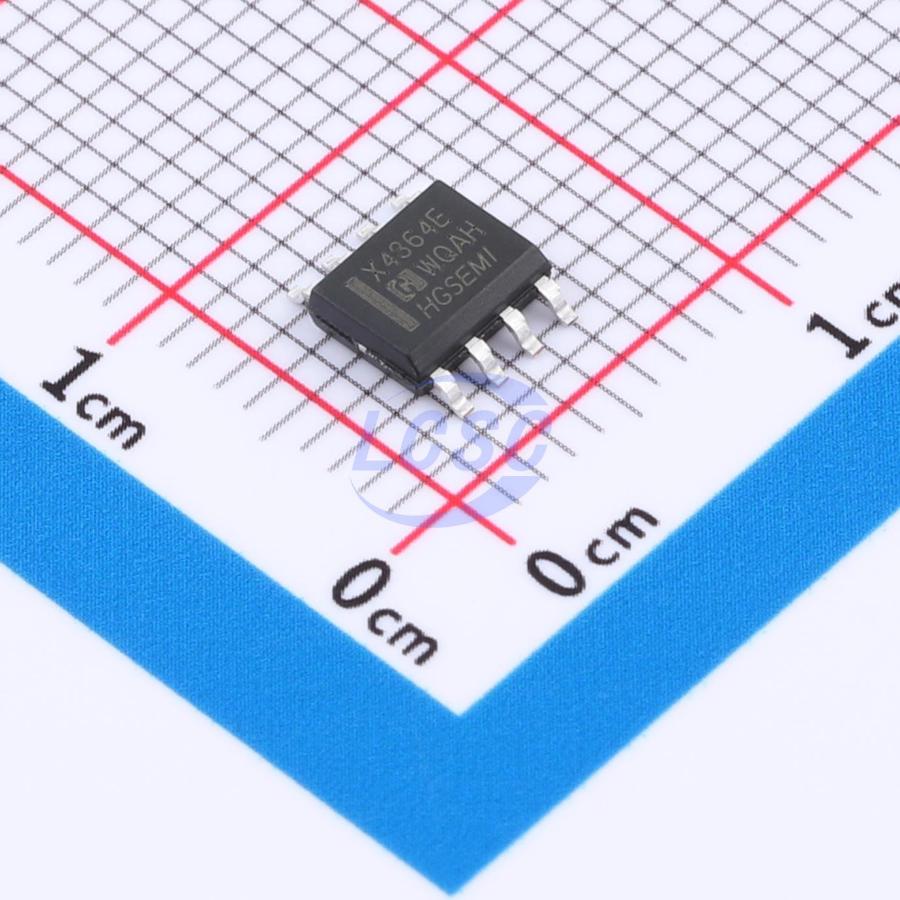

MAX4364EM/TR

2mA 1.9V~5.5V 1-Channel Class AB SOP-8 Audio Amplifiers

SOP-8RoHSActive

Manufacturer: HGSEMI
Manufacturer part #: MAX4364EM/TR
Store part #: C49384171
Package / case: SOP-8
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,431 in stock

#C49384171

Stock & price checked 23 h ago

Quantity	Unit price	Pack price
1+	₹39.77	₹39.77
10+	₹34.77	₹347.70
30+	₹32.60	₹978.00
100+	₹29.78	₹2,978.00
500+	₹28.70	₹14,350.00
1,000+	₹28.03	₹28,030.00

Quantity (min 1)

1 × ₹39.77

₹39.77

excl. GST

₹46.93 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

MAX4364EM/TR

₹39.77 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Quiescent Current: 2mA
Voltage - Supply: 1.9V~5.5V
Features: Automatic mute/no-noise switch;Enable/shutdown function
Total Harmonic Distortion + Noise (THD+N): 0.08%
Signal-to-Noise Ratio: 98dB
Speaker Channels: 1-Channel
Output Power: 2.9Wx1@4Ω;1.72Wx1@8Ω
Class: Class AB
Power Supply Rejection Ratio (PSRR): 80dB;70dB

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.077 g

Overview

MAX4364E is a 3W mono Class AB audio power amplifier. It operates over a supply voltage range of 1.9V to 5.5V and features a BTL bridge-tied output configuration. With a 5V supply and a 4Ω load, it delivers an average output power of 3.0W at less than 10% THD. In shutdown mode, the typical quiescent current is below 0.5μA. The device is designed to provide adequate power and high-fidelity audio output, requiring minimal external components with no coupling or bootstrap capacitors at the output. Available in an SOP-8 package to minimize board area, it is ideal for mobile phones and other portable devices employing low-voltage, low-power solutions.

Applications

Mobile phones
Amplifiers and Bluetooth speakers
Radios
GPS devices and dash cams
Voice toys

Key features

Operating voltage range: 1.9V ~ 5.5V
Innovative "switch/transition noise" suppression technology eliminates pop and click noise during power-up and power-down
Output power up to 2.9W at VDD=5V, 4Ω load, 10% THD+N
Output power up to 1.8W at VDD=5V, 8Ω load, 10% THD+N
Shutdown current below 0.5μA
Over-temperature protection
Available in SOP-8 package
