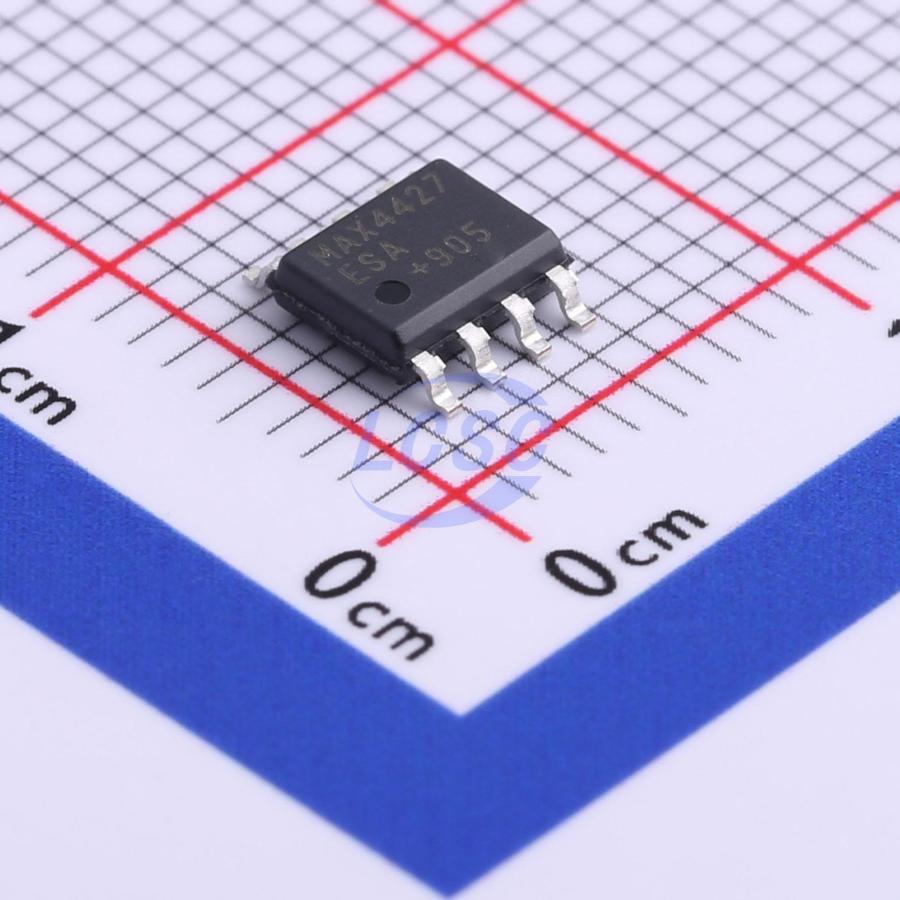

MAX4427ESA+T
4.5V~18V 1.5A 1.5A SO-8 Gate Drivers RoHS
Dual High-Speed 1.5A MOSFET Drivers
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX4427ESA+T
- Store part #
- C559513
- Package / case
- SO-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,352 in stock
#C559513
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹510.18 | ₹510.18 |
| 10+ | ₹443.18 | ₹4,431.80 |
| 30+ | ₹403.50 | ₹12,105.00 |
| 100+ | ₹363.18 | ₹36,318.00 |
| 500+ | ₹344.52 | ₹1,72,260.00 |
| 1,000+ | ₹336.07 | ₹3,36,070.00 |
1 × ₹510.18
₹510.18
excl. GST
₹602.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX4427ESA+T
₹510.18 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 10ns
- High Level Delay Time
- 25ns
- Quiescent Current
- 200uA
- Input Logic Level - High
- 2.4V
- Voltage - Supply
- 4.5V~18V
- Operating Temperature
- -40℃~+85℃
- Current - Output Low(IOL)
- 1.5A
- Rise Time
- 300ps
- Fall Time
- 20ns
- Current - Output High(IOH)
- 1.5A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.116 g
Overview
The MAX4426/MAX4427/MAX4428 are dual monolithic MOSFET drivers designed to translate TTL/CMOS inputs to high voltage/current outputs. The MAX4426 is a dual inverting power MOSFET driver. The MAX4427 is a dual noninverting power MOSFET driver, and the MAX4428 contains one inverting section and one noninverting section. Delay times are nearly independent of VDD (see Typical Operating Characteristics). High-current output drivers rapidly charge and discharge the gate capacitance of even the largest power MOSFETs to within millivolts of the supply rails. This produces the power MOSFETs' minimum on resistance. The MAX4426/ MAX4427/MAX4428's high speed minimizes power losses in switching power supplies and DC-DC converters.
Applications
- Switching Power Supplies
- DC-DC Converters
- Motor Controllers
- Pin-Diode Drivers
- Charge-Pump Voltage Inverters
Key features
- Upgrade for TSC4426/TSC4427/TSC4428
- Lower On Resistance: 4Ω vs. 7Ω
- Shorter Delay Times: tD1 - 10ns vs. 30ns tD2 - 25ns vs. 50ns
- 1.5A Peak Output Current
- Fast Rise and Fall Times: Typically 20ns with 1000pF Load
- Wide Operating Range: 4.5V to 18V
- Low Power Consumption: 1.8mA with Logic 1 Input 200μA with Logic 0 Input
- TTL/CMOS Compatible
- Latchup Protected - Withstand >500mA Reverse Current
- ESD Protected
