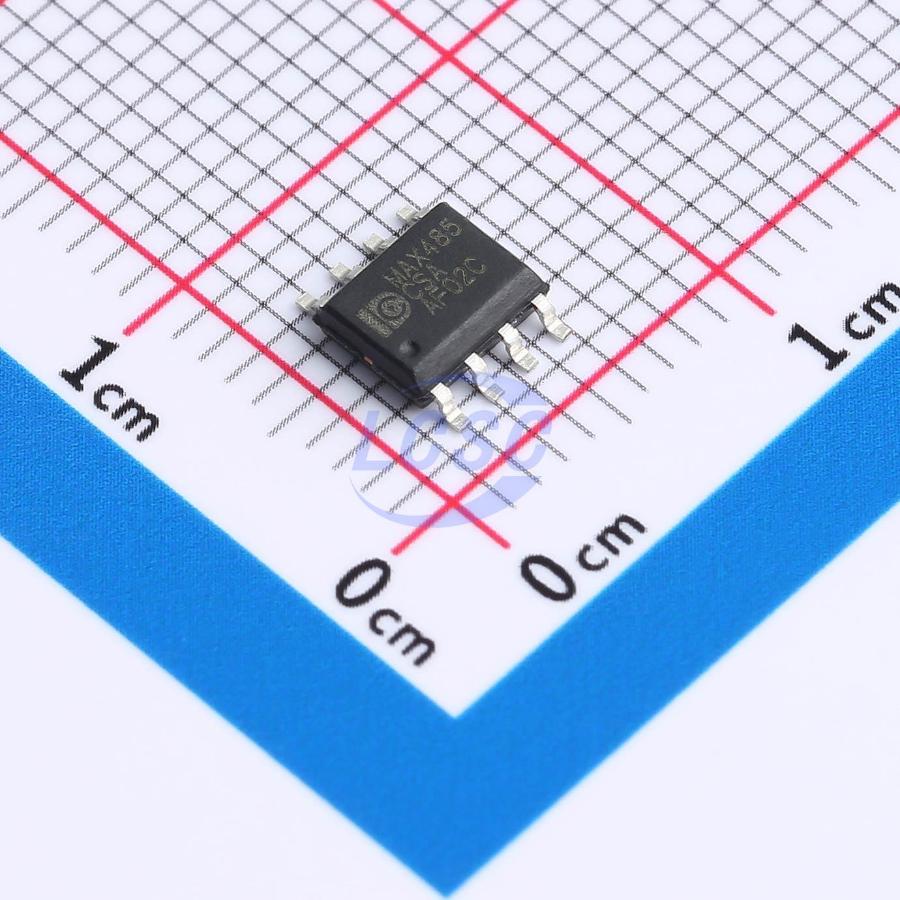

MAX485CSA
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8ROHS CompliantActive
IC TRANSCEIVER HALF 1/1 SOP-8
- Manufacturer
- IDCHIP
- Manufacturer part #
- MAX485CSA
- Store part #
- C42436899
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,515 in stock
#C42436899
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.29 | ₹106.45 |
| 50+ | ₹16.68 | ₹834.00 |
| 150+ | ₹14.71 | ₹2,206.50 |
| 500+ | ₹12.25 | ₹6,125.00 |
| 2,500+ | ₹11.17 | ₹27,925.00 |
| 5,000+ | ₹10.50 | ₹52,500.00 |
5 × ₹21.29
₹106.45
excl. GST
₹125.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX485CSA
₹106.45 for 5 + GST
Specifications
- Voltage - Supply
- 3V~5.5V
- Type
- Transceiver
- Data Rate
- 2.5Mbps
- Number of Nodes
- 128
- Operating Temperature
- 0℃~+85℃
- ESD Protect
- ±5kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection;Thermal shutdown protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 155uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.17 g
Overview
The MAX485CSA is a transceiver IC for RS-485 and RS-422 communication systems, supporting data transmission and reception at rates up to 2.5Mbps. The MAX485CSA is a half-duplex RS-485 interface chip featuring Driver Enable (DE) and Receiver Enable (/RE) control pins. The MAX485CSA's receiver is designed with 1/4 unit load input impedance, allowing up to 128 loads on the bus. The MAX485CSA high-speed transceiver for RS-485/RS-422 communication integrates one driver and one receiver. The MAX485CSA features a slew-rate-limited driver that reduces EMI and reflections caused by improper cable termination, achieving data transmission rates up to 2.5Mbps.
Applications
- Low-power RS485 & RS422 receivers: electricity meters, water meters, gas meters
- Level shifting: access control, security systems
- EMI-resistant transceivers: industrial control LAN
Key features
- Three-state output
- Half-duplex communication ESD protection: Contact discharge: ±5KV, Air discharge: ±5KV (HBM)
- A/B terminal short-circuit protection
- SOP8 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX485ESA#C42436900IDCHIP · SOP-8 | IDCHIP | SOP-8 | 18,905 | ₹21.63 · 18,905 in stock | View |
| SN75176-IDC#C52287005IDCHIP · SOP-8 | IDCHIP | SOP-8 | 2,490 | ₹21.84 · 2,490 in stock | View | |
