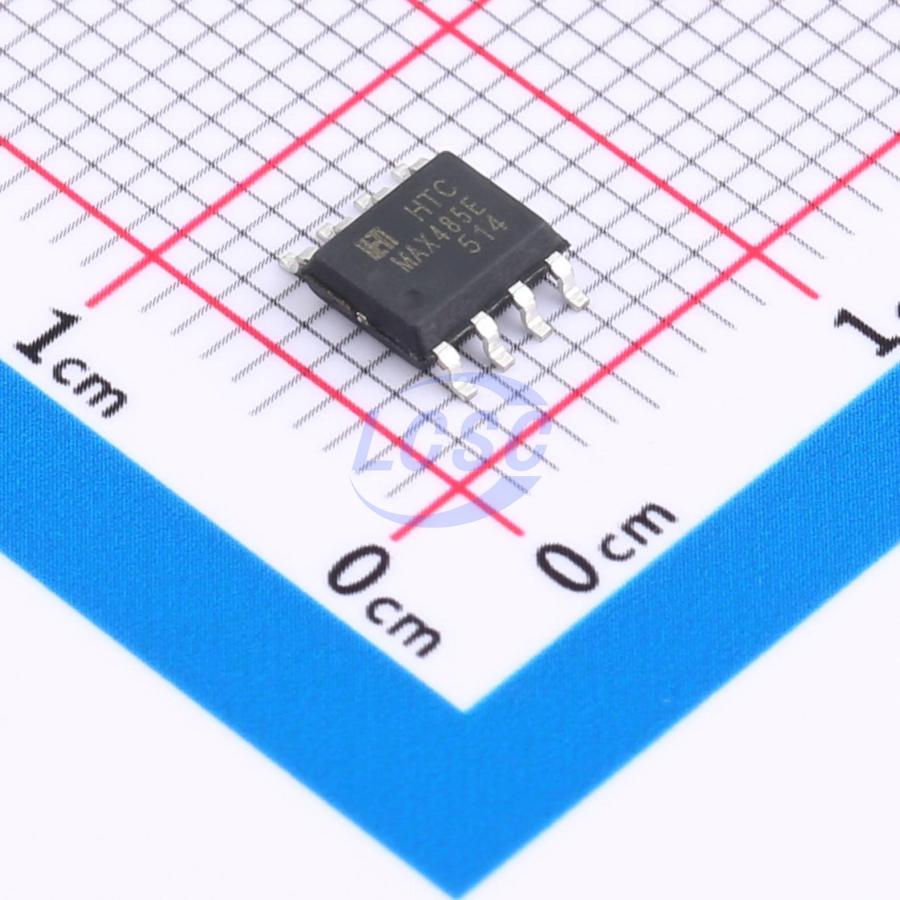

MAX485ED
4.75V~5.25V Transceiver 5Mbps 32 SOP-8 Drivers, Receivers, Transceivers RoHS
SOP-8ROHS CompliantActive
Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceivers
- Manufacturer
- HTC
- Manufacturer part #
- MAX485ED
- Store part #
- C481667
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,970 in stock
#C481667
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.55 | ₹147.75 |
| 50+ | ₹23.24 | ₹1,162.00 |
| 150+ | ₹20.54 | ₹3,081.00 |
| 500+ | ₹17.17 | ₹8,585.00 |
| 2,500+ | ₹15.66 | ₹39,150.00 |
| 5,000+ | ₹14.76 | ₹73,800.00 |
5 × ₹29.55
₹147.75
excl. GST
₹174.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX485ED
₹147.75 for 5 + GST
Specifications
- Voltage - Supply
- 4.75V~5.25V
- Type
- Transceiver
- Data Rate
- 5Mbps
- Number of Nodes
- 32
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±8kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown
- Number of Receivers
- 1
- Quiescent Supply Current
- 1mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.206 g
Overview
The MAX485 is a half-duplex transceiver that meets the specifications of RS-485 and RS-422. Its BiCMOS design allows low power operation without sacrificing performance. The MAX485 meets the requirements of the RS-485 and RS-422 protocols up to 5Mbps underload. The ESD tolerance is more than ±8kV for both Human Body Model and ±15kV for IEC61000-4-2 Air Discharge Method on this device.
Applications
- Low Power RS-485 Systems
- DTE-DCE Interface
- Packet Switching
- Local Area Networks
- Data Concentration
- Data Multiplexers
- Integrated Services Digital Network (ISDN)
Key features
- Single +5V Supply
- Low Power BiCMOS
- Driver/Receiver Enable for Multi-Drop Configurations
- Half-Duplex Versions Available
- Data rate: 5 Mbps
- ESD Specifications - ±15kV IEC61000-4-2 Air Discharge - ±8kV Human Body Model
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN75176M/TR#C512763HGSEMI · SOP-8 | HGSEMI | SOP-8 | 1,840 | ₹13.27 · 1,840 in stock | View |
 | MAX3485ED#C558792HTC · SOP-8 | HTC | SOP-8 | 7,910 | ₹29.68 · 7,910 in stock | View |
 | HSN75176ADR#C22396407HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 895 | ₹35.70 · 895 in stock | View |
 | LTC1484IS8#TRPBF#C675715ADI · SO-8 | ADI | SO-8 | 8 | ₹1,345.01 · 8 in stock | View |
 | SP485EARZ#C50338836HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 195 | ₹33.92 · 195 in stock | View |
